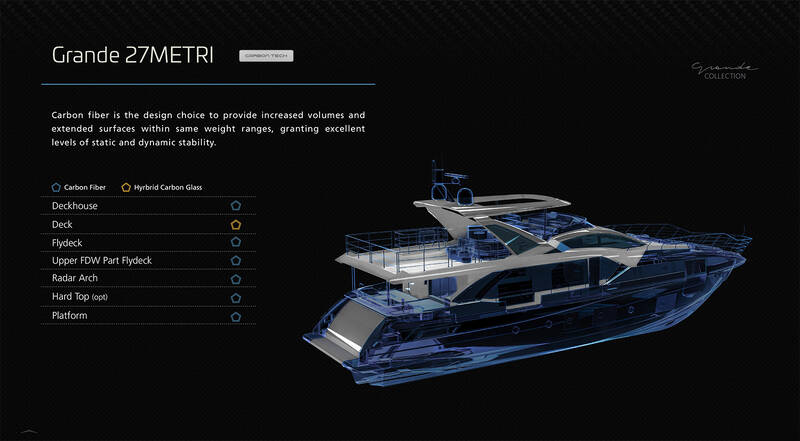

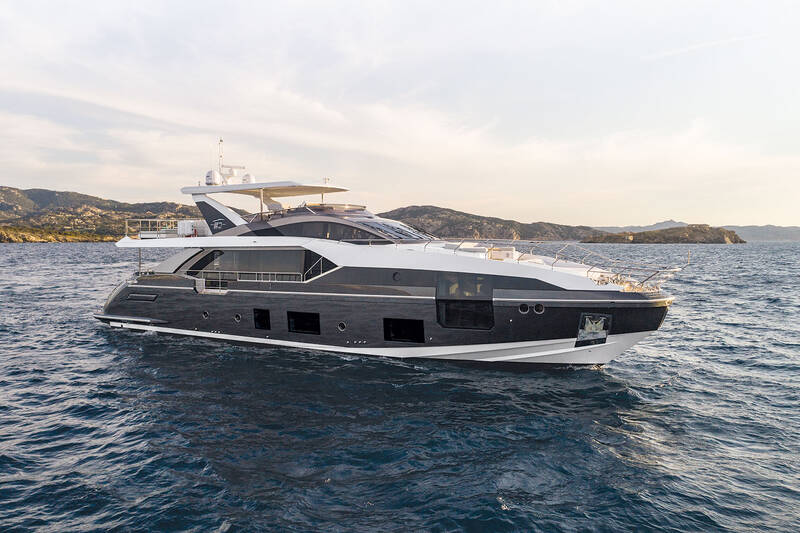

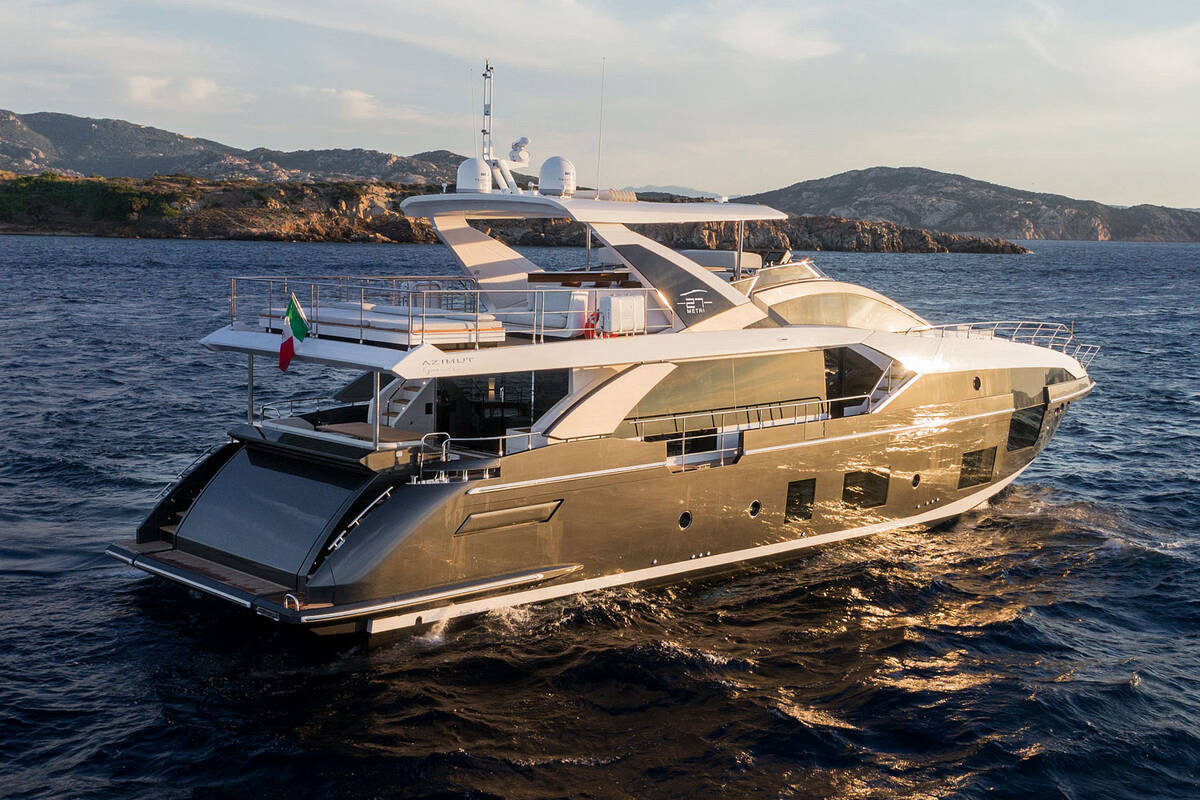

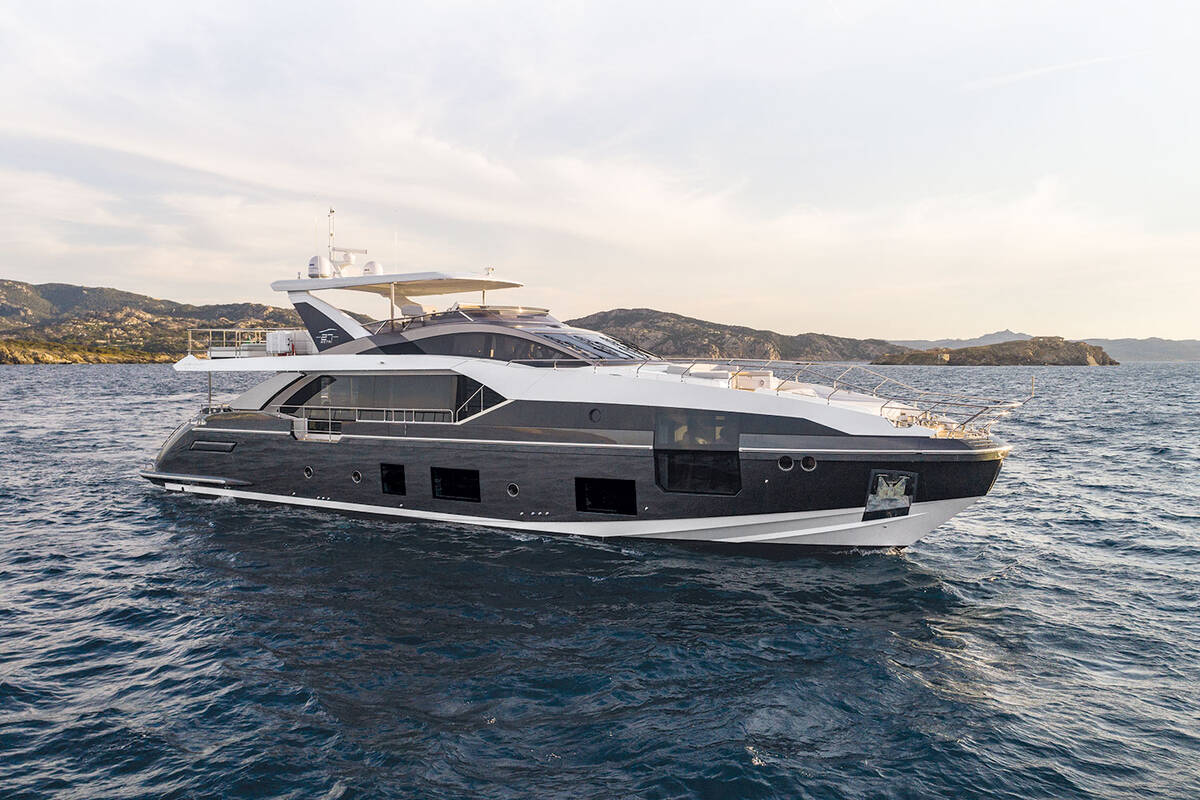

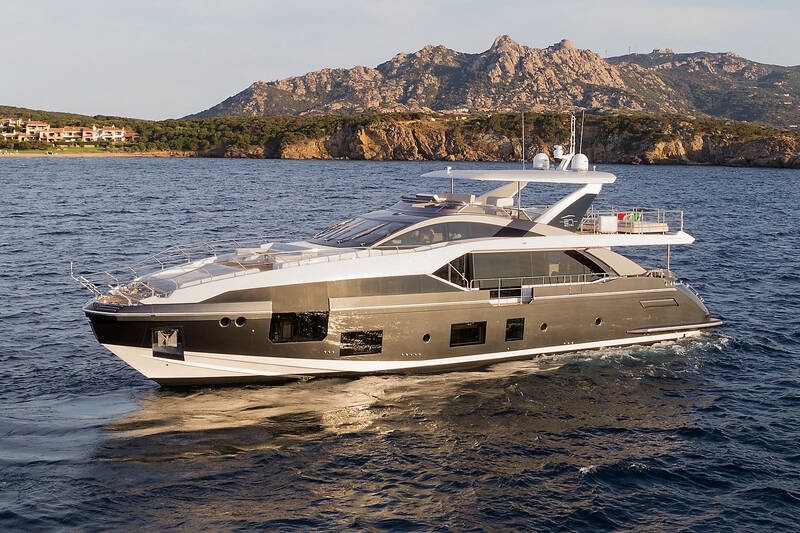

Azimut Grande 27 METRI

Wheelhouse

• Located on the half deck raised from the main deck.
• The wheelhouse is accessible through:
• - internal ladder located in the foyer (starboard side)
• - sliding companion on the flybridge (direct connection between internal wheelhouse and flybridge external wheelhouse)
• The wheelhouse includes:
• - adjustable squab with stainless steel structure and padded cushion
• - storage cabinet, aft, starboard side
• - Leather-covered steering wheel
• - Carpeted floor
• - lacquered ceilings, mullions, and window carters
• - LED technology lighting

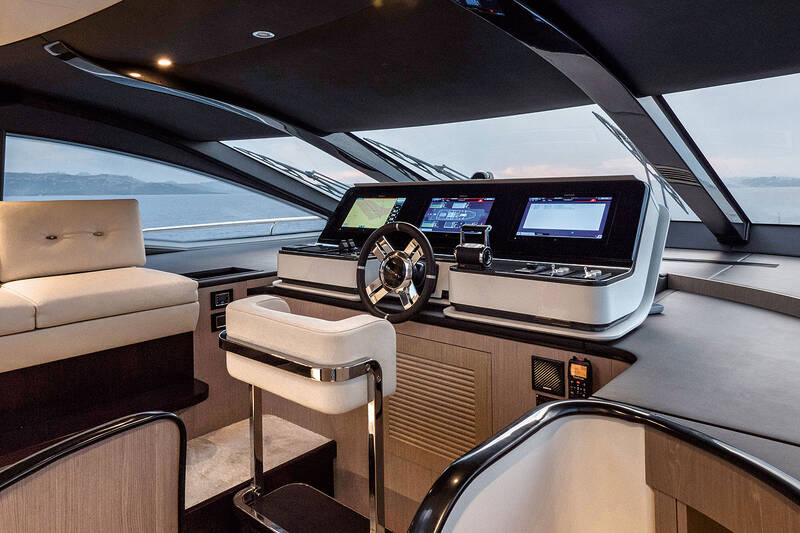

• Internal dashboard consisting of:
• - MAN 7" display for engines
• - Simrad display for:
• >> electronic navigation instruments, BRONZE version

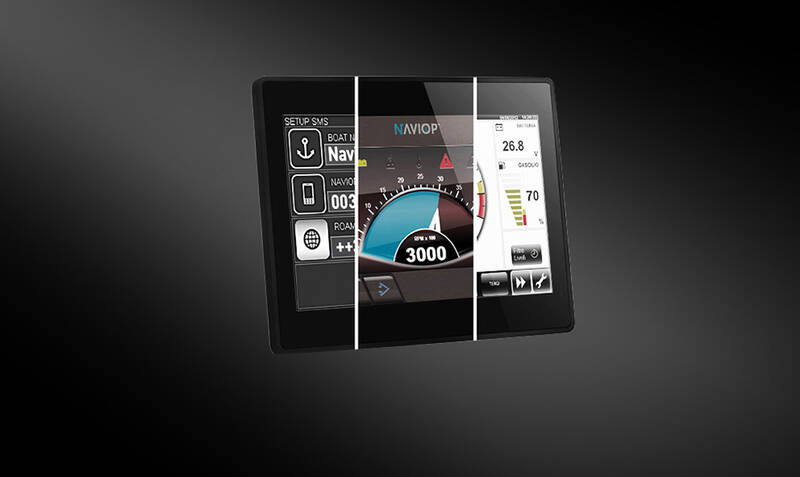

• >> monitoring
• - Engine throttles
• - Communication systems (VHF)
• - magnetic compass
• - Bow thruster controls
• - audible alarm controls

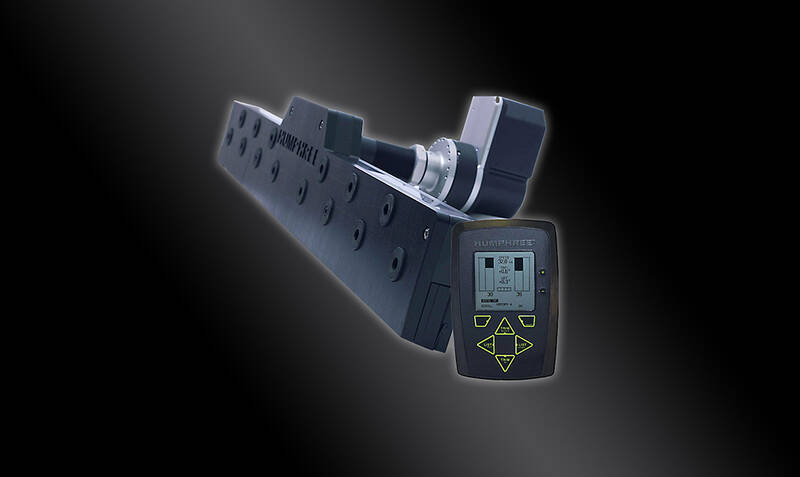

• - Trim tab controls (intruder)
• 12 V socket
• Adjustable air conditioning outlet
• 24 V / 230 V electric panel, located aft, port side
• Emergency panel
• Two-seater sofa, placed longitudinally, on port side of the wheelhouse
• Flybridge access ladder, placed at the center of the yacht

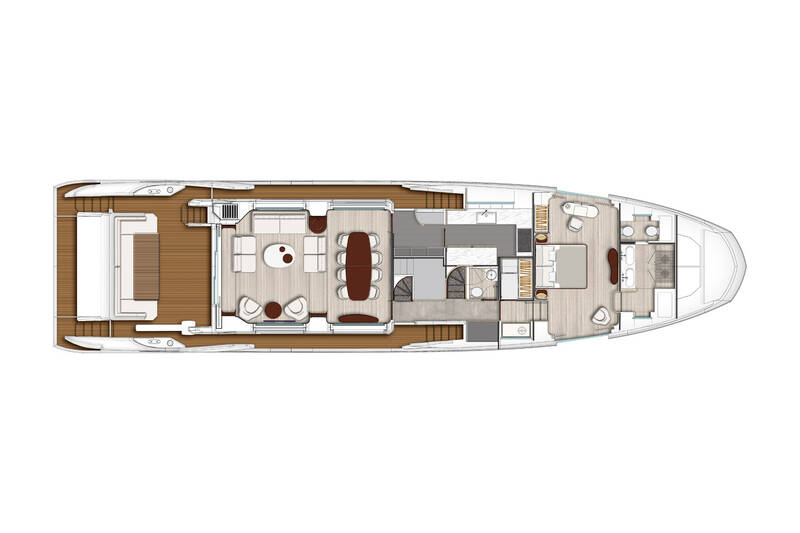

Pantry

• Located on port side of the main deck, this area is accessible through:
• - sliding door for direct access to saloon and dining area
• - side service sliding door connecting to external port walk around
• The pantry includes:
• - Low storage cabinets located on yacht center side, for storage (see general plans)
• - Storage cabinet for crockery located at the bulwark
• - Top above the storage cabinets, to be used as a resting or work surface
• - Wooden flooring
• - LED technology lighting
• - Air conditioning outlet grating

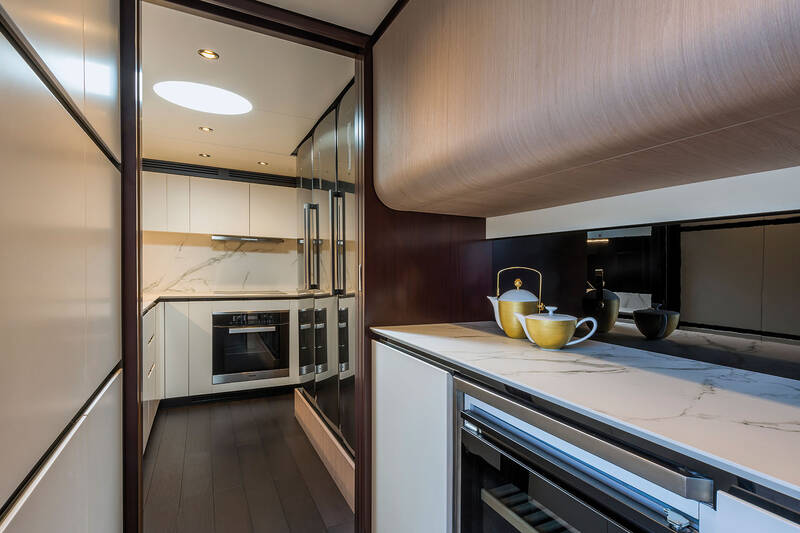

Galley

• Located on port side, the access is through concealed sliding door located forward of the pantry. This layout allows full isolation of this area from the saloon and dining area reserved for the owner and his guests.
• The galley is composed of:
•  419 l (14.8 cu.ft) refrigerator + 247 l (8.7 cu.ft) freezer
•  Stainless steel sink with faucets
•  Extractor hood
•  76 l (2.68 cu.ft) oven
•  Four-burner induction range
•  Flooring in vinyl
•  Composite material worktop
•  Storage wall units on port bulwark
•  LED technology spotlights
•  Sockets
•  Air conditioning outlet grating

Day toilet

• Located in the foyer (starboard side of the main deck), just forward of the stairs leading to the cabins.
• It is composed of:
• Washbasin
• Mixer tap
• Toilet
• Mirror
• Synthetic teak floor
• LED technology lighting
• Air intake fan
• Socket
• Head accessories

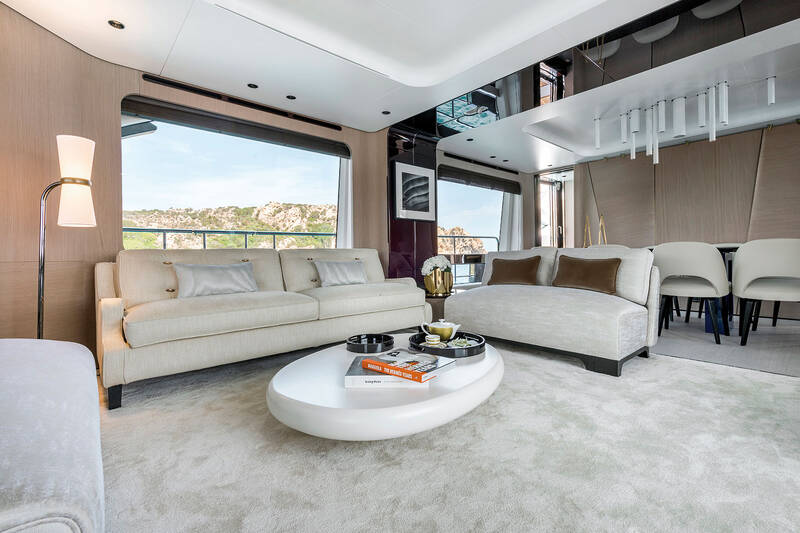

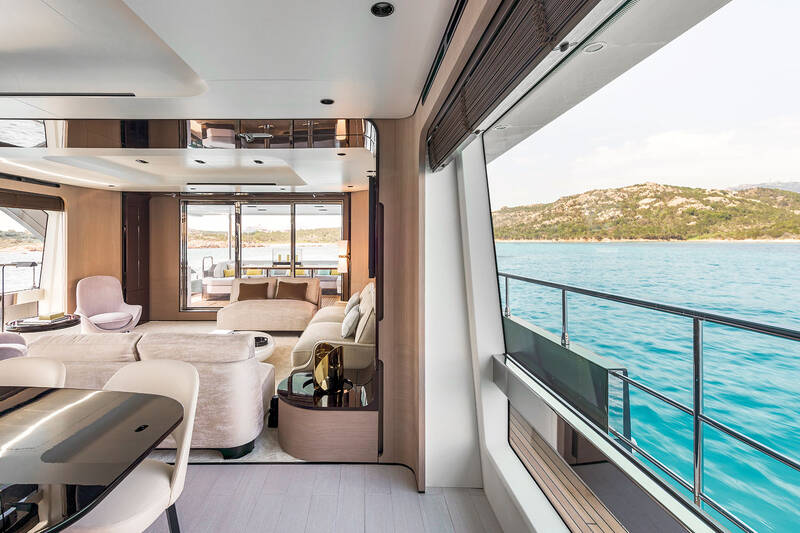

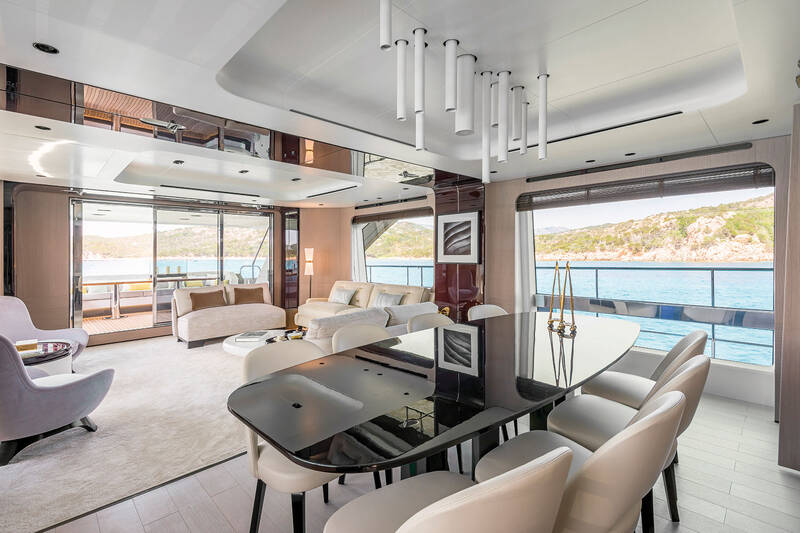

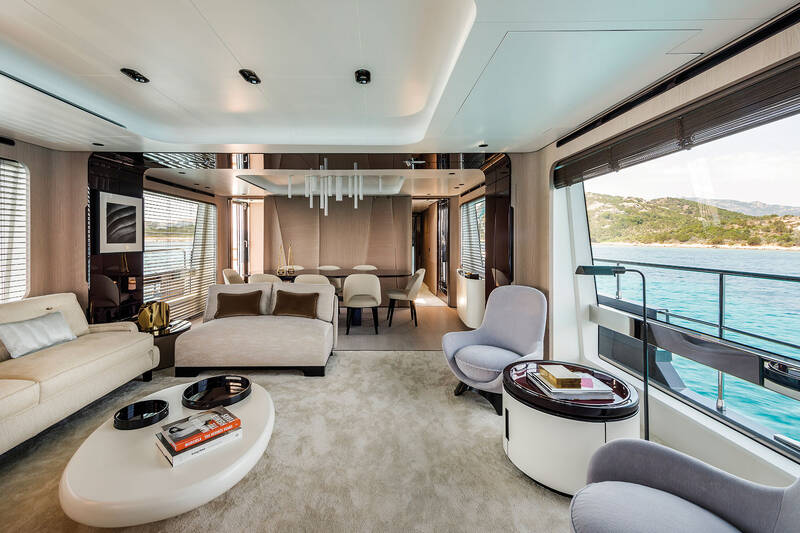

Saloon / Dining room

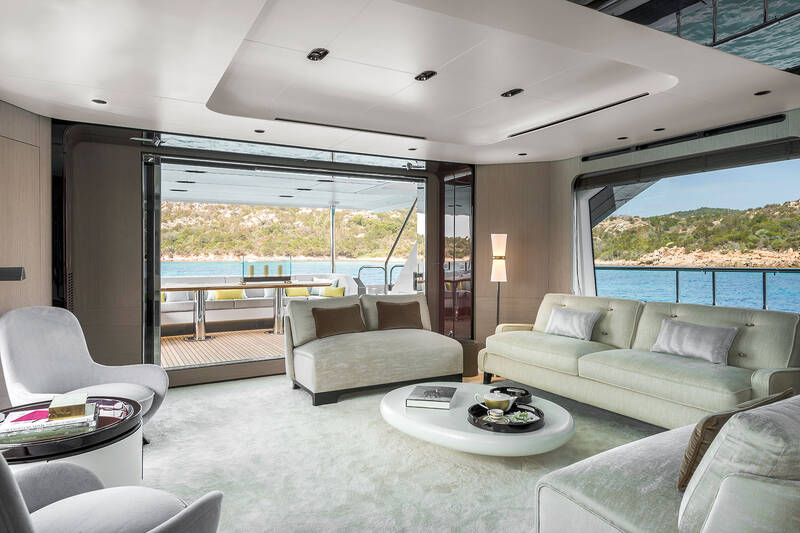

• It is composed of:
• One three-seater sofa, placed longitudinally on port side
• Two opposed two-seater sofas, on port side
• Table
• Two armchairs on starboard side
• Carpet floor in the saloon area
• Carpet floor in the dining area
• Ceiling-mounted recessed spotlights with dimmer and LED technology
• Ceiling lamp in the dining area
• Sockets
• Air conditioning control panel
• Dining area with full-height panoramic window on port side
• Saloon area with full-height panoramic window on starboard side
• Dining table
• Eight chairs
• Air conditioning outlet grid built in the internal furnishing
• Side venetian blinds
• Saloon door curtain in fabric
• One low storage cabinet located on port side near the central door
• One storage cabinet located on starboard side of the dining area
• Lacquered ceiling
• Two sliding doors located forward, for access to:
• - pantry / galley (port side)
• - foyer/ owner's area / guests' area / wheelhouse (starboard side)

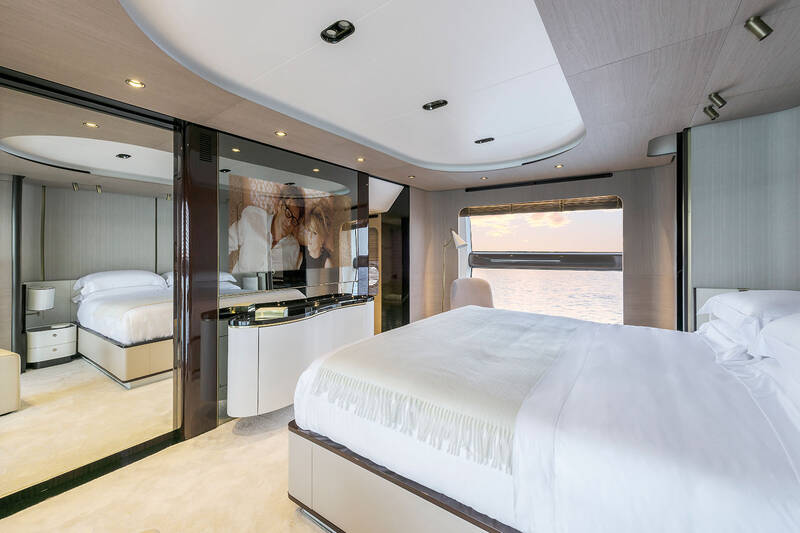

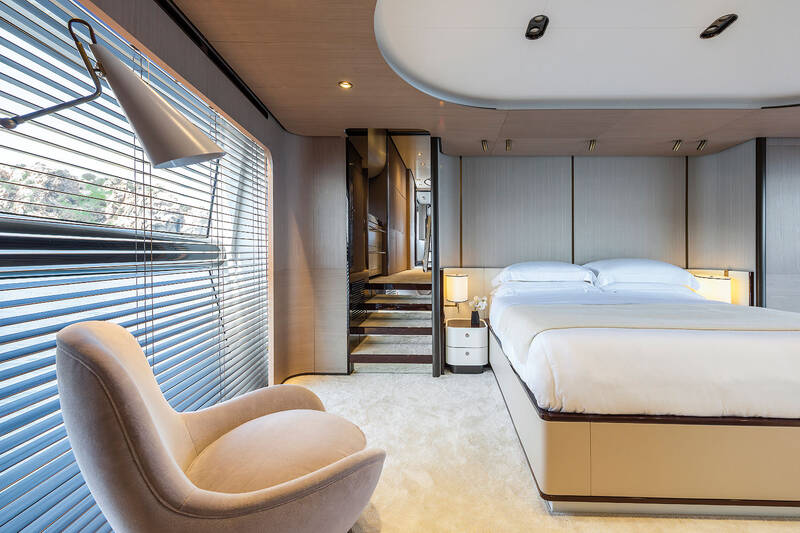

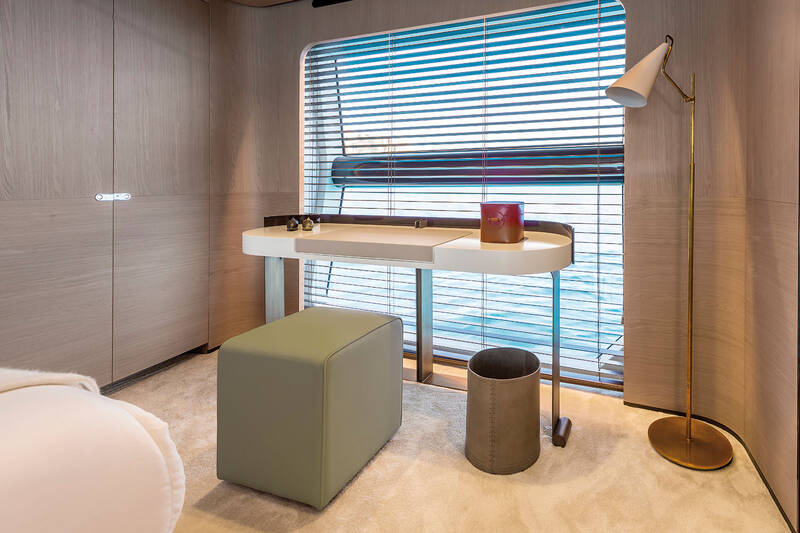

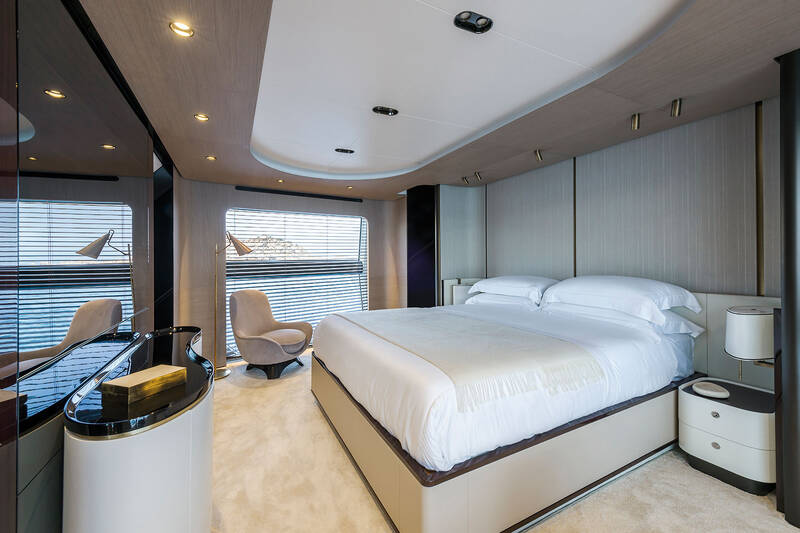

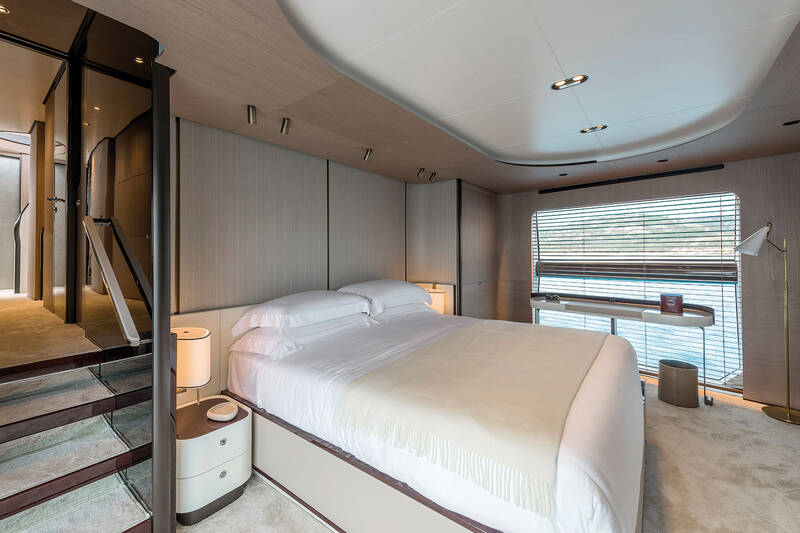

Owner’s cabin

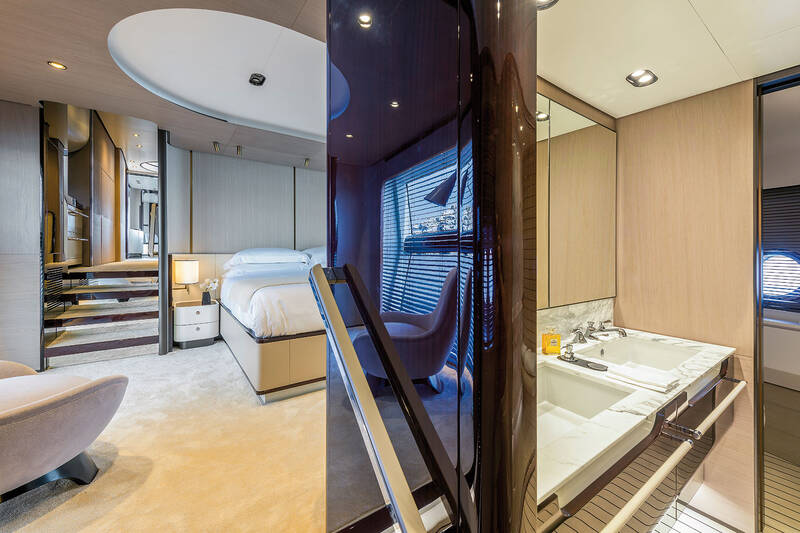

• The full-beam owner's cabin is composed of:
• Side entry to cabin via small corridor
• Walk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest of drawers, full-height mirror with concealed sliding door
• Portlight in entrance compartment
• Double bed at the center of the yacht, with foldaway bed base and locker Access to service compartment under the bed
• Headboard
• Mattress, pillows and bedspread
• Two reading lights
• Two bedside tables with drawer
• Fix side windows on each side of the cabin, full height
• Chest of drawers, forward of the owner’s bed
• Main lighting with dimmer, LED technology
• LED technology courtesy lighting
• Direct access to head, through passage on starboard side
• Full length mirror
• Venetian blinds
• Wood-upholstered bulwarks
• Lacquered and wood ceiling
• Carpeted floor
• Sockets
• Air conditioning system control panel
• Wardrobe on port side

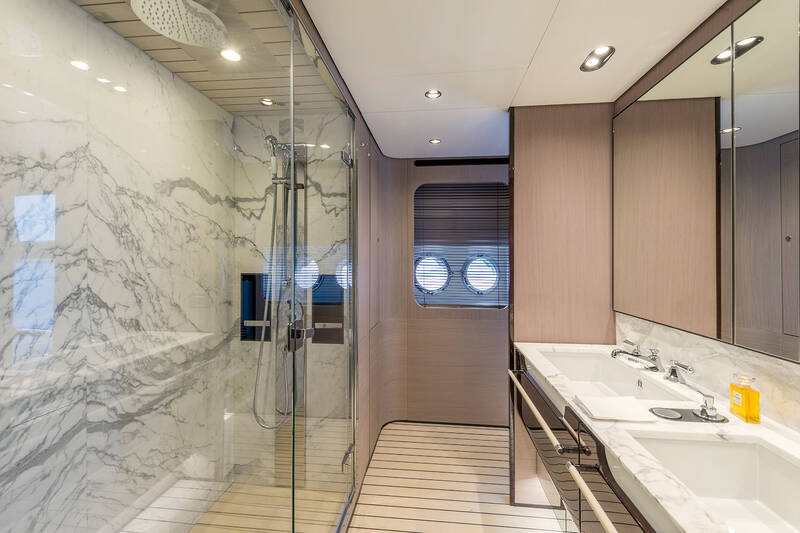

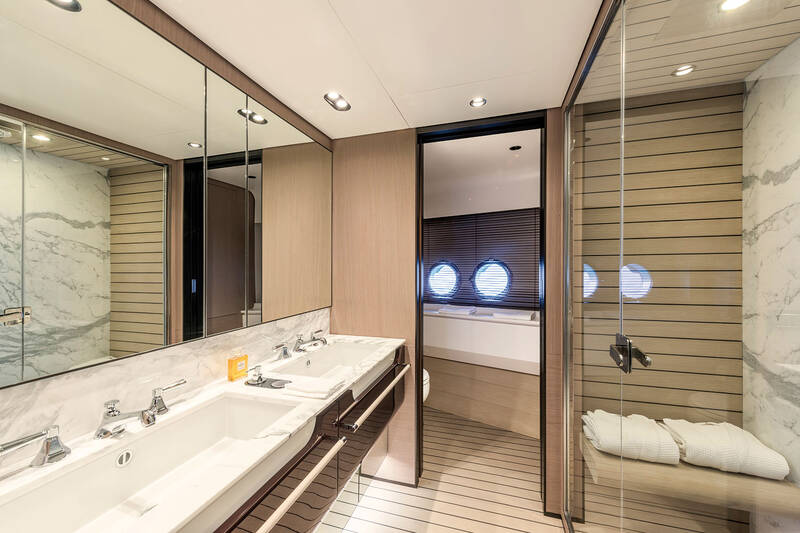

Owner's head

• Full-beam, located forward of the owner's cabin. It is composed of:
• independent access from owner's cabin
• Central shower enclosure with:
• - glass access door
• - shower walls covered in marble and synthetic teak
• - removable grating
• - thermostatic mixer
• - hand-held and ceiling-mounted shower head
• - soap holders
• - watertight spotlights
• - suction grating
• Double washbasin with quartzite top
• Mirrors
• Storage drawer under the washbasin
• Side cupboard with storage space
• Compartment separated by a sliding door on port side, for toilet
• Lighting with LED ceiling light above washbasins
• Direct lighting with cockpit ceiling-mounted recessed spotlights with LED technology
• Four openable portlights
• Venetian blinds
• Synthetic teak floor
• Sockets
• Head accessories
• Emergency escape hatch in fore sunbed area

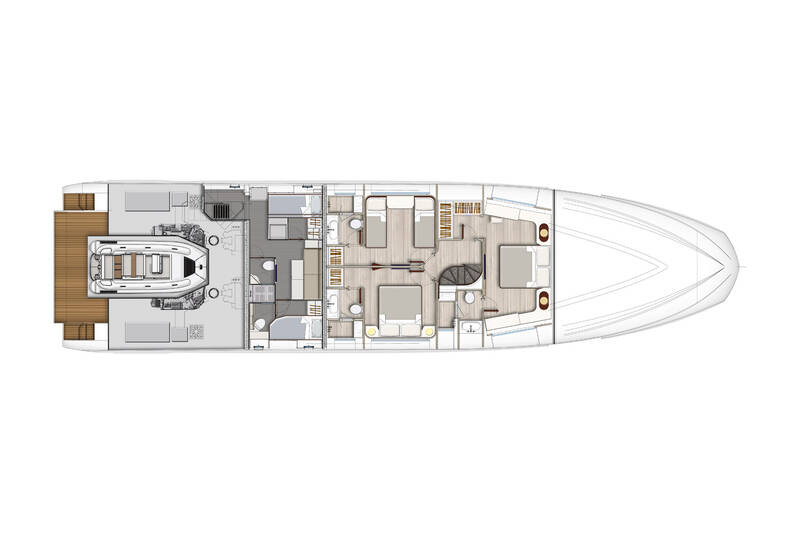

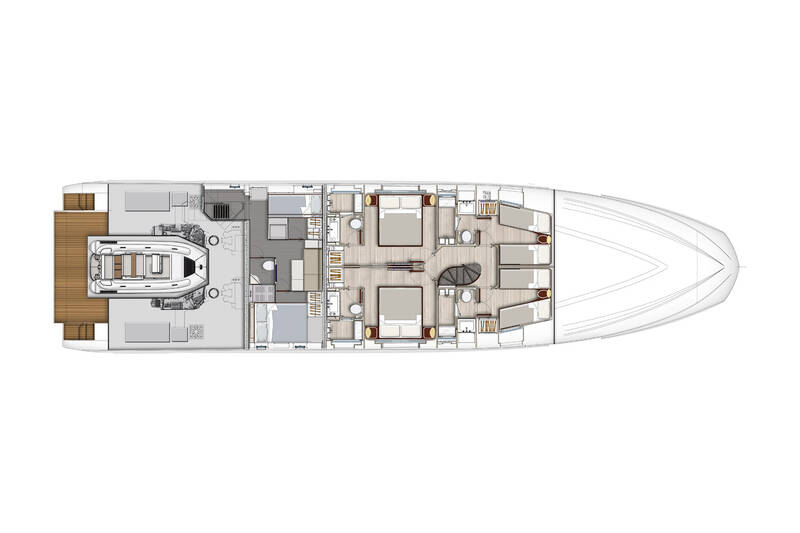

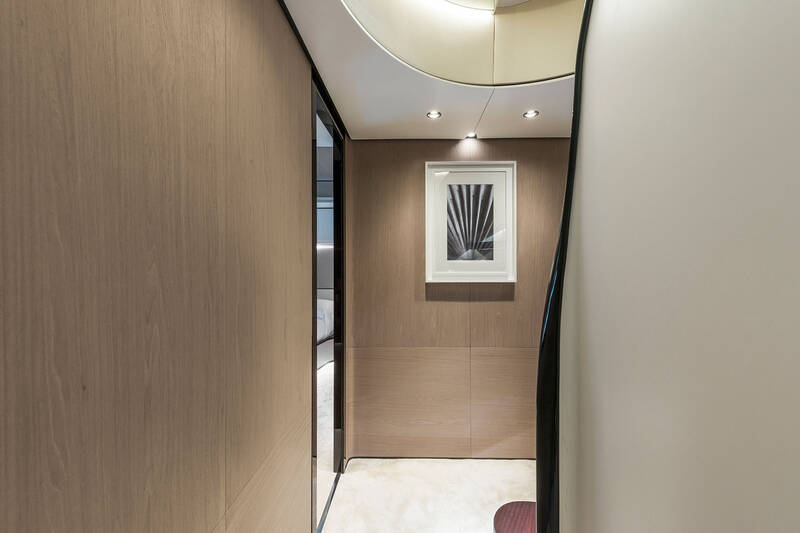

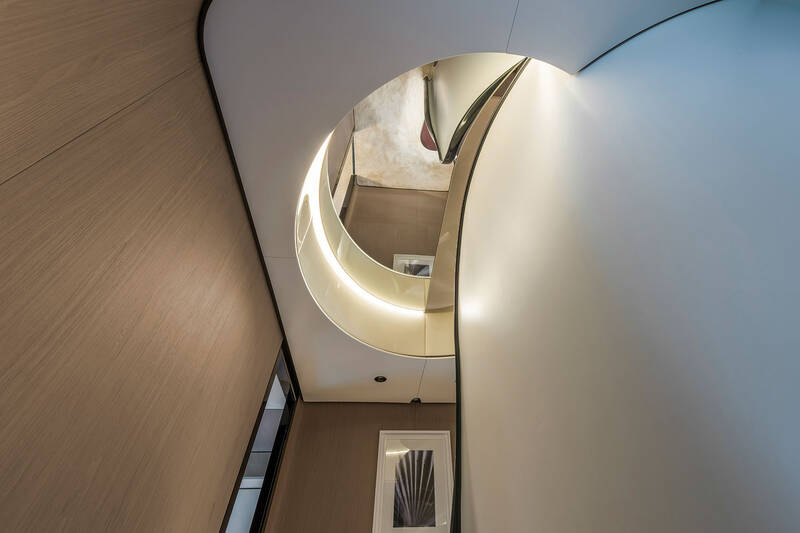

Lobby

• The below deck corridor is composed of:

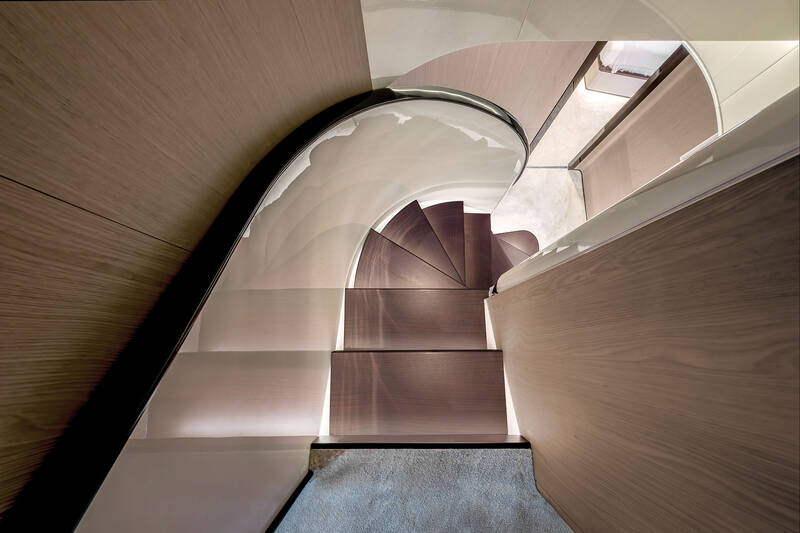

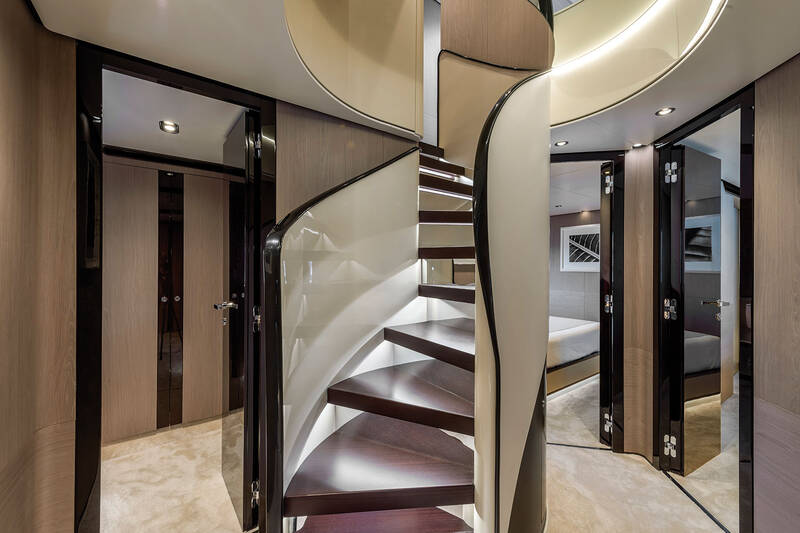

• Ladder leading to the main deck
• Wooden steps
• Lacquered ceiling
• Upholstery on bulwark in wood essence
• Carpeted floor
• LED technology lighting
• Ladder steps lighting
• Storage compartment under the ladder

Starboard side guest cabin

• It is composed of:
• Double bed placed transversally on bulwark, with foldaway bed plane and locker below, headboard
• Mattress, pillows and bedspread
• Two reading lights
• Two bedside tables with drawer
• One wardrobe with hanger bar and shelves
• Lacquered ceiling
• Upholstery on bulwark in wood essence
• Full length mirror
• Panoramic fixed window with built-in portlight
• Venetian blind
• Carpeted floor
• LED technology lighting
• Headboard light
• Direct access to head
• Sockets
• Air conditioning system control panel

Starboard guest head

• It is composed of:
• Washbasin with quartzite top
• Faucets
• WC
• Shower enclosure with:
• - glass door
• - thermostatic mixer
• - recessed ceiling-mounted shower head - hand-held shower head
• - synthetic teak grating
• - soap holders
• LED lighting
• Cupboard above washbasin with mirror doors
• Venetian blind
• Synthetic teak floor
• Head air extraction system
• Head accessories
• Openable round portlight
• Socket

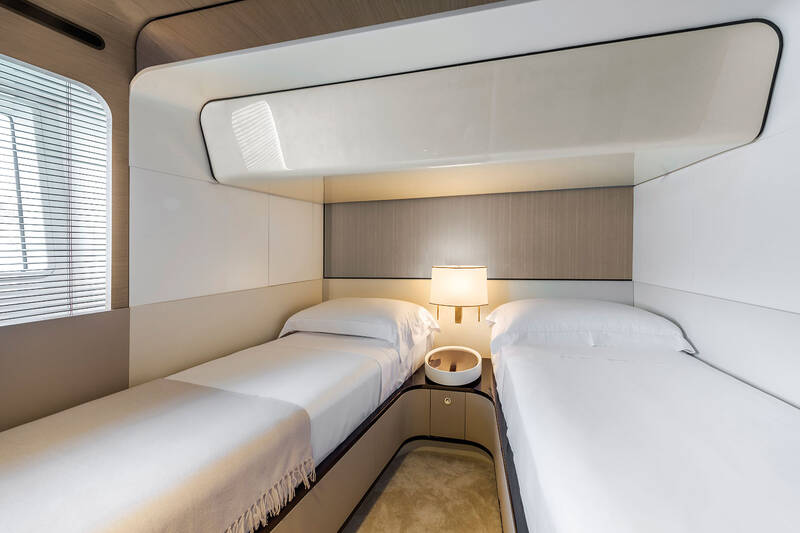

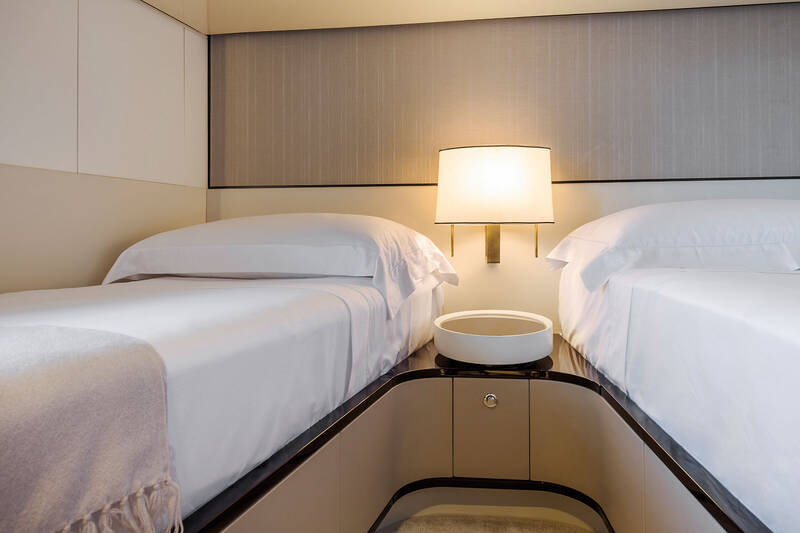

Port side guest cabin

• It is composed of:
• Two fixed single beds
• Mattresses, pillows, bedspreads
• Two reading lights
• One bedside table with drawer
• One wardrobe with hanger bar and shelves
• Wall units on the bulwark
• Lacquered ceilings
• Upholstery on bulwark in wood essence
• Full length mirror
• Panoramic fixed window with built-in portlight
• Venetian blind
• Carpeted floor
• LED technology lighting
• Headboard light
• Direct access to head
• Sockets
• Air conditioning system control panel

Port guest head

• It is composed of:
• Washbasin with quartzite top
• Faucets
• WC
• Shower enclosure with:
• - glass door
• - thermostatic mixer
• - recessed ceiling-mounted shower head - hand-held shower head
• - synthetic teak grating
• - soap holders
• LED lighting
• Cupboard above washbasin with mirror doors
• Venetian blind
• Synthetic teak floor
• Head air extraction system
• Head accessories
• Openable round portlight
• Socket

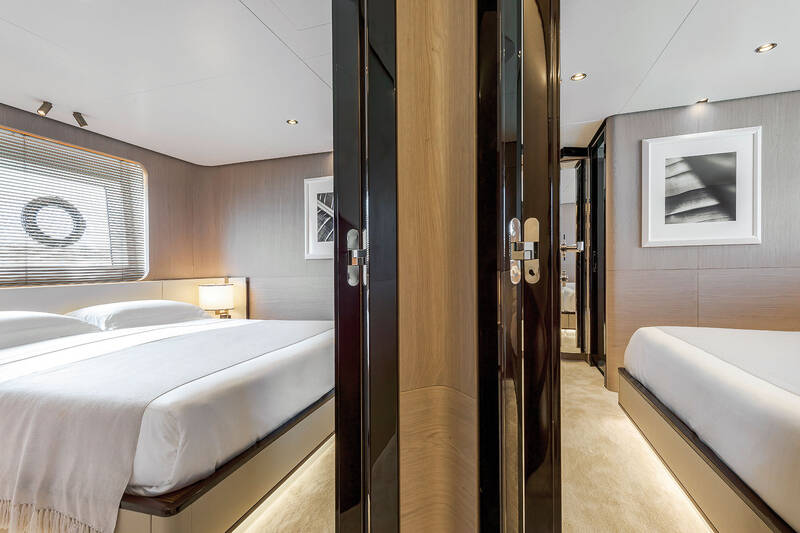

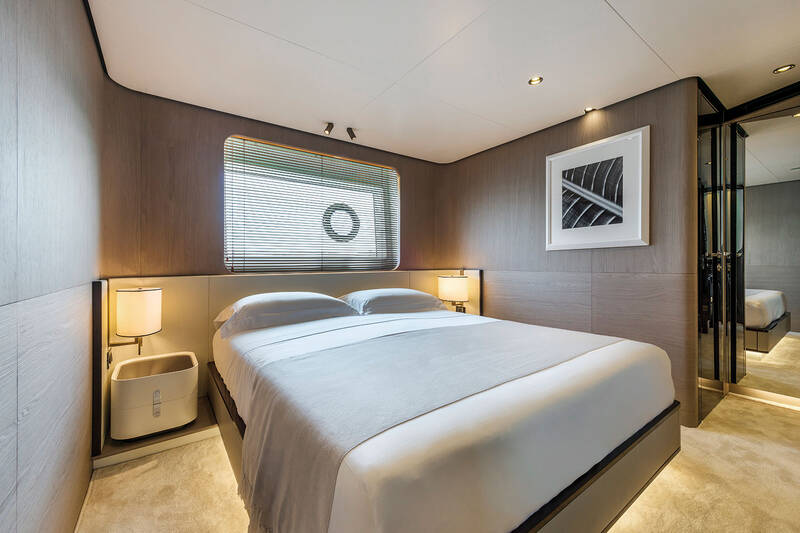

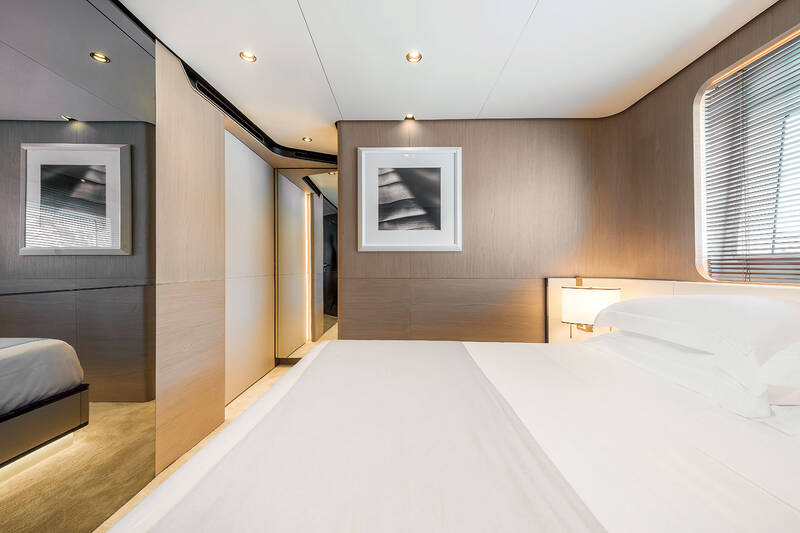

VIP cabin

• Located at the fore end of the lower deck, accessible through a small corridor, located on port side of the lobby's fore zone.
• It is composed of:
• Double bed at the center of the yacht, with foldaway bed plane and locker below, headboard
• Mattress, pillows and bedspread
• Two reading lights
• Two bedside tables with drawer
• Wardrobe on port side with hanger bar and internal lighting
• Chest of drawers
• Two wall units with storage above side panoramic windows
• Lighting with recessed LED spotlights
• Two LED wall lights on headboard
• Two fixed panoramic windows
• Two openable round portlights built-in the panoramic windows
• Two wooden Venetian blinds
• Direct access to head
• Lacquered and wood ceiling
• Wooden/fabric upholstered bulwarks
• Lacquered/fabric-upholstered headlining
• Carpeted floor
• LED courtesy lights
• Air conditioning system control panel
• Sockets

VIP head

• It is composed of:
• Washbasin with quartzite top and riser
• Faucets
• WC
• Shower enclosure with:
• - glass door
• - thermostatic mixer
• - built-in ceiling-mounted shower head - hand-held shower head
• - removable grating
• - soap holders
• - and watertight spotlight
• LED lighting
• Cupboards above washbasin with mirror doors
• Openable round portlight
• Venetian blind
• Synthetic teak floor
• Head air extraction system
• Head accessories
• Socket

Crew room
Crew area

• The crew area is accessible through a side door located on port side walk around. Through this access it is also possible to reach the engine room It is composed of:
• commander's cabin on starboard side, with single bed
• crew cabin, port side, with two bunk beds
• shared dinette. Both cabins have:
• Carpeted floor
• Wardrobe
• Chest of drawers
• Air conditioning system control panel
• Socket
• LED lighting
• Mattress, pillows and bedspread
• The area shared by the two cabins includes:
• Dinette
• Drawer-type fridge
• Washer-dryer
• Storage compartment

Crew head

• The crew area is provided with double head with shared shower.
• The commander can access the head directly from his cabin, while the crew can access the head through the door located in the shared area.
• Each head is composed of:
• Toilet
• Wall unit with mirror
• One washbasin
• One faucet
• Head accessories
• Socket
• LED lighting
• Shared shower with:
• - grating
• - shower head with flexible pipe
• - LED lighting
• - access from the two adjacent heads, through two independent doors

Electric system
Main characteristics

• Shore-powered power supply
• DC electric panel: Installed on fore bulkhead of the engine room
• AC electric panel: Installed on fore bulkhead of the engine room
• Auxiliary electric panel: Installed in the wheelhouse
• Emergency control panel: Installed in the wheelhouse
• Battery cut-out/emergency/fire extinguishing system control panel: located in the cockpit
• Onboard voltages:
• - 230V - 50 Hz AC
• - 24 V DC from battery set
• - 12 V DC from battery set and AC/DC voltage reducer

Galvanic current insulation

• Zinc anodes

Generator

• Two single phase generators - 28 kW/230 V AC-50 Hz for EU system
• Soundproofing box
• Remote start up

Shore power sockets

• EU two 3P 63 A sockets connected to two isolation transformers, 15 kW each
• The AC power sources terminate on the main electric panel in the engine room, provided with a voltmeter and ammeter for the 230 V power supply. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches.

Batteries

• Services: twelve 95 Ah - 12 V DC batteries
• Engines: six 95 Ah -12 V DC batteries
• Generator: two 95 Ah - 12 V DC batteries
• Service battery charger / service backup: two Master volt 80 Ah - 24 V
• Engine start-up battery charger: one Master volt 30 Ah - 24 V
• Genset start up battery charger: one Master volt 10 Ah - 12 V

Lights and sockets

• 230 V AC sockets for main utility power supply, EU type
• USB sockets
• Internal lighting: 24 V LED-type, with dimmer
• External lighting: 24 V LED-type (no dimmer)

Electronic navigation instruments
BRONZE version

• Hull transducer
• - one SIMRAD through transducer DST800
• Wheelhouse
• - three SIMRAD NSS-16 Evo 2 multifunction displays
• - one SIMRAD VHF RS90
• - one SIMRAD GOFREE WIFI wireless module

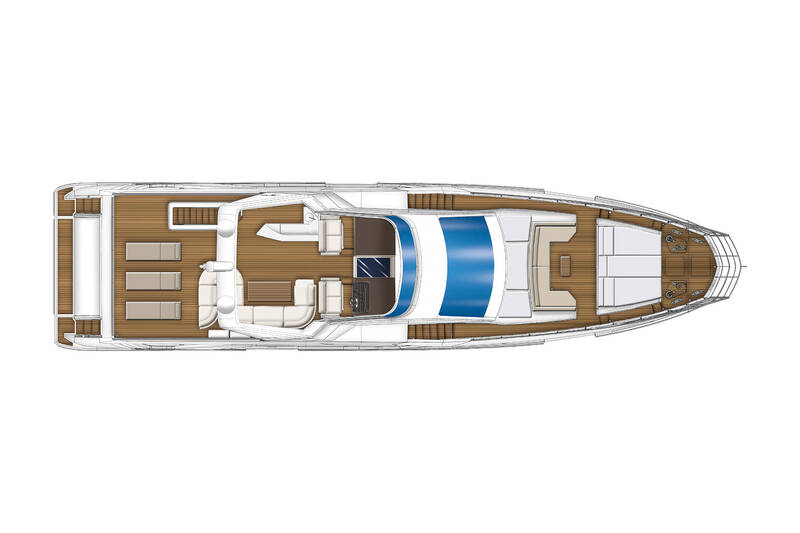

• Flybridge
• - two SIMRAD NSS-16 Evo 2 multifunction displays
• - one SIMRAD VHF RS90
• - one SIMRAD IS40 automatic pilot
• - one SIMRAD OP10 automatic pilot key- board
• Radar arch antennas:
• one SIMRAD BROADBAND 4G 36 Nm radar aerial
• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

Bilge system

• The system is divided into two lines, with the following characteristics:
• Main bilge system composed of six automatic and independent pumps located in each watertight compartment:
• - two in the engine room (fore and aft)
• - two (one on each side) next to the diesel tank
• - one (central) forward of the gray / black water tank
• - one (central) in the fore service compartment (below owner's tray) and controlled through microswitches
• Each electric pump can be controlled either manually or automatically.
• Secondary or auxiliary bilge system, composed of six suction points located as follows:
• two in engine room
• two on fuel tank side (one on each side)
• two at the bow
• Each suction point is connected through flexible piping to a manual valve and a main manifold located in the engine room, from where it is possible to select one or more selector switches for emptying the relevant bilge.
• The secondary bilge system is connected in parallel to the fire extinguishing and chain washing system, therefore in case of engine room pump fault, it is possible to operate special three-way valves and use the fore (chain wash) pump(s).
• A second electric pump (connected in parallel to the electric bilge pump) operating as a backup
• can be connected through three-way valves in case of main pump fault.
• The bilge system is also equipped with an emergency bilge system for the engine room, through bypass on the engine seawater intake: this system allows sucking the water from the engine room using the cooling pump of the main engines.
