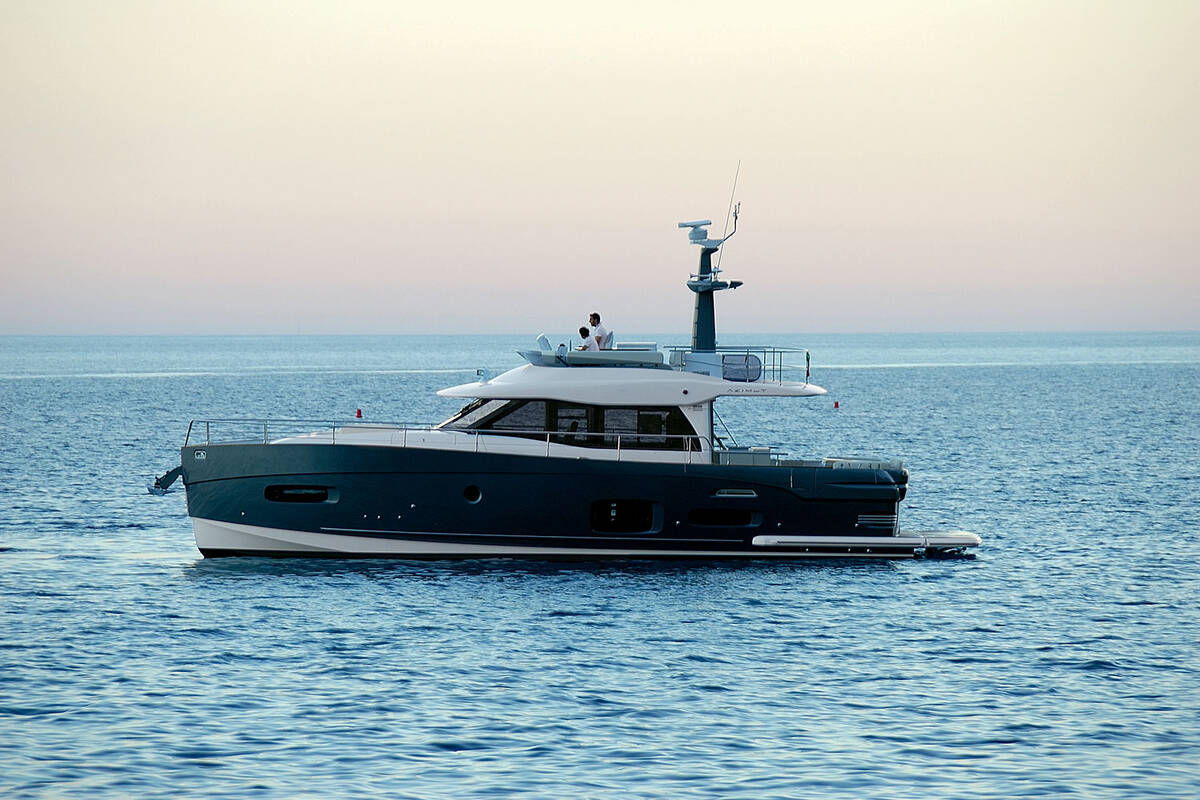

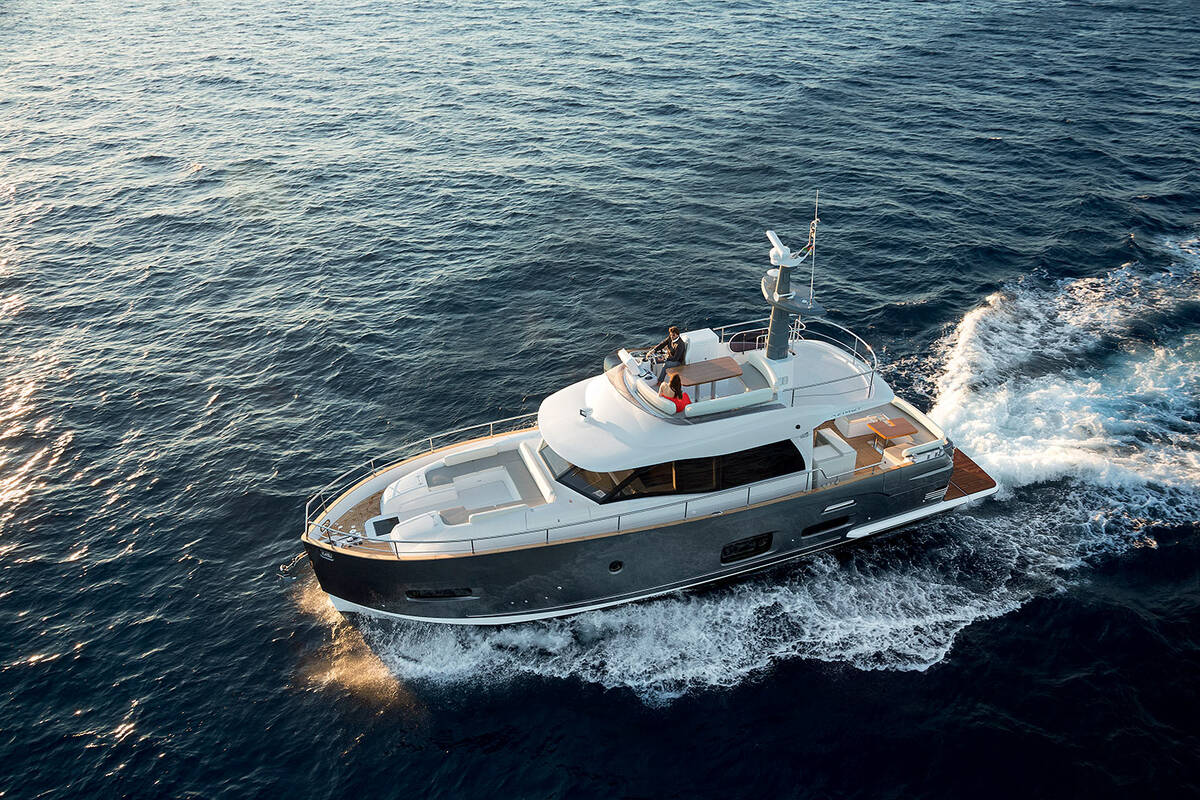

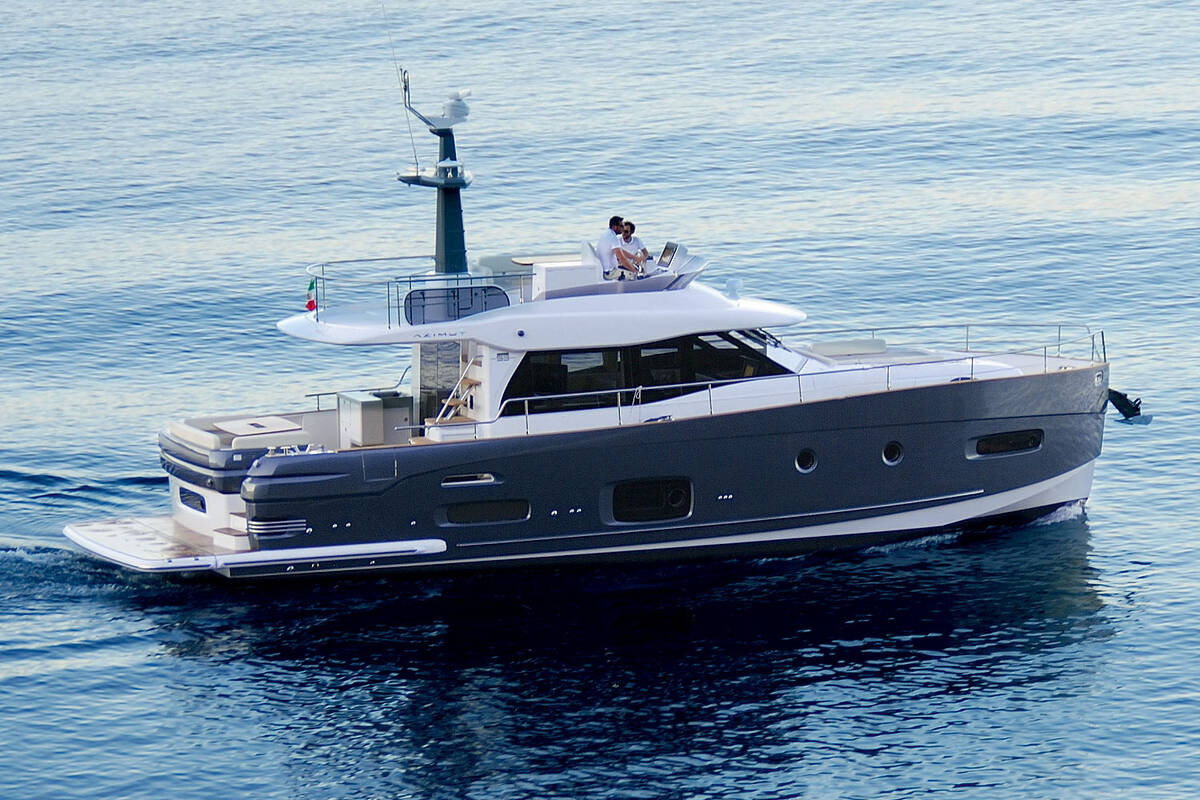

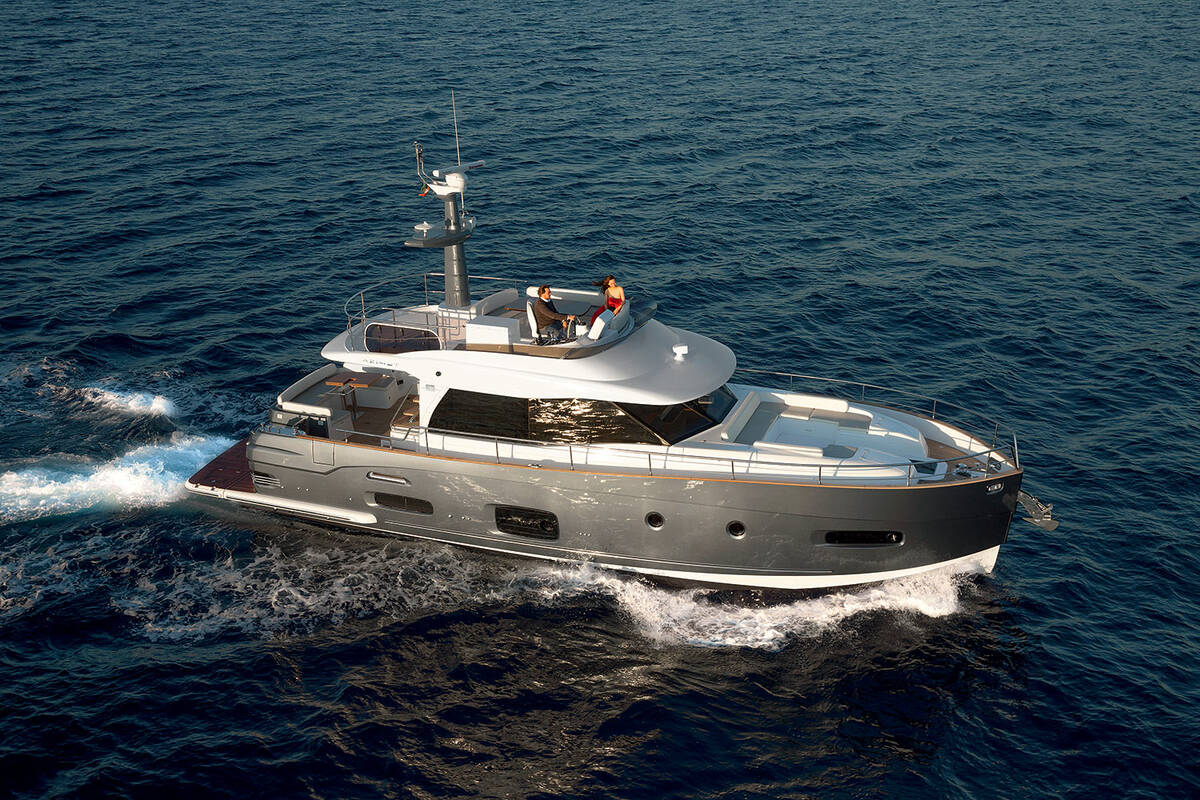

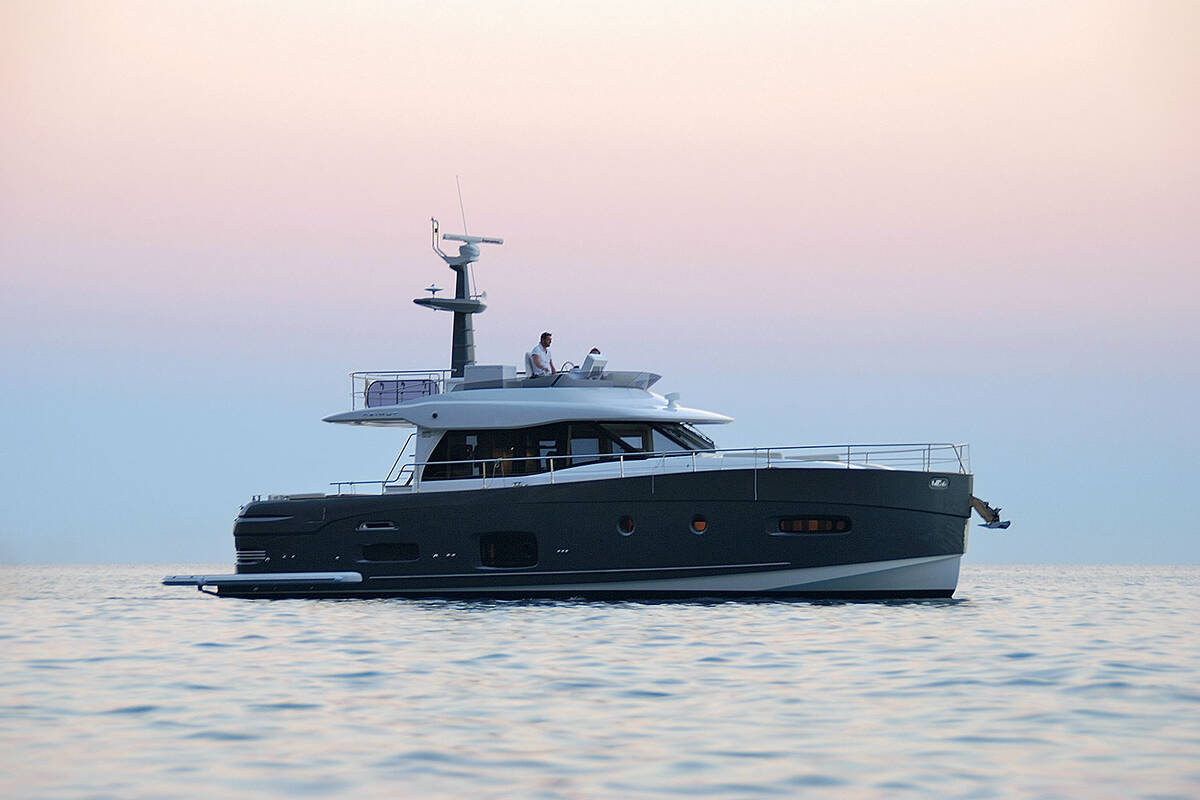

Structure and shape of hull
The structural design of the keel has been RINA approved. This implies a further guarantee of the structure's quality; This is also guaranteed by the use of state-of-the-art techniques and the materials used. Construction materials and techniques have been carefully researched in order to find the best balance between quality,
weight, and rigidity.The hull sides, deck, flybridge trays and structures are made of high performance sandwich panel with a PVC core to achieve maximum rigidity and impact resistance. An infusion lamination system has been used for these parts, a technique that reduces weight while improving the control and quality of the construction.
Vinylester resin is used to laminate the entire hull, deck and flybridge. This type of resin is extremely effective in preventing osmosis because of its chemical and mechanical properties. Azimut is therefore able to provide a 5-year warranty against osmosis. Vinylester resin of recognized quality is used throughout the remainder of the lamination
process. The structural bulkheads for internal division are made of sandwich panel with a PVC core. The remaining bulkheads (not for division) are made of resinate okumen. The main pairings (such as hull-deck) are made by means of structural gluing. The keel is a semidisplacing DUAL MODE model: designed in collaboration
with DIXON YACHT DESIGN, it allows reduced consumption (-10/12%) compared with a traditional planing keel at displacing speeds, yet still lets you reach a maximum speed of 21 knots. The hull is more submerged than a semi-planing keel, creating a larger side surface that produces a marked improvement in terms of both navigation comfort and steering stability, along with improved exposure and leeway of the anchormoored boat. The considerable size of the hull on bow reduces
the pitching effect, with a more gentle impact on the deadrise wave (8° aft and 17° midway). The presence of large spray rails increases the lift and reduces the roll compared with traditional displacing keels.
Propulsion system summary
Engines
- Manufacturer - Cummins
- Model - QSC 8.3
- Type -In-line 6-cylinder diesel engine
- Max. power 2 x 368kW - 500hp
Reduction gears/marine gears
- Manufacturer - ZF
- Model - 286 IV
- Reduction ratio 2.539:1
- Dry weight 130Kg
Transmission
- Configuration Integrated V drive
- Shaft length 3,595 mm
- Shaft angle 9°
- Shaft diameter 55 mm
- Distance between centers 1,500 mm
- Shaft building material Duplex F51 stainless steel
- Shaft support NiBrAl
- Hull casing TPSSL seal
- Hull casing and shaft manufacturer
- Italian Propellers
- Propeller manufacturer Ecomet
- N° of blades 4
- Diameter 686 mm
- Building material NiBrAl
Steering gear
- Rudders stainless steel rectangular profile
- Bow thruster 6.5Kw D.250 24V

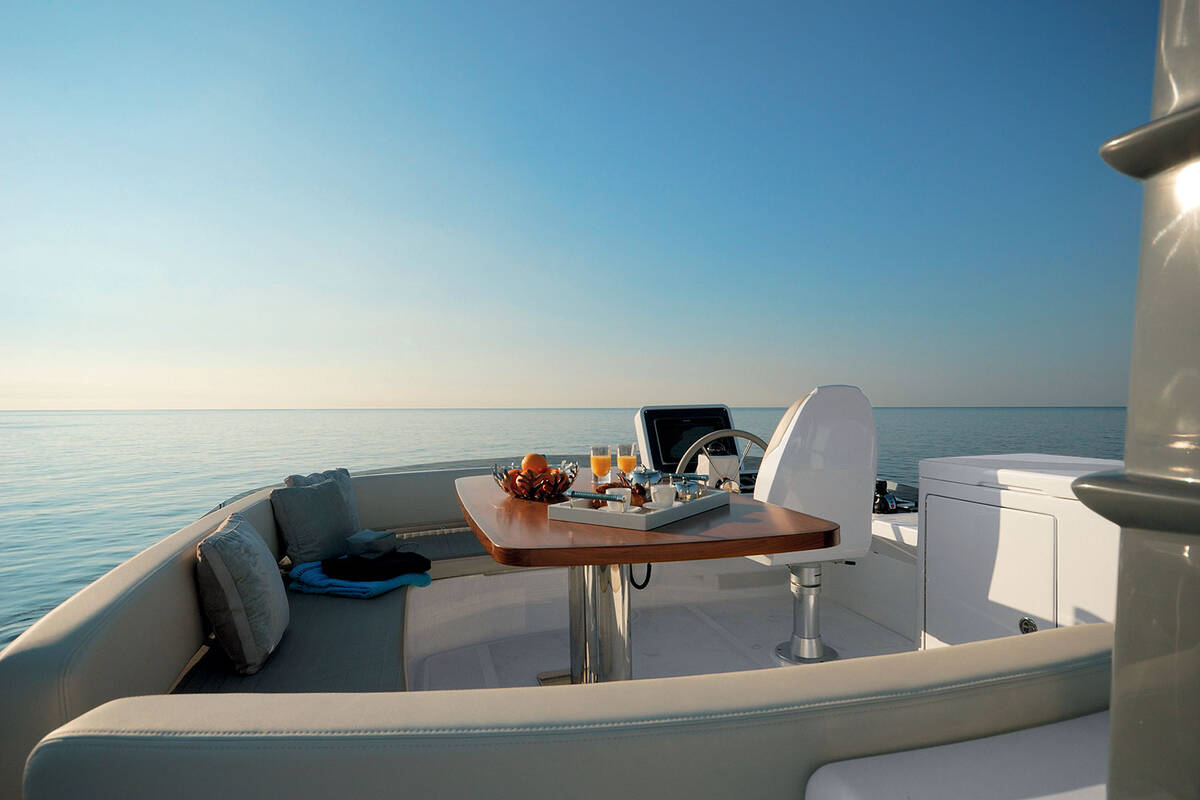

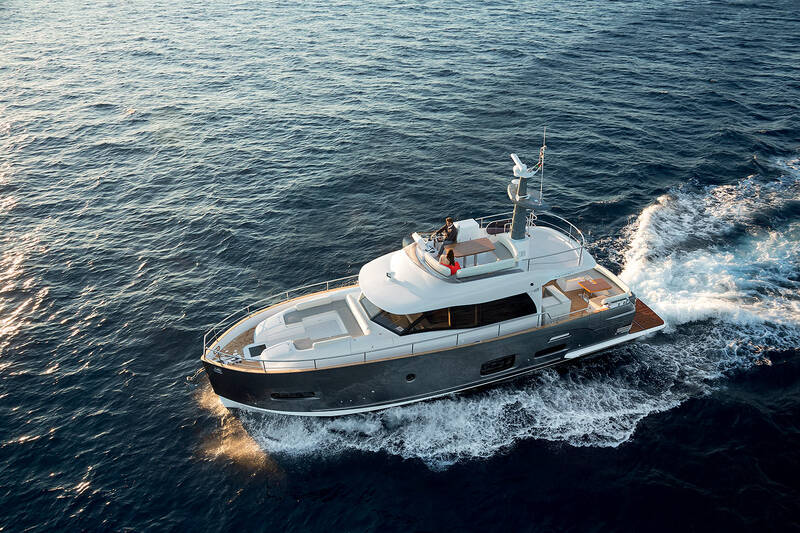

Flybridge
- Flybridge GRP and teak access ladder from cockpit
- Flybridge stainless steel access handrail
- Stern flybridge handrail, flybridge access protection handrail, flybridge stainless steel liferail
- Watertight access door to flybridge in aluminum and Plexiglas
- Flybridge non skid GRP flooring
- Plexiglas flybridge screen
- Stainless steel steering wheel covered in fabric
- "C"-shaped sofa with cushions on port side, with locker below
- Table with teak plane and stainless steel base
- Central GRP mast carrying lights, antennas and electronic navigation instruments
- Mast base with storage compartment
- Fixed shower built into the GRP mast, with hot/cold mîxer tap
- Cabinet with GRP cover on starboard side, sink with cold water only, and lockers below
- Zone for positioning the life raft (not included) on port sîde, behind the sofa
- Drainage scuppers
- Manual depth searchlight
- Flybridge dashboard eguîpment:
- - Bow thruster controls
- - Cummins ETS engine remote controls, with speed synchronization
- - Horn switches
- - navigation lights
- - Flybridge GRP mast lights
- - Winch
- - Chain washing pump switch
- - 12V socket
- - Cummins multi-function instruments
- - alarm indicator lights
Electronic navigation instruments: see relevant paragraph

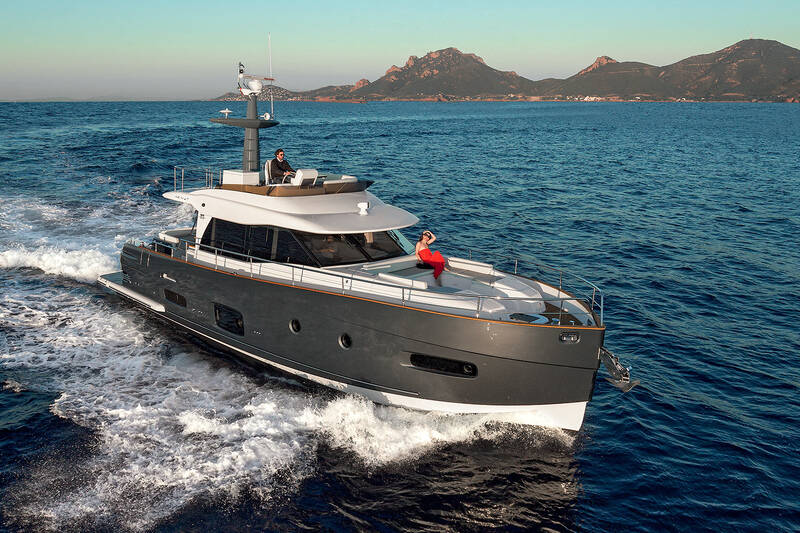

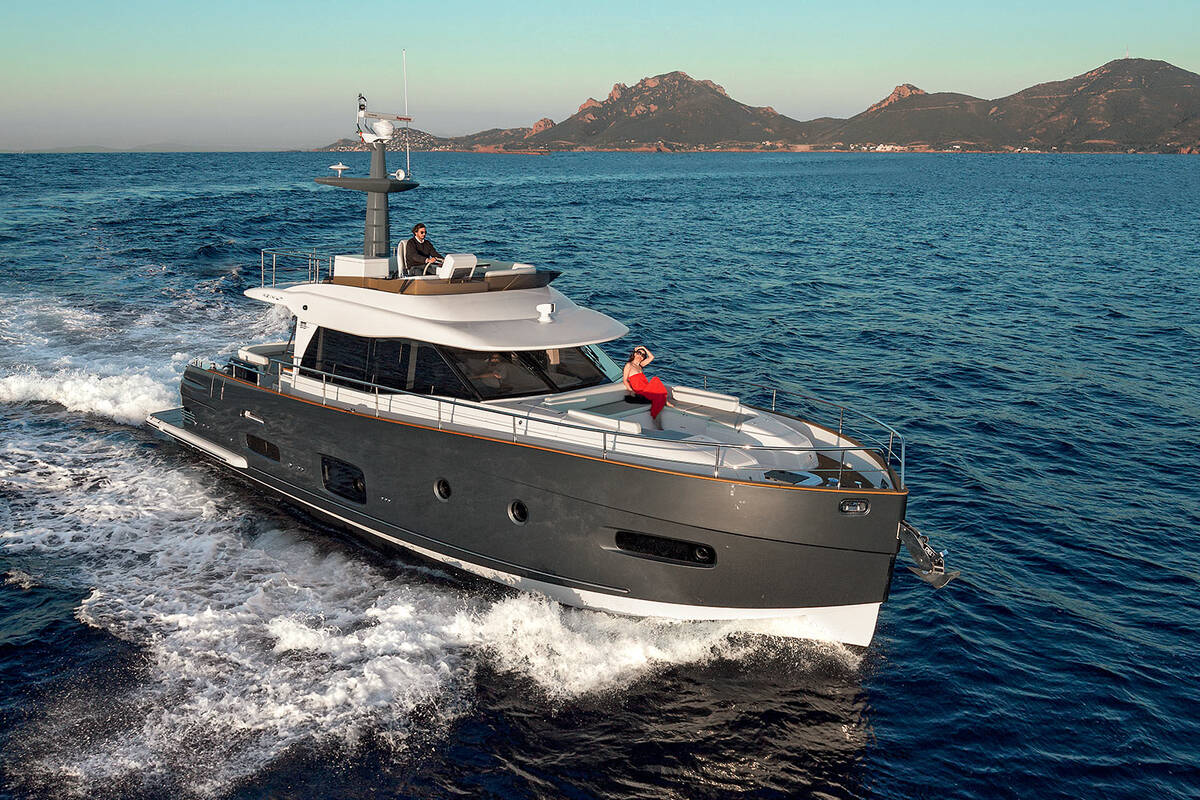

Bow / walk arounds

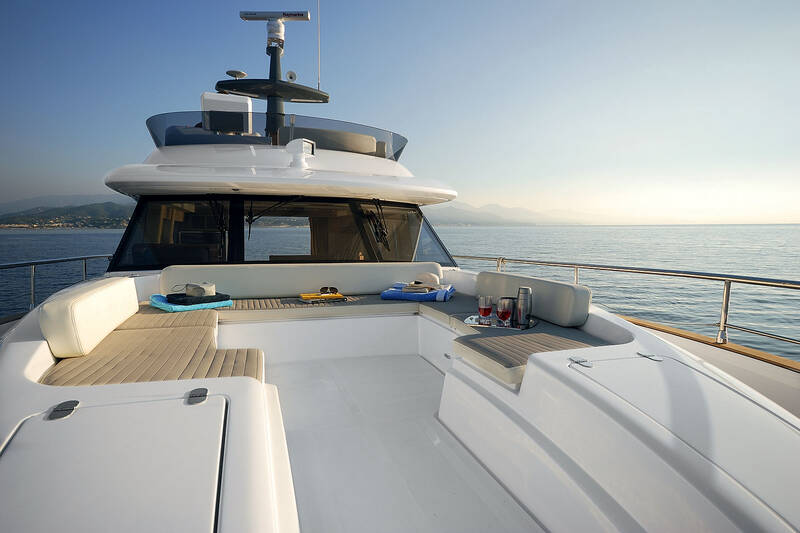

Bow
- Anchor chain and fender locker with water drainage
- Delta 25kg galvanized steel anchor
- 75-meter high-resistance gaged chain, diameter 10mm
- Bow roller and protection shield
- 1700 W WINCH
- 2 stainless steel T-head cleats
- 2 roller hawseholes
- Chain washing system with pedal controls
- "C"-shaped sofa in the bow, with cushions and backrest
- 4 external lockers on the sides of the sofa
- Lockers under the bench
Walk arounds
- Refueling: 2 "Diesel" refueling plugs with cover and scuppers
- Fresh water filling: 1 "Water" filling plug
- Black water outlet: 1 "Waste" outlet water plug
- 2 intermediate stainless steel cleats on the gunwale
- Non skid GRP floor
- Stainless steel pulpit, D. 40mm, Th. 2mm
- Teak gunwale with washboard
Cockpit and platform

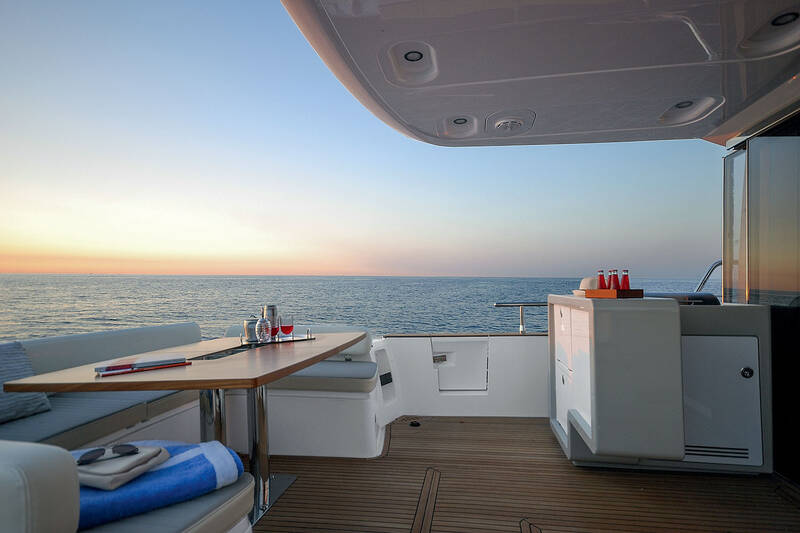

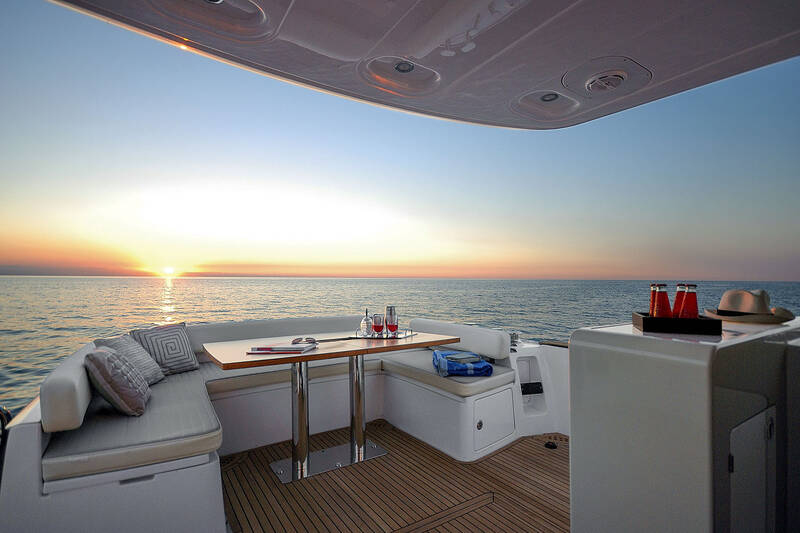

Cockpit
- Cockpit access through 3 non skid GRP steps
- Steel and Plexiglas gate
- Non-slip floor
- 2 mooring stations
- 1 chock and 1 cleat in stainless steel for each mooring station
- Stainless steel door, watertight level 3 and tempered flat glass door with 2 sliding panels
- 5-seater C-shaped sofa provided with cushions and backrest with lockers under the bench on aft side port and starboard
- Engine room access via door in cockpit floor
- Engine unloading door
- Scuppers
- Lighting with watertight spotlights
- Cabinet built into the flybridge ladder, with a large locker
- Rudder hold access door from starboard side bench
- Fire extinguishing controls
- Walkway lights on cockpit access steps
- Shower head with hot and cold water, starboard side
Platform
- Lifting platform in GRP with outer reinforcement frame in polyurethane. Width: 4300mm Depth of mobile part: 1205mm. Total depth of stern platform: 1700mm (lifting platform + fixed part)
- Rubber rub-rail with stainless steel insert all around the edge of the GRP lifting platform
- Electro-hydraulic tender lift mechanism in electro-polished steel.
- Locker for shore power sockets
- Non skid GRP floor
- Stainless steel manual swimming ladder with teak steps and retractable handle built on starboard side
- Open housing for the tender (not included)
- INSTALLABLE TENDER:
- - WORKING DIMENSIONS OF PLATFORM: 4.30 x 1.205m
- - HYPOTHETICAL PLATFORM TENDER: 3.20 x 1.50m
- - LIFT PAYLOAD EXCLUDING GRP, TEAK AND LADDER: 380Kg
- - HYPOTHETICAL WILLIAMS TENDER: Turbojet 285

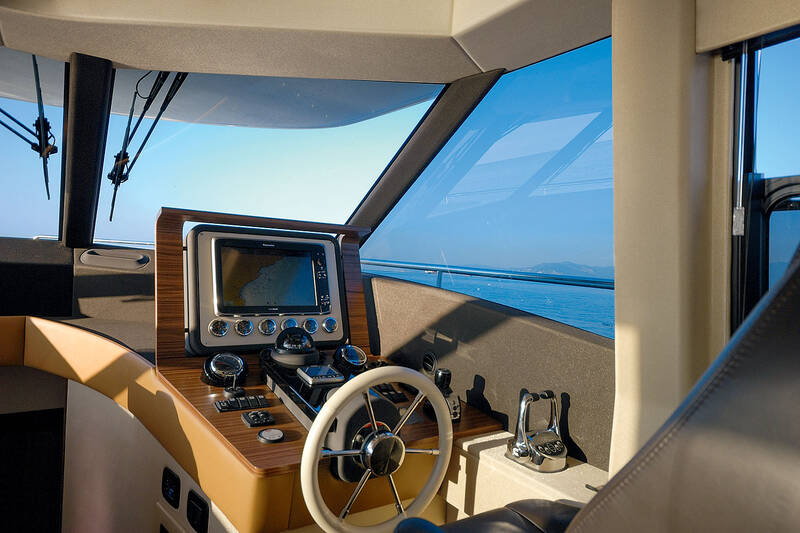

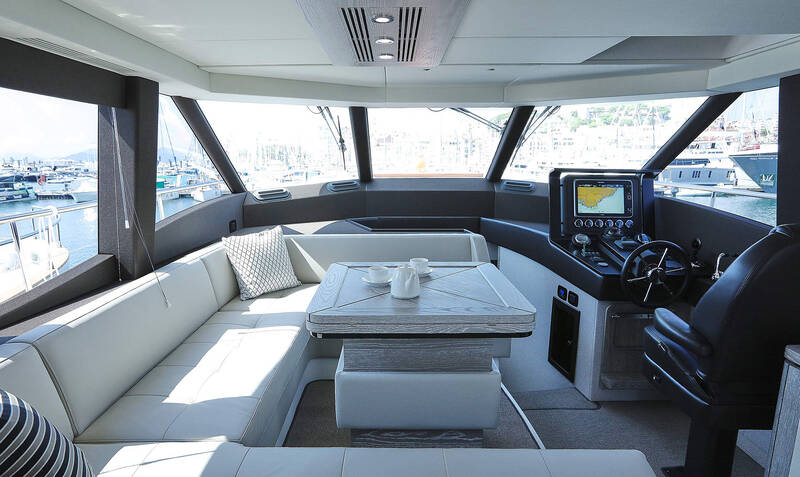

Wheelhouse
- Helm seat with armrests and manual horizontal slide adjustment. Electric piston for up-down movement
- Foldaway footrest
- Manually-operated window on starboard side
- Steering wheel
- The wheelhouse includes:
- - Bow thruster controls
- - Cummins ETS engine remote controls, with speed synchronization
- - Horn, navigation lights, wiper switches
- - Activation of bilge pumps
- - Emptying of blackand gray water tanks
- - Engine room ventilation
- - 12V socket
- - Chain washing pump switch
- - Analog indicators of diesel tank level
- - engine start-up
- - rev counter
- - hour counter
- - engine pressure gages and thermometers
- - ammeters
- - alarm indicator lights
Electronic navigation instruments: see relevant paragraph
Dinette / Galley

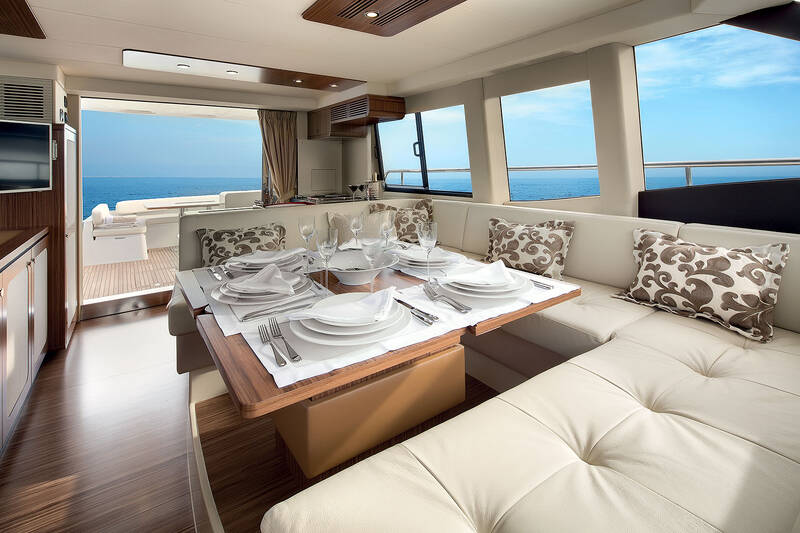

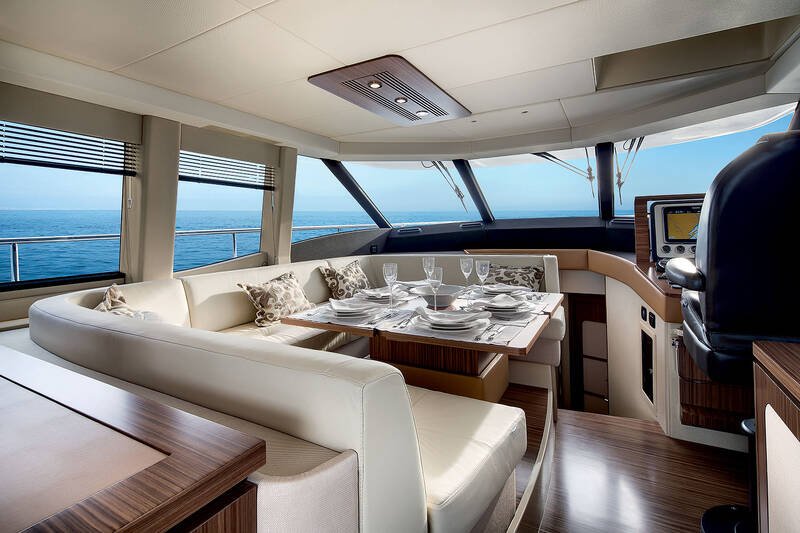

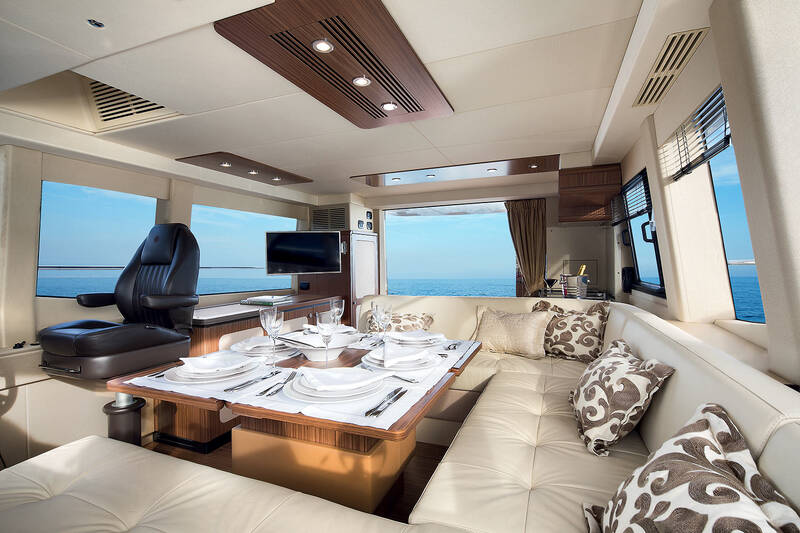

Dinette
- Sofa on port side, with 6-8 seats
- Dining table with foldaway wooden top for 6 people on port side. When the top is folded away, the grabrail is visible and a cup holder and storage compartment become available.
- 3-panel storage cabinet on starboard side, with housing for crockery and drawers inside the central panel. Cabinet top in solid walnut (covered)
- TV system with aerial socket in saloon
- Ceiling and walls covered in fabric; walnut inserts in the ceiling
- Manual Venetian blinds for side windows, and sliding curtain for saloon door
- 220V sockets
- Carpeted floor

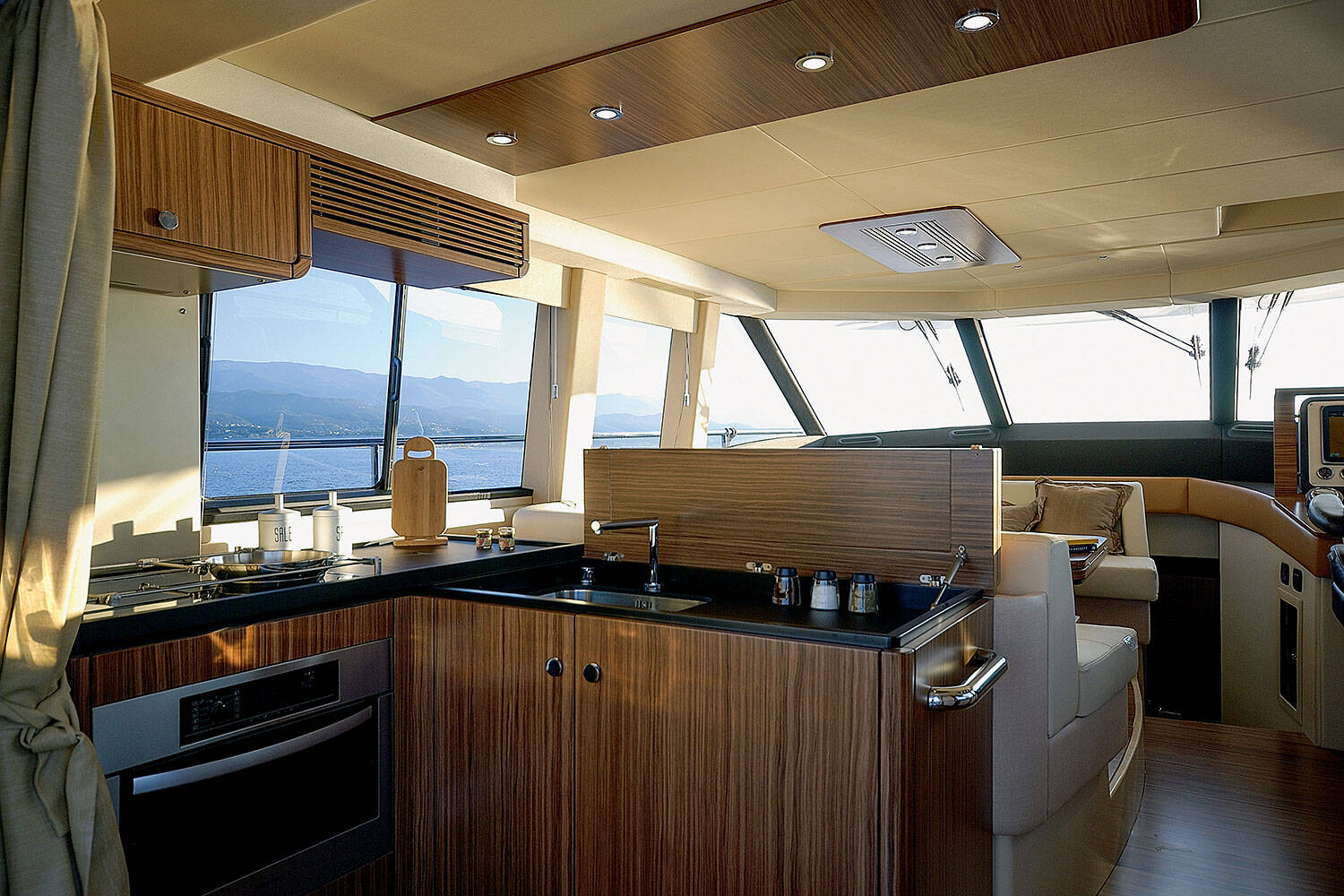

Galley
- "L"-shaped galley located at the entrance to the boat from the cockpit (port side)
- Refrigerator cabinet on starboard side, at the entrance to the boat from the cockpit
- Laminated foldaway cover for black worktop with sink and hot/cold mixer tap
- Microwave oven + grill (20-liter capacity)
- Ceramic glass 4-hob range and silicone pot holder
- 1 cutlery drawer under the worktop
- Drawer under the oven
- 24V extractor for galley
- Manually openable window on port side
- 1 wall unit
- Rubbish bins for sorted waste below the sink
- 220V socket
- Upright refrigerator/freezer

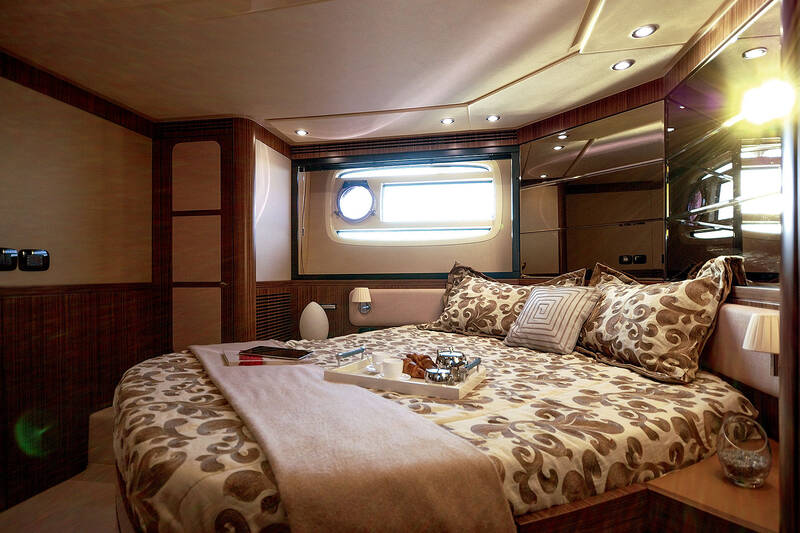

Owner’s cabin
- Located midship
- Diagonal double bed with headboard on starboard side
- Foldaway bed for accessing the locker below
- Padded headboard with panel to access a storage compartment with mirror and two wall lights
- 2-panel storage cabinet with shelf on port side
- Wardrobe with hanger bar and drawer below, on port side
- Wardrobe with shelves on starboard side
- Large windows on starboard side, with openable portlight
- Spotlights
- Carpeted floor
- Direct access to head on port side
- Venetian blind
- 220V sockets

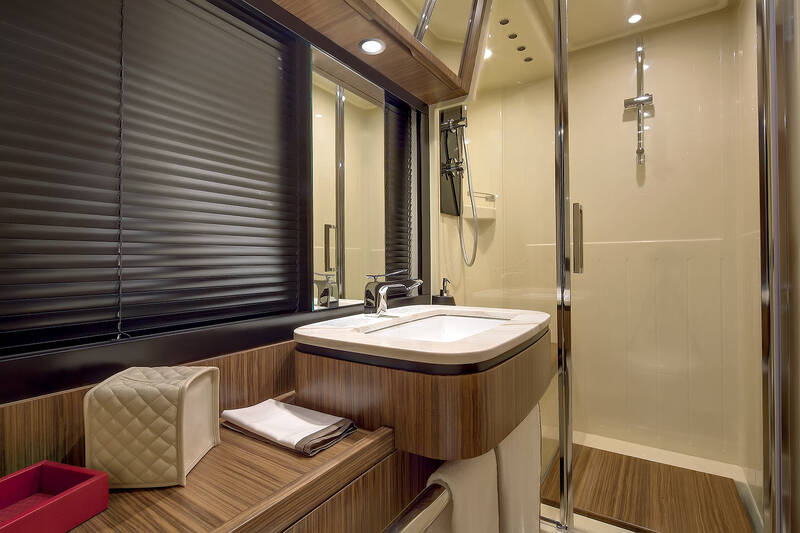

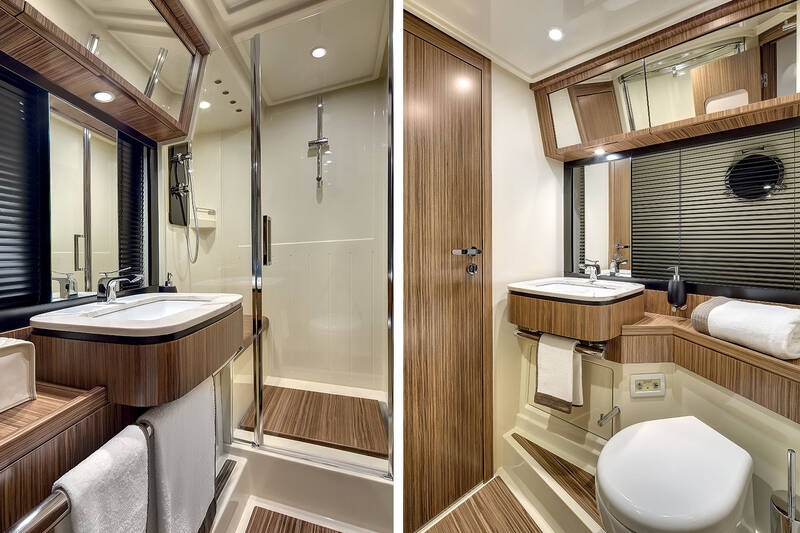

Owner's head
- Located on the port side of the owner's cabin, with access from the owner's cabin.
- Washbasin top in marble
- TECMA toilet
- Chromed mixer tap
- Separate shower with seat; flat door in tempered glass
- Shower column
- 2 wall units
- Mirror
- Venetian blind
- 220V socket
- Laminated floor (walnut finish)
- Head air extractor: forced suction from the shower ceiling panel
- Head accessories:
- - 1 toilet brush
- - 2 clothes hooks
- - 1 toilet roll holder
- - 1 handrail doubling as a towel-holder

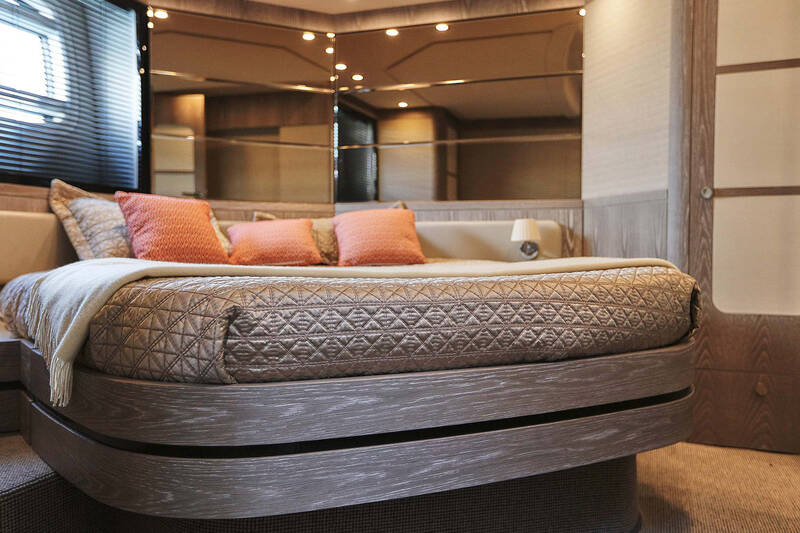

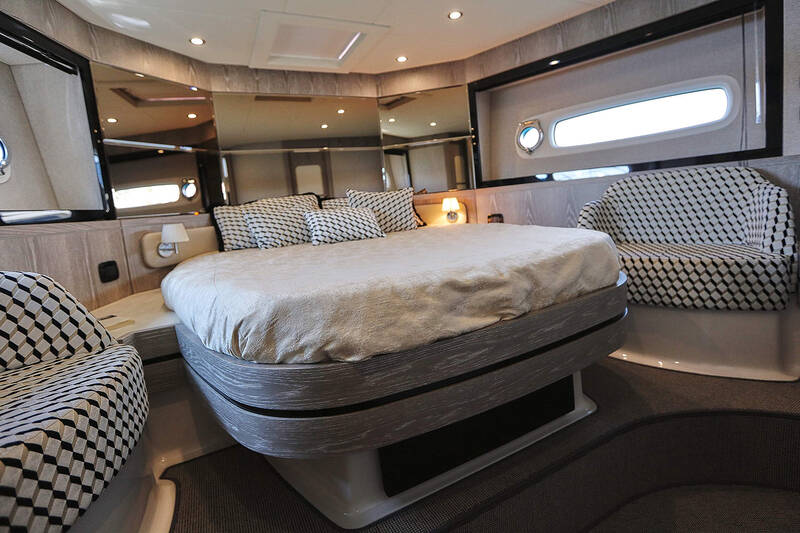

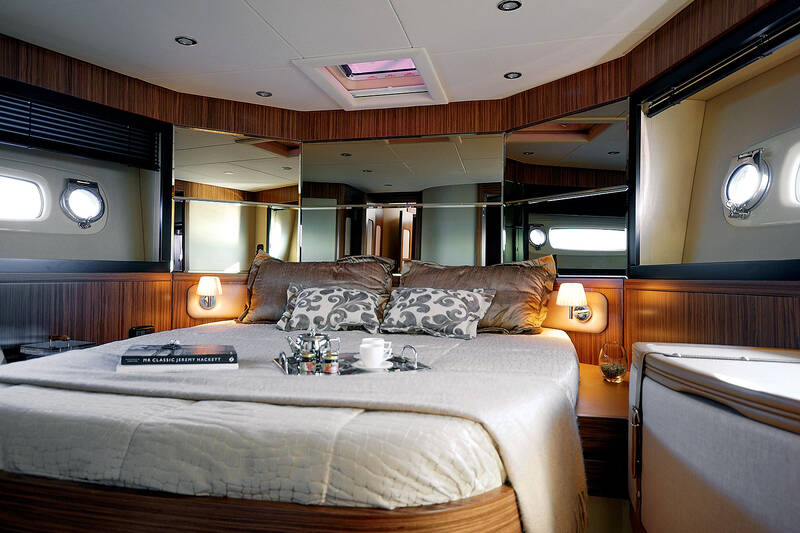

VIP cabin
- Located at the bow
- Central double bed
- Foldaway bed for accessing the locker below
- Two armchairs at the sides of the bed
- Hatchway for accessing the fore sunbed area
- Wardrobe with hanger bar and shelves on port side
- Large windows on both sides, with openable portlights
- Carpeted floor
- Spotlights
- Direct access to guest head
- Venetian blind
- 220V sockets
VIP / Guest head
- Located abaft of the VIP cabin, on starboard side
- Direct access from the VIP cabin or from the lobby
- TECMA toilet
- Washbasin top in marble
- Chromed mixer tap
- Shower: circular enclosure with 1 Plexiglas panel
- Mirror with spotlights
- Wall unit with 2 panels above washbasin
- 1 openable round portlight with Venetian blind
- Laminated floor (walnut finish)
- 220V socket
- Head air extractor: forced extraction (from the shower ceiling panel)
- Head accessories:
- - 1 toilet brush
- - 2 clothes hooks
- - 1 toilet roll holder
- - 1 handrail doubling as a towel-holder

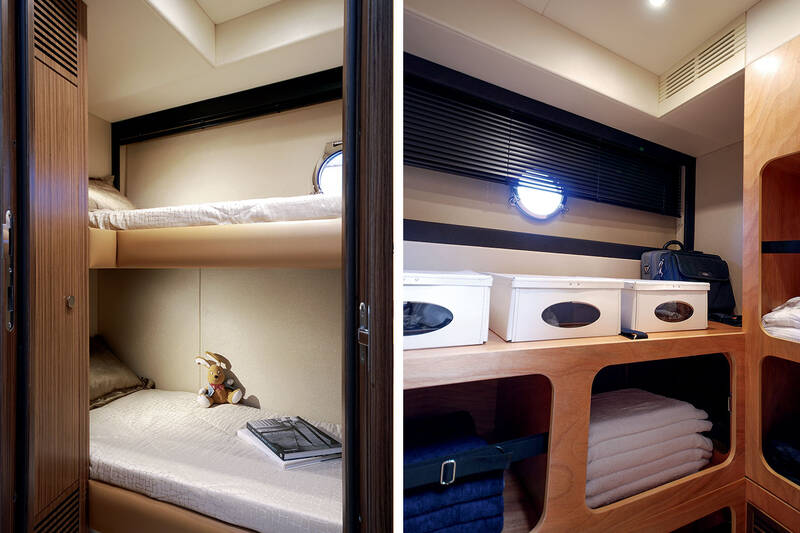

Third cabin
- Located on the port side, with access from corridor
- Two bunk beds
- Openable portlight with Venetian blind
- Carpeted floor
- Spotlights
- Adjustable reading lights
- Wardrobe on stern side of the cabin
- 220V socket
Utility Room
- Located on starboard side, with access from corridor
- Openable portlight
- Carpeted floor
- Spotlights
- Wardrobe on stern side of the cabin
- Large, open storage compartments
- Worktop above storage compartments can be used as base for extra bed (not included)
- 220V socket

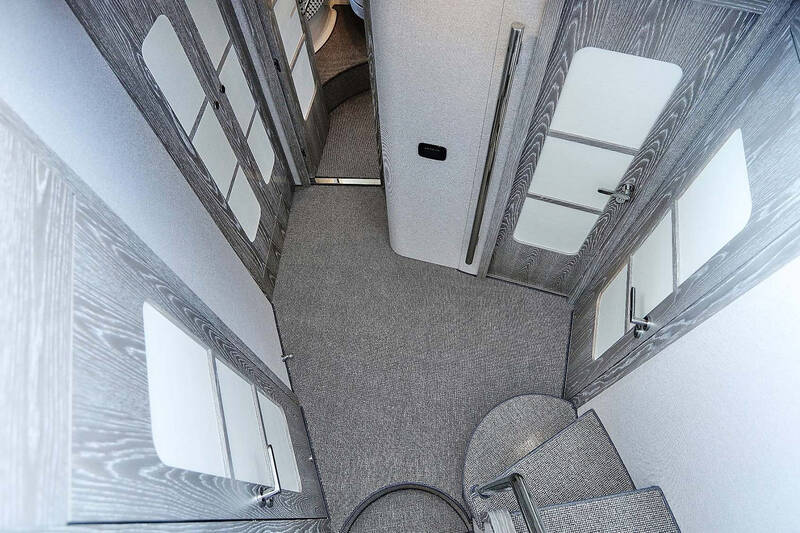

Lobby
- Located midship, with access from ladder descent
- Handrail for stairway
- Large, full-height wardrobe on port side, with space for washer-dryer (not included)
- Wardrobe with shelves under the ladder
- Carpeted floor
- Spotlights
Crew cabin (OPT)
- Located at stern
- Access from cockpit bench, starboard side
- 1 single bed
- Large window astern, with openable portlight
- Wardrobe
- Spotlights lighting
- 220V sockets
- TECMA toilet
- Washbasin with pull-out mixer tap for showering
- Shower with anti-spray curtain and grating
Electric system
Main characteristics
- Onboard voltages:
- - 230V-50Hz AC
- - 24V DC
- - 12V DC (for VHF eguipment and cigarette lighter socket)
- The main boards are in the wheelhouse, engine room and cabin access stairway
- The power circuit breakers for protecting the utilities - 220V and 24V - are in the panel to the right of the ladder leading from the saloon to the lower deck. This panel also contains the 220V AC shore or generatorsource selectors.
- The main panels in the engine room contain additional power circuit breakers for protecting the various 24V DC and 220V AC utilities; two panels are located on the fore bulkhead and one in a central position and astern.
- The alarm panel is on the console on the right side of the wheelhouse
Galvanic current insulation
Generator
- A 3.5 kW 50 Hz generator is provided
Shore power sockets
- 1 shore power socket, 50A, astern
Batteries
- Set of six 24V 270Ah batteries, for services
- Set of two 24V 90Ah batteries, for engines
- Battery 12V 70Ah, for generator
- Electronic battery charger 80A (220 / 110V)
- Battery charger for generator 20A (220 / 110V)
Lights and sockets
- AC sockets: EU type
- DC sockets: cigarette lighter type (wheelhouse, flybridge)
- 24V watertight halogen lighting for outside and LED for inside
- External watertight lights
Electronic navigation instruments
- Wheelhouse:
- - HELMSMAN magnetic compass 12/24V
- - Raymarine Bronze Package
- Flybridge:
- - HELMSMAN magnetic compass 12/24V
- - Raymarine Bronze Package
- For a detailed list of alternative/additional eguipment available, please refer to the Optionals price list
The electronics are constantly being updated, therefore the indicated configuration may be subject to changes.
Bilge system
- 3 automatic bilge pumps (dinette, crew cabin, engine room), with controls on the wheelhouse
- 1 electric bilge pump in owner's cabin
- 1 manual bilge pump in owner's cabin
- 1 manual bilge pump in cockpit's locker
- 3 level alarms
- Rapid pumping of engine room via engine water pump
Fire extinguishing system
- 1 cylinder with nozzle on engines and reversing gears
- Activation handle in cockpit, and emergency key
Fuel system
- 2 connected tanks, 1600 I each (total capacity 3200 I), in aluminum
- Electronic gage in wheelhouse (for starboard tank)
- Optical gage on port tank
- 2 single RACOR 900 filters (decanters) for engines + 1 PFG20 NAUCO filter for generator
- 2 refueling plugs on walk arounds
- 2 vents on bulwarks
- Remote diesel shut-off (engine and generator) via 24V solenoid valve
- Fuel drawing tap on starboard tank
Fresh water system
- A 700-liter stainless steel tank below the bed of the VIP cabin
- Water caps on fore port side
- Level sensor with electronic gage in wheelhouse
- 1 tank vent on the bulwark
- Pressure pump
- 60 I 220 V water heater
- Hot/cold water line: heads, galley, bathing platform shower head, flybridge shower. Cold water only in flybridge washbasin; Cold water only in engine room.
- Fresh water toilet flushing
- System that can be isolated by ACORN manifolds
Black water system
- 2 connected tanks, 175 I each, in polyethylene
- Level sensor (2 levels)
- 2 tank vents on bulwark with anti-odor filters (one for each tank)
- 1 macerator pump
- Suction point from deck walk around
- Tecma toilet (with macerator pump). All the toilets discharge into the tank.
- Sea outlet from tank (manual only)
Gray water system
- Polyethylene tank, 175 I, below the lobby
- Gray water outlet directly into the sea from bulwark raisers (for flybridge washbasin)
- Level sensor (3 levels) with indicator on alarm panel in wheelhouse
- Water discharge: from tank (automatic / manual)
- Diaphragm pump
- Fancoil condensation discharge into auxiliary collection tank and main tank
Seawater system
- Engine cooling system: 2 dynamic seawater intakes -2.5"
- Generator cooling system: submerged outlet: 1 dynamic 1" seawater intake with filter and valve
- Air conditioning cooling system (not included): submerged outlet: 1 dynamic 1" seawater intake with filter and valve
- Chain washing pump: seawater
Engine exhaust system
- Gas exhaust system: submerged engine discharge and minimum bypass on bulwark
- Insulated stainless steel raisers
- Exhaust pipes: structural muffler in GRP
- Water/fumes separator for generator, with side exhaust
Engine room (other)
- Access from engine room via cockpit door and ladder.
- Engine unloading door in cockpit
- Battery housing: 1 tank for engine batteries and 1 tank for service batteries
- Sound-proofing
Ventilation
- Rooms:
- Ventilation of owner's head: forced extraction 24V
- - Ventilation of VIP head: forced extraction 24V
- - Ventilation of galley: extractor fan 24V
- Engine room:
- - air intakes on hull (grating + separator filters)
- - Natural air intake
- - forced extraction with 2 fans 24V, D. 250mm
Air conditioning system (OPT)
- WORLD SPEC water system version
- 1 compressor unit with 60,000 BTU dual compressor, located above the port diesel tank
- 1 seawater pump with relevant seawater intake in engine room
- Distribution:
- - Dinette: 2 evaporators, 9,200 BTU (on starboard side next to refrigerator, and on port side above sofa ceiling panel)
- - Wheelhouse and windscreen:1 evaporator, 18,000 BTU (inside lobby wardrobe)
- - Owner's cabin: l evaporator, 9,200 BTU (starboard wardrobe)
- - VIP cabin: 1 evaporator, 9,320 BTU (port wardrobe)
- - Third cabin: 1 evaporator, 6,200 BTU (in wardrobe)
- - Utility Room: 1 evaporator, 6,200 BTU (in wardrobe)
- - Lobby: 1 evaporator, 4,800 BTU (in wardrobe)
- - Crew cabin: 1 evaporator, 4,800 BTU (in wardrobe)
- A/C controls: 5 power cards and 3 auxiliaries
- Remote control panel in dinette and controls in individual cabins
Equipment
- 1 telescopic boat hook
- No. 5 anchor lines
- 18 m fender lines
- 1 anchor chain stopper
- 6 fenders
- 6 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 wooden model of the boat
- 1 AZIMUT warranty service booklet
- 1 stainless steel cutlery service
- 1 set of china plates
- 1 set of glasses
- 1 set of stainless steel cooking pans
- 4 floating key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 bag for holding the shower tube
- 1 routine maintenance kit for steel
- 1 pin wrench for locking stainless steel pins
