Propulsion system summary
Engines
- Manufacturer Cummins
- Model QSC 8.3
- Max. power 2x 442kW - 600hp
- Propulsion V drive
Performance
- Maximum speed (*) 32 kts
- Cruising speed (*) 28 kts
- Maximum speed consumption (*) 247 l/h
- Cruising speed consumption (*) 170 l/h
Characteristics
- Hull: made with the infusion method, vinylester resin on the outer layers. Architecture with floors and semi-structural hawk made with the infusion method, with PVC sandwich. Deep V hull, variable geometry, 15° deadrise astern.
- Deck: made with the infusion method, with PVC sandwich
- Painting: ISO neopentyl glycol gelcoat

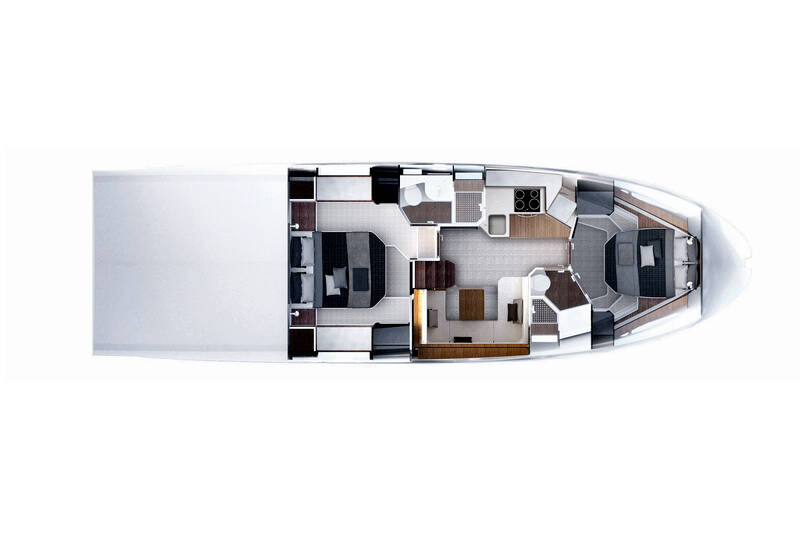

Internal division:
- Owner's cabin with head
- VIP cabin
- VIP cabin / living area head
- Galley
- Lower saloon
Furnishings:
- External cushions in closed cell and dryfill, covered in synthetic fabric with stain protection treatment
- Internal cushions with removable cotton covers
- Headboard and bed surround covered in eco-leather
- Furniture, doors and wall upholstering in BREEZE WARM GRAY OAK-ALPI standard wood essence
- Wall paneling covered in technical fabric
- Carpeted floors
- Ceilings covered in technical fabric
- Venetian blinds

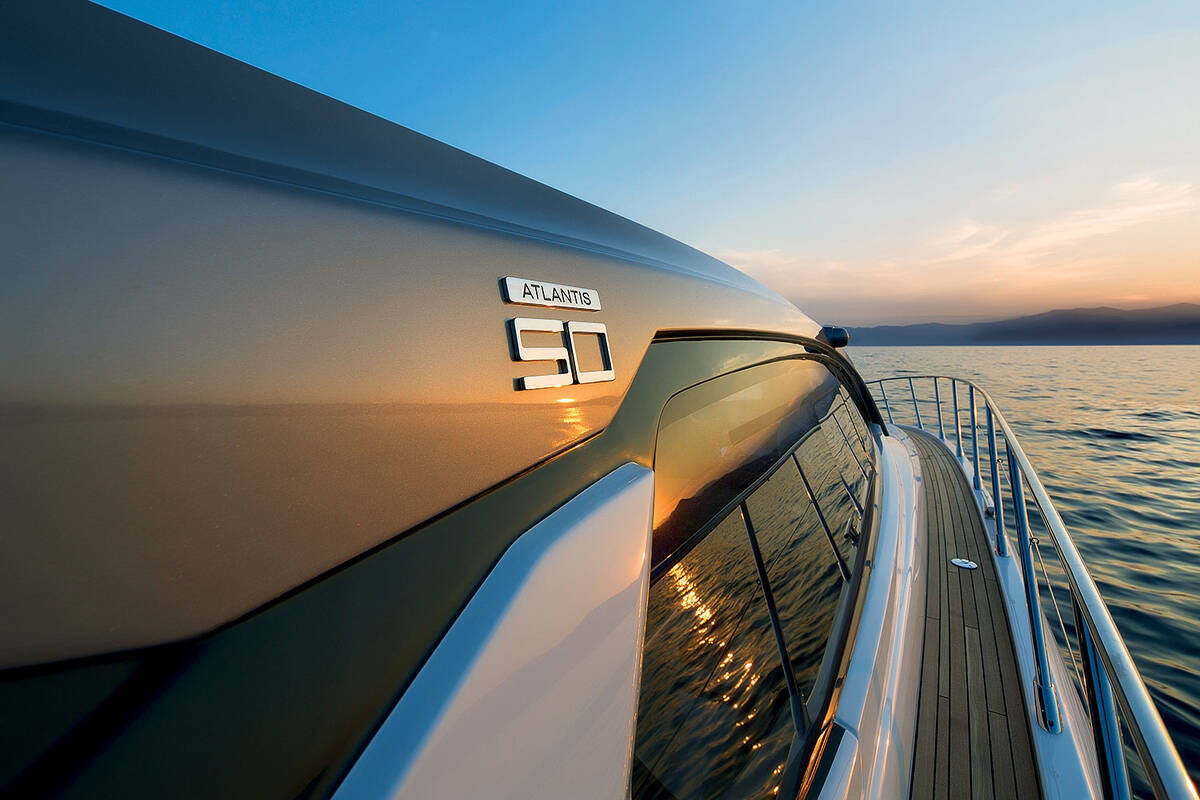

Exterior
Hull and deck
- Accessories in AISI 316 or AISI 304 stainless steel
- Anchor 30kg and chain 40m in galvanized steel (Ø 10mm)
- VHF aerial
- Legally approved audible alarm
- Amidships cleats in stainless steel (2)
- Stern cleats in stainless steel (2)
- Bow cleats in stainless steel (2)
- Hatch with mosquito net and blind
- Rub-rail with steel edge
- Fixed windows on bulwark in owner's cabin and VIP cabin
- Self-draining anchor locker

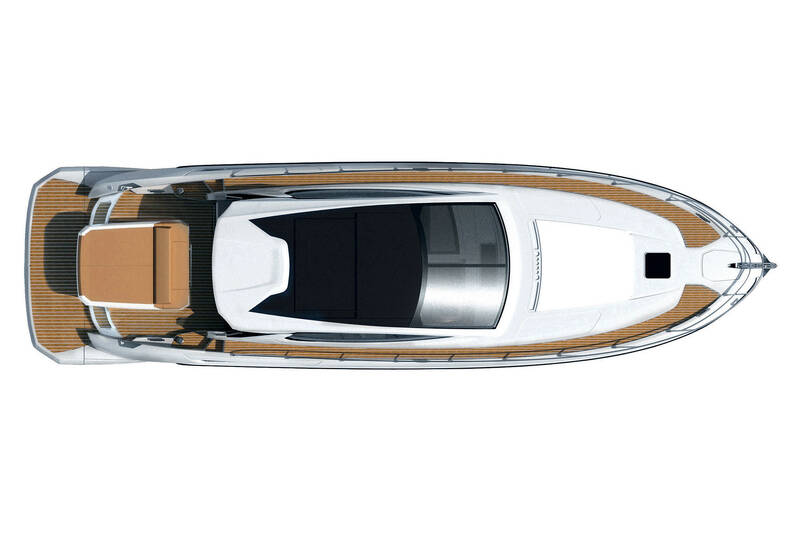

- Hard Top in GRP with hard roof and electrically opened stainless steel structure
- Legally approved riding lights and navigation lights
- Swinging bow roller for stainless steel anchor
- Stainless steel portlights
- Glass windscreen
- Stainless steel stern chocks (2)
- Stainless steel bow chocks (2)
- Non-slip deck and walk arounds
- Cup holder and storage space
- Stainless steel pulpit with guardrail
- Stainless steel supports for lights, flag pole, VHF aerial, audible alarm
- Refueling vent with anti-flame and antispray mesh protection
- Reflueling plugs in chrome-plated brass (2)
- Water refill plug in chrome-plated brass
- Windscreen wipers with washer (2)
- Stainless steel grabrails
- Bow winch/gipsy 1,500W with control button

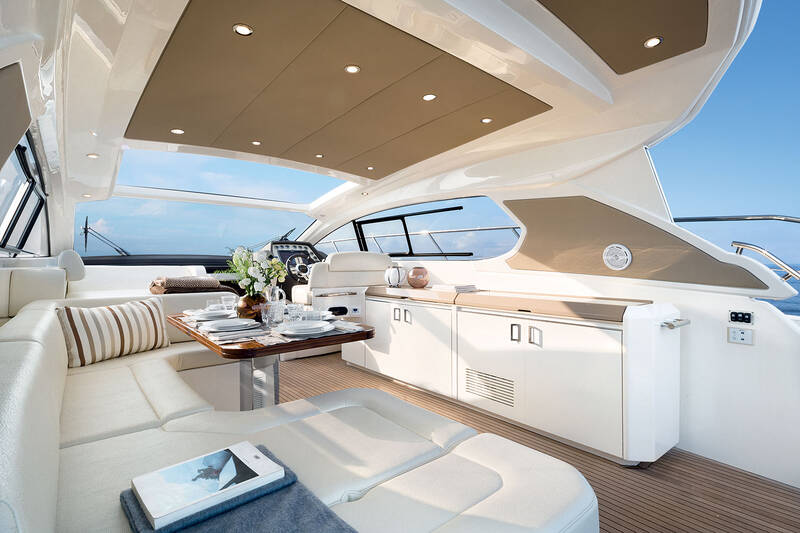

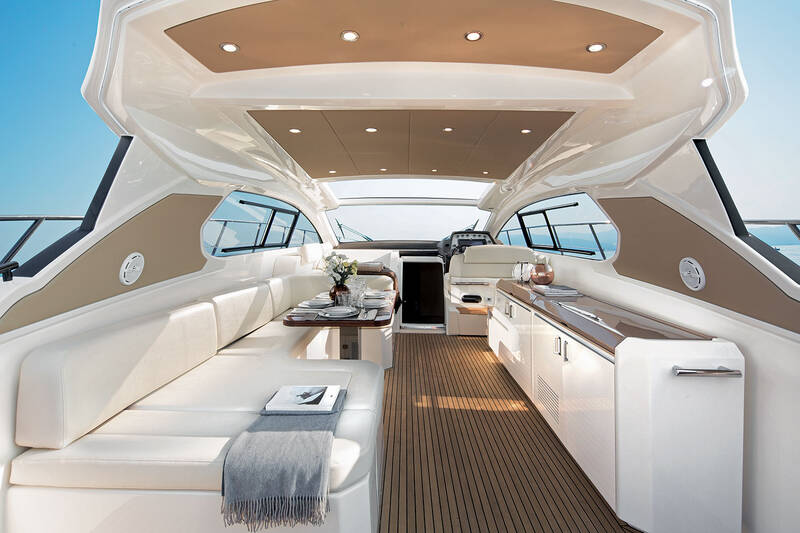

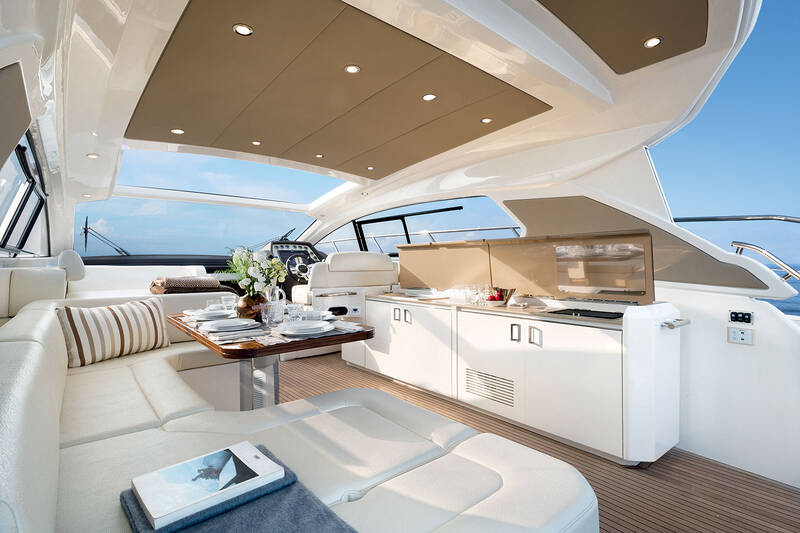

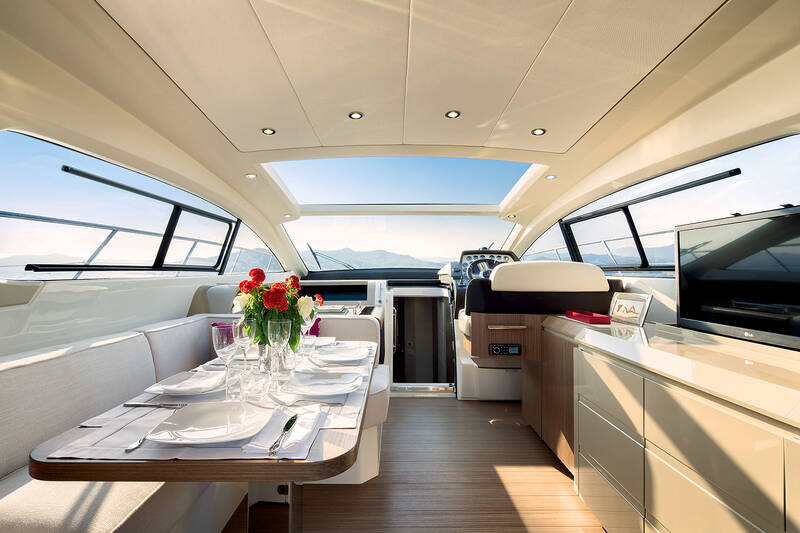

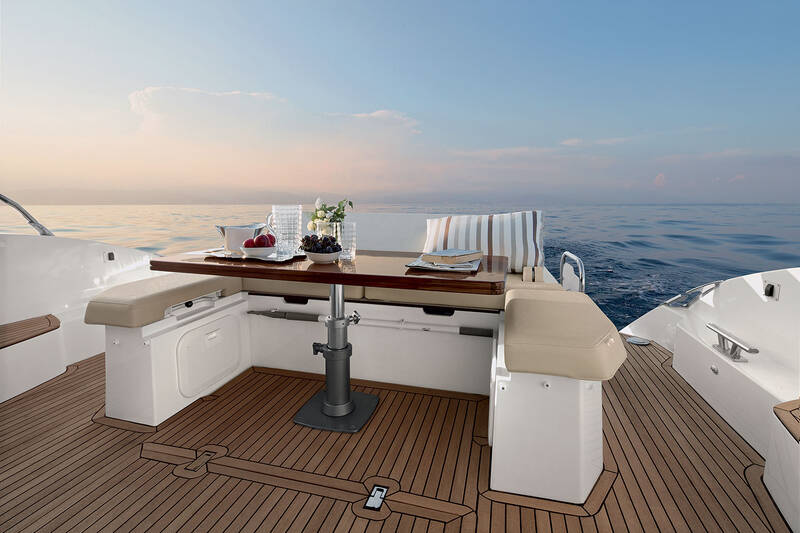

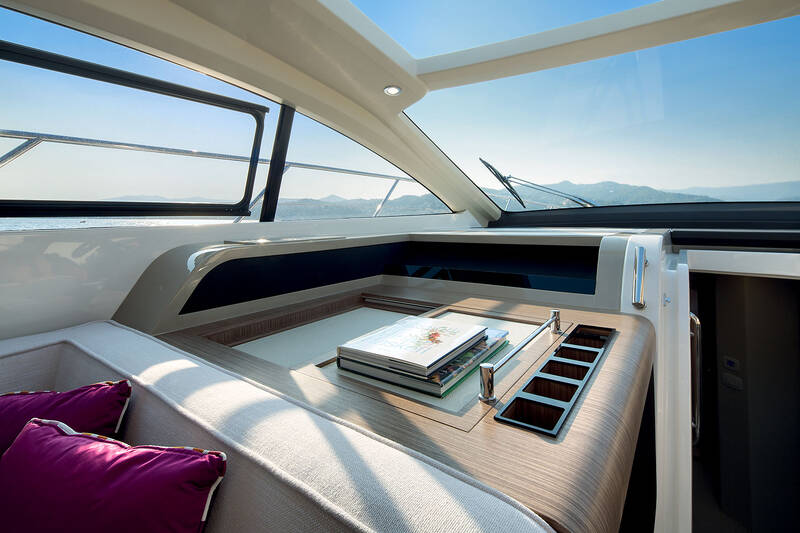

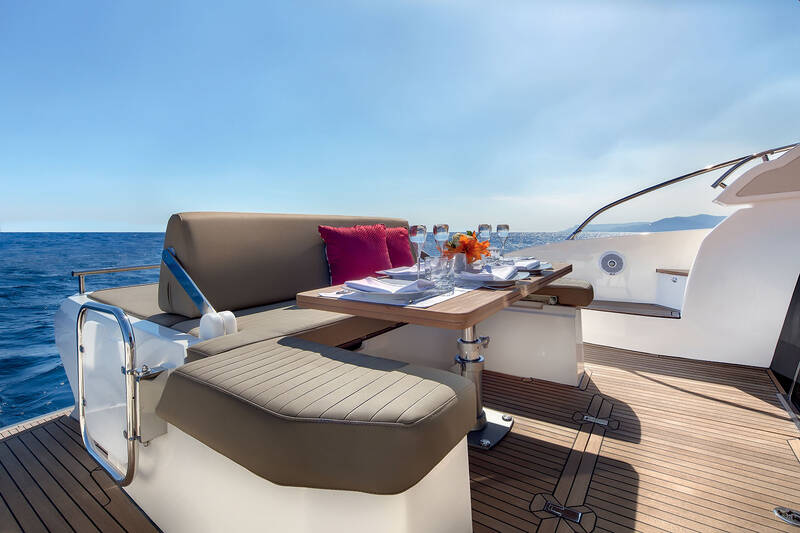

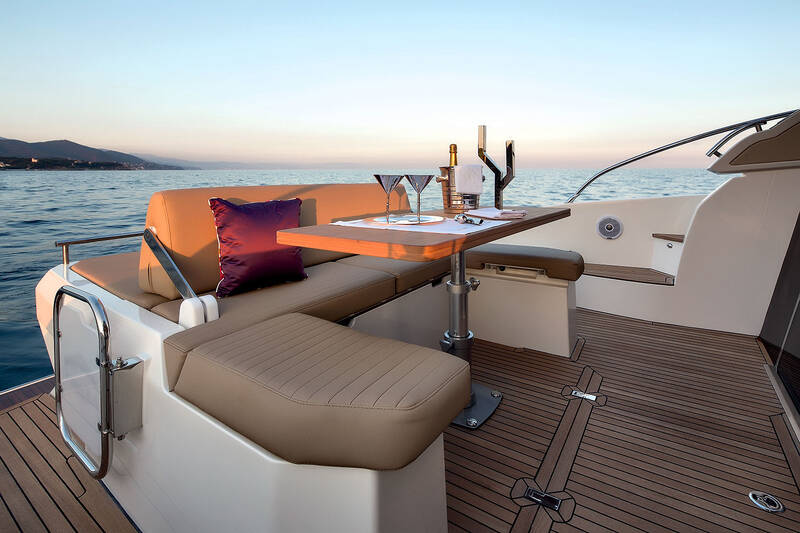

Cockpit / Upper saloon
- Hatch for access to engine room
- Aft gates in stainless steel and Plexiglas (2)
- Shower head with hot/cold mixer tap in bathing platform
- Fixed window for lighting the dinette (skylight)
- Fixed window for lighting the owner's cabin (skylight)
- Afterpeak with access via doors, complete with 24V socket and portable lamp
- Courtesy LED lighting
- Main lighting with flush-mounting LED spotlights
- Cockpit floor and bathing platform in teak

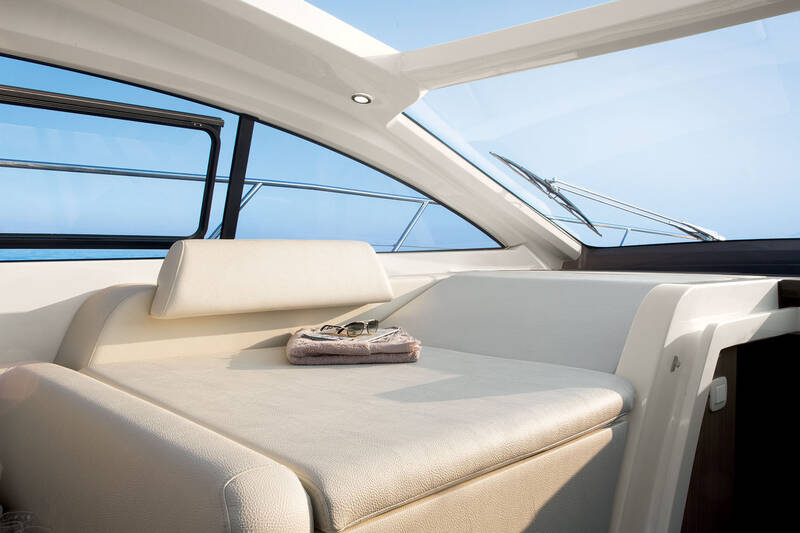

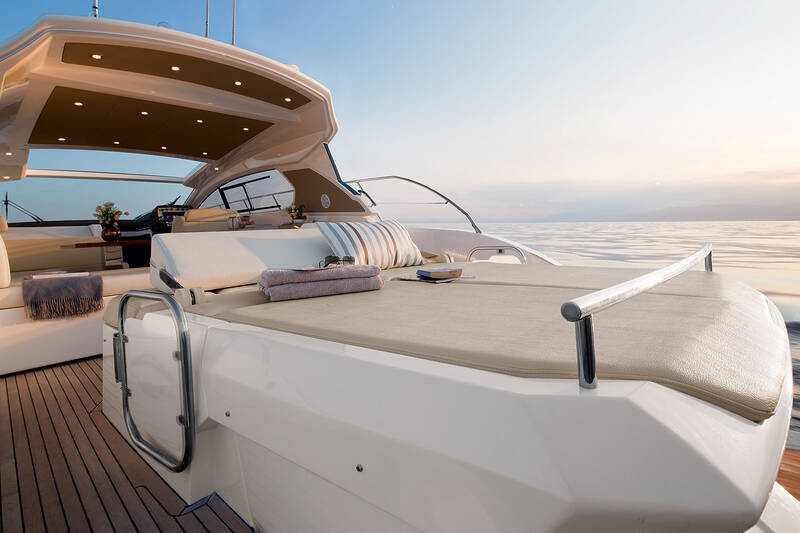

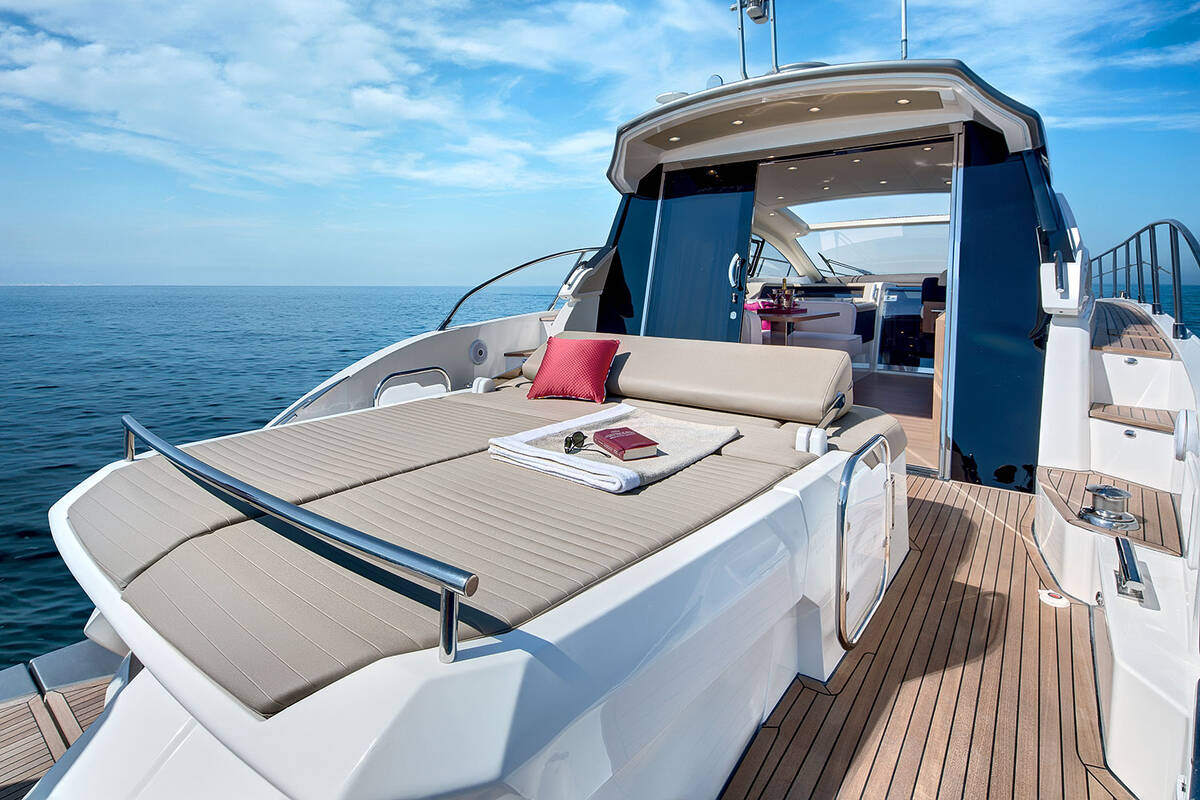

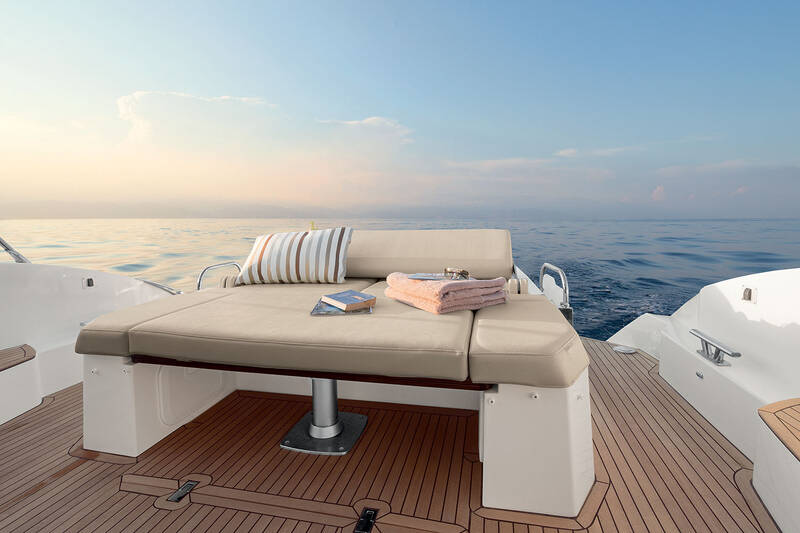

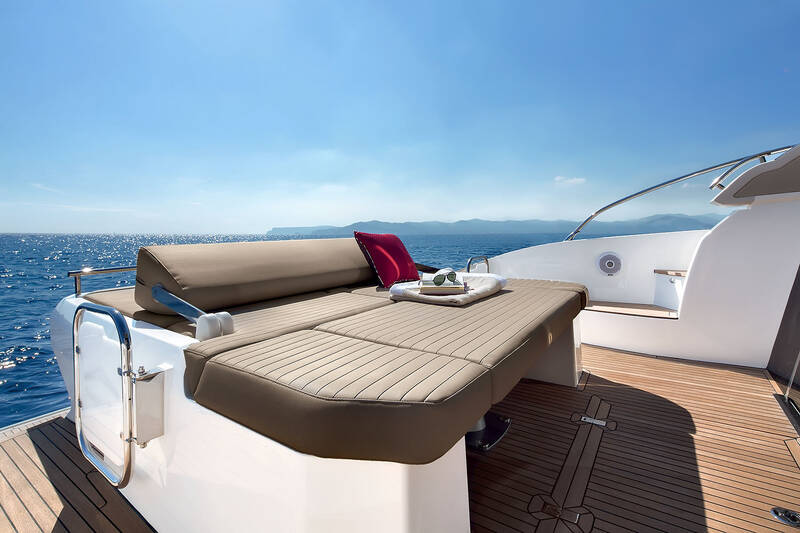

- Aft sunbed area with transformable tilting backrest
- External hi-lo table in teak
- 220V socket
- Shore water intake
- Radio/CD with watertight loudspeakers (2)
- Manual foldaway swimming ladder
- Sliding companionway in gray Plexiglas with lock
- Stainless steel grabrails
- Flush-mounting compartment with shore power sockets 220V – 50Ah (2)
- Three-panel door with curtain

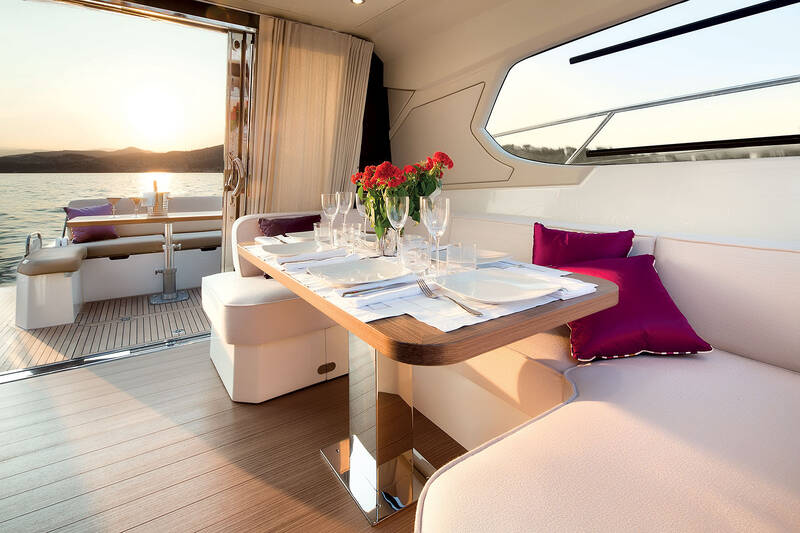

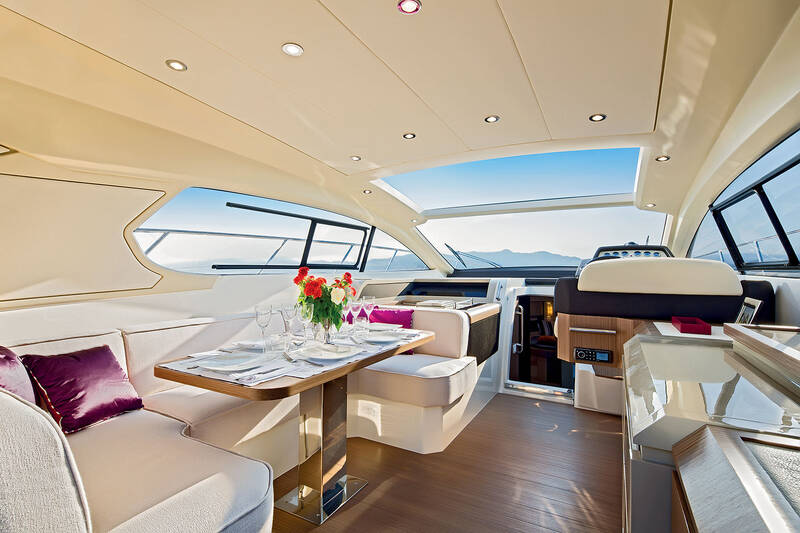

- Saloon floor in wood essence
- "U"-shaped saloon sofa with locker for housing life-raft
- Fixed table in wood essence opposite sofa
- Saloon cabinet in wood essence on starboard side
- READY-TO-INSTALL TENDER (to be confirmed after sea trials):

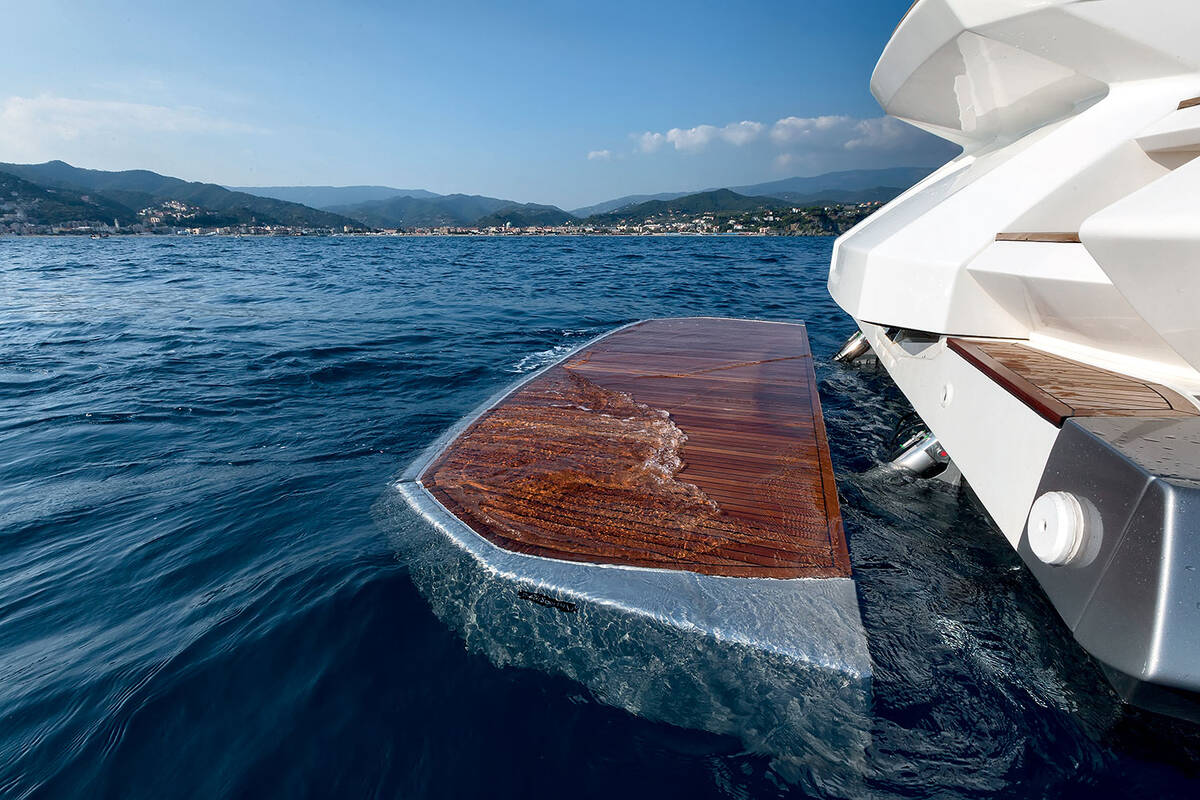

- - WORKING DIMENSIONS OF PLATFORM: 2.85 x 1.14m

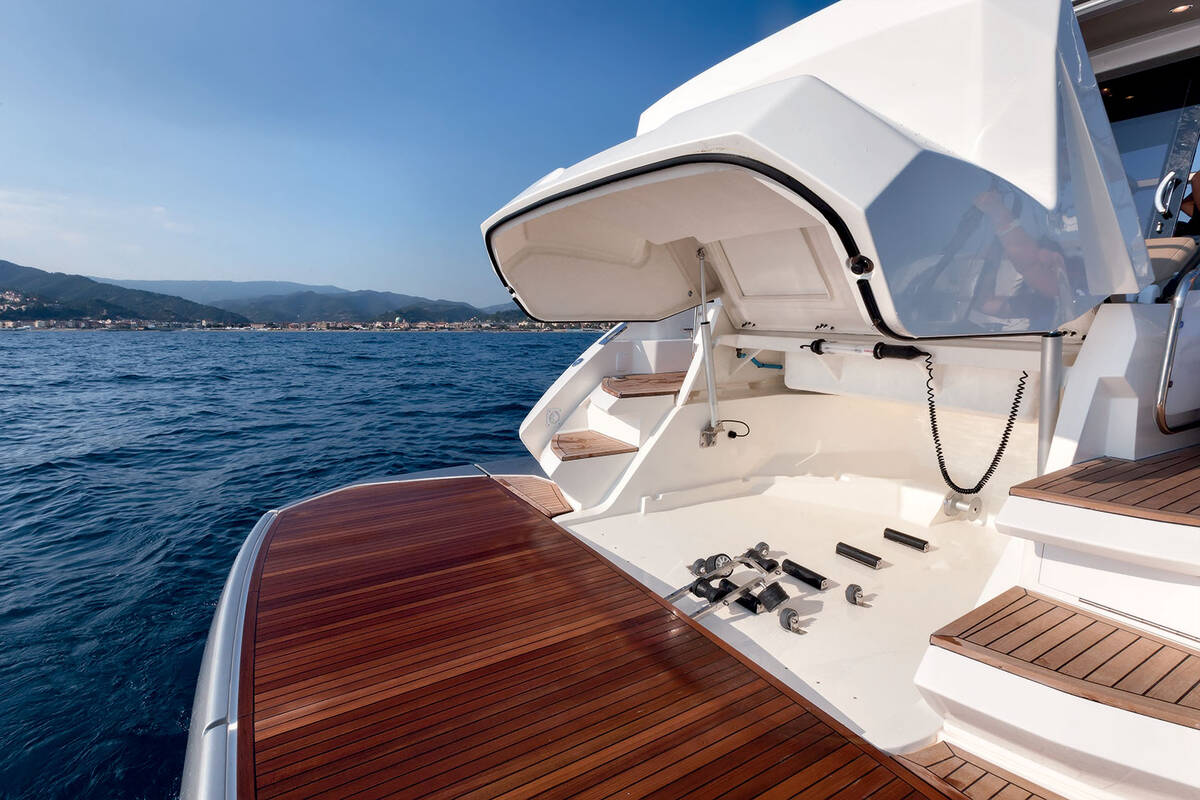

- - GARAGE: 1.47 x 2.40m
- - HYPOTHETICAL PLATFORM TENDER: 2.85 x 1.14m - max. weight 200kg
- - HYPOTHETICAL GARAGE TENDER: 1.47 x 2.40m - max. weight 100kg
- - Garage designed to house a Suzuki XRB 2.4 loa

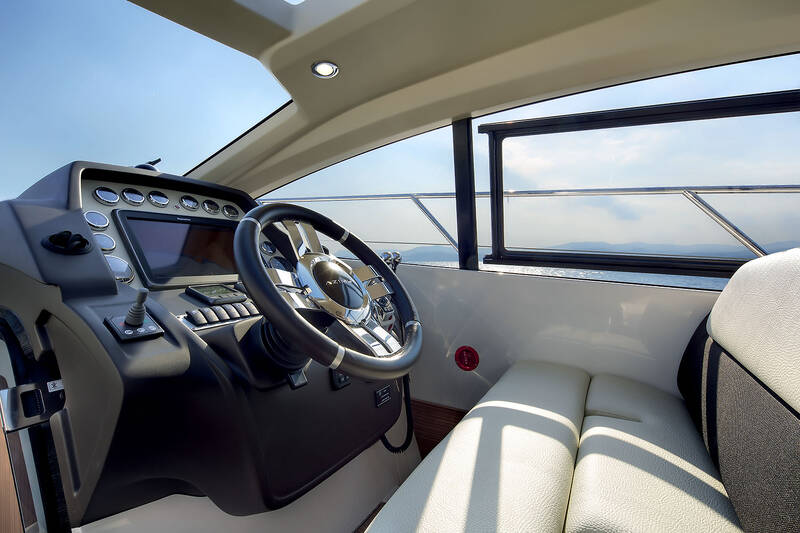

Wheelhouse
- Footrest in teak, with locker
- Remote control for extinguisher in the engine room
- Dashboard and instrument panel painted with mat anti-glare finish
- Fire extinguisher 1kg
- 12V socket
- Dual-position helm seat with foldaway seat
- Instruments:
- - bilge alarms
- - rudder angle
- - Magnetic compass
- - electronic engine controls
- - analogue RPM indicator
- - control of fire extinguishing system status
- - trim tab position indicator
- - watertight switches
- - water tank level
- - fuel tank level
- - oil pressure gage
- - emergency engine OFF button
- - shore power socket connection indicator light
- - cooling water temperature
- - tridata: echo sounder with alarm, total/partial mileage counter, water temperature
- - voltmeter
- - VHF/DSC with loudspeaker
- Fixed power-assisted steering gear with steel steering wheel and leather-covered rim
Interior
Lower saloon
- Direct access to living area head
- Sofa base in reconstituted “striped walnut” veneer with lockers and drawer
- Sofa covered in cotton
- Fire extinguisher 1kg
- Steps leading below deck in reconstituted “striped walnut” veneer
- Flush-mounting LED lighting
- Light switches
- Stainless steel portlights
- Wall units for stowage
- Stainless steel grabrails for ladder access

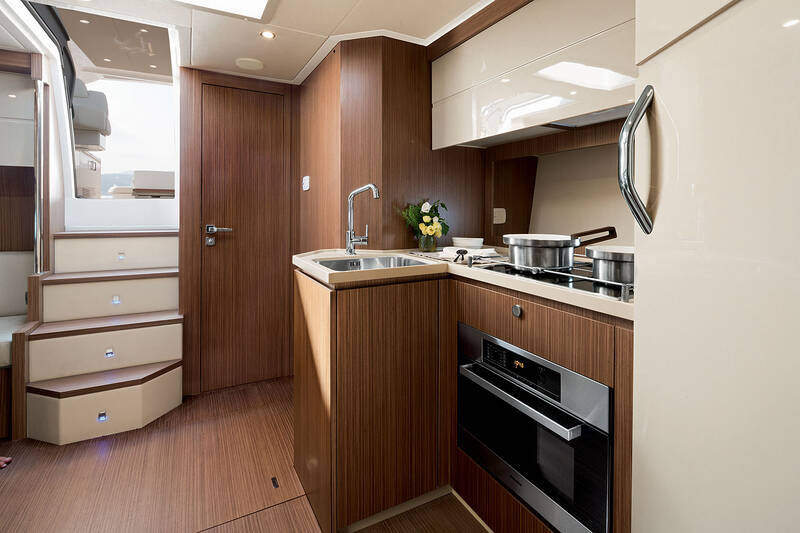

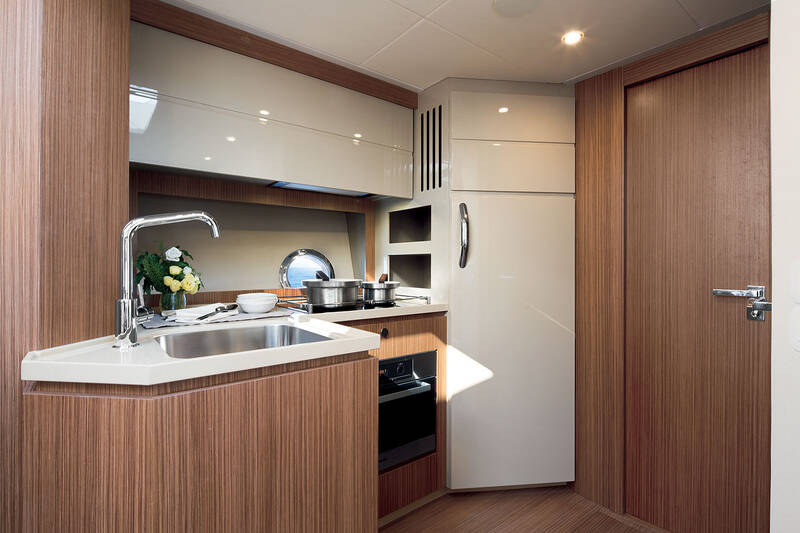

"L"-shaped galley
- Fire extinguisher 1kg
- Galley hood
- Combined microwave/grill oven 220V
- 215-liter built-in refrigerator- 24V
- Flush-mounting LED lighting
- Light switches
- Stainless steel sink and mixer tap
- Stainless steel portlights
- Wall units, cupboards under worktop and storage unit on bulwark
- Ceramic glass 4-hob range and siliconepot holder
- Corian worktop
- 220V socket
- Floor opposite galley in wood essence

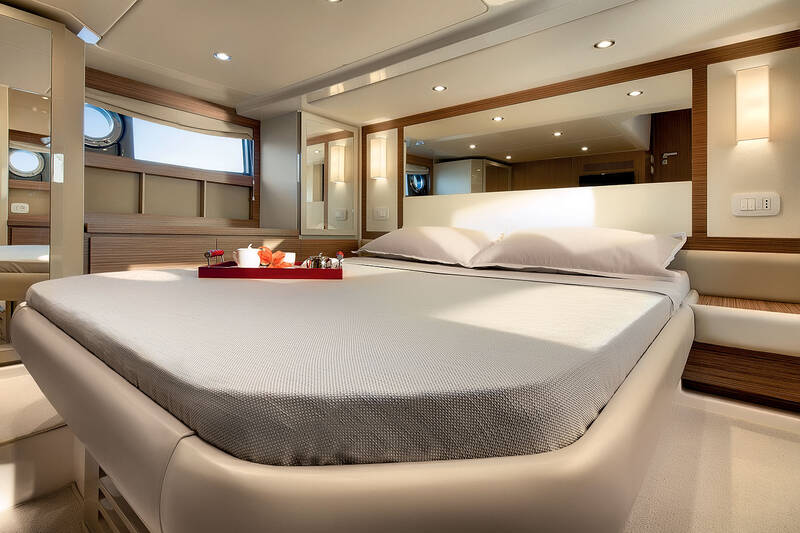

Owner’s cabin
- Wardrobes on bulwark with internal lighting and mirrors on the panels (4)
- Wardrobe / TV cabinet opposite bed
- Bedside tables with storage compartment (2)
- Fire extinguisher 1kg
- Fixed windows on bulwark
- Flush-mounting LED lighting
- Light switches
- Double bed with mattress, bedspread and pillows
- Reading lights
- Night-time lights
- Cabinet with panels on bulwark (both sides)
- Stainless steel portlights (2)
- Wall unit on left-hand bulwark
- 220V sockets (3)
- Mirror on aft bulkhead
- Bed structure in GRP, with locker
- Headboard and bed surround covered in eco-leather
- Open compartments on the bulwarks

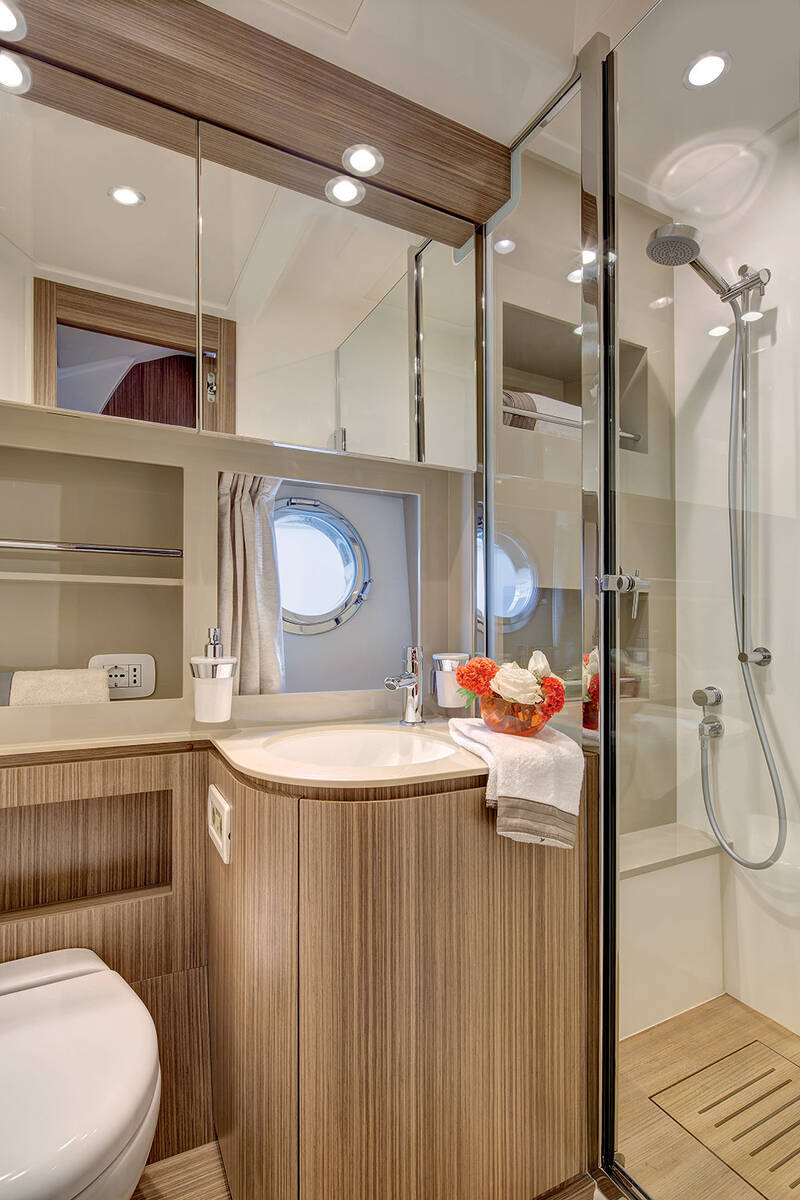

Owner's head
- Separate shower enclosure in glass, with seat and shelves
- Teak grating
- Flush-mounting LED lighting
- Light switches
- Shower mixer tap with slide bar and tube
- Cabinet with washbasin and mixer tap
- Stainless steel portlights
- Wall unit with mirrors
- Corian top
- 220V socket
- Complete head accessories set
- Electric toilet system using fresh water

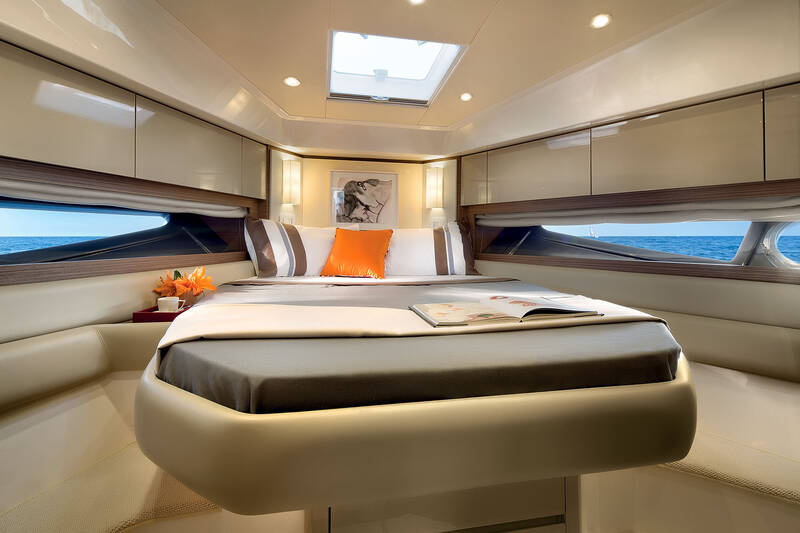

VIP cabin
- Direct access to VIP / living area head
- Wardrobes on bulwark, with mirror on the panels (2)
- Fire extinguisher 1kg
- Fixed windows on the bulwark (2)
- Flush-mounting LED lighting
- Light switches
- Double bed with mattress, bedspread and pillows
- Reading lights
- Night-time lights
- Stainless steel portlights (2)
- Wall units on the bulwark
- 220V socket
- Bed structure in GRP, with drawers and locker
- Headboard and bed surround covered in eco-leather
VIP / living area head
- Separate glass shower enclosure
- Teak grating
- Flush-mounting LED lighting
- Light switches
- Shower mixer tap with slide bar and tube
- Cabinet with washbasin and mixer tap
- Corian top
- Stainless steel portlights
- Wall unit with mirrors
- 220V socket
- Complete head accessories set
- Electric toilet system using fresh water
Systems
Electric system
- AGM generator battery 12V – 90Ah (1)
- AGM engine batteries 12V – 90Ah (2)
- AGM service batteries 12V - 200Ah (2)
- Automatic battery charger 24V - 60A
- Battery charger for generator 12V – 12A
- Ventilated battery compartments
- Electric battery cut-out controls in the dinette
- Service / engine parallel control in wheelhouse
- Switches for selecting shore or generator power supply (2)
- Digital control of the voltage and the current consumption AC/DC
- Visual indication of input voltage polarity from the shore
- 24V / 12V converter for 12V accessories (VHF, audio system, cigarette lighter, etc.)
- Mase generator 5 Kw – 50Hz
- Galvanic current insulation system
- Protection devices with circuit breaker on generator and shore power socket lines
Water supply and bilge system
- Bilge and engine room alarm, with visual and sound indicator on the wheelhouse
- 30-liter water heater
- Bypass for direct shore connection
- Automatic pressure pump in the engine room, with filter and check valves on the hot/cold water system for macro-areas
- Automatic electric bilge pump for internal compartments (1)
- Manual bilge pump for internal compartments (1)
- Manual bilge pump for engine rooms (1)
- Special electric pump for intake of excess oil and fuel (1)
- Electric bilge pumps for engine room - automatic and/or manual operation with controls in wheelhouse (1)
- Automatic electric bilge pump for engine room (1)
- Fresh water tank (420 liters)
- Gray water collection tanks (2 x 9 liters) with electric drainage pump
- Bypass valve for engine bilge emergency suction
Fuel system
- Solenoid valves on the feeder lines, to immediately stop the fuel flow
- Diesel settling filters (2)
- Fuel tanks (2 x 850 liters) with visual indicator
Engine room
- Access hatch from cockpit
- Overhead lighting with portable lamps
- Automatic and manual fire extinguishing system
- Air extraction system activated via differential thermostat
- Thermal/acoustic insulation
- Complete cathode protection
- Access ladder in stainless steel, with nonslip rungs
- Submerged outlets
- Safety valves on the seawater intakes
Propulsion system
- Stainless steel propeller shafts Ø 60mm (2)
- 5-blade propellers (2)
- Electro-hydraulic trim tabs (2)
- Shaft supports Ø 60mm (2)
- Steel rudder (2)
- Thru-hulls fittings for shaft Ø 60mm (2)
Equipment
- 1 telescopic boat hook
- 2 anchor lines
- 18 m fender lines
- 1 anchor chain stopper
- 6 fenders
- 6 black fender covers
- 1 Owner's Manual
- 1 AZIMUT document holder
- 1 white book,2014 edition, English
- 1 AZIMUT YACHTS welcome kit box
- 1 YACHTIQUE booklet
- 1 AZIMUT warranty service booklet
- 2 floating key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 bag for holding the shower tube
