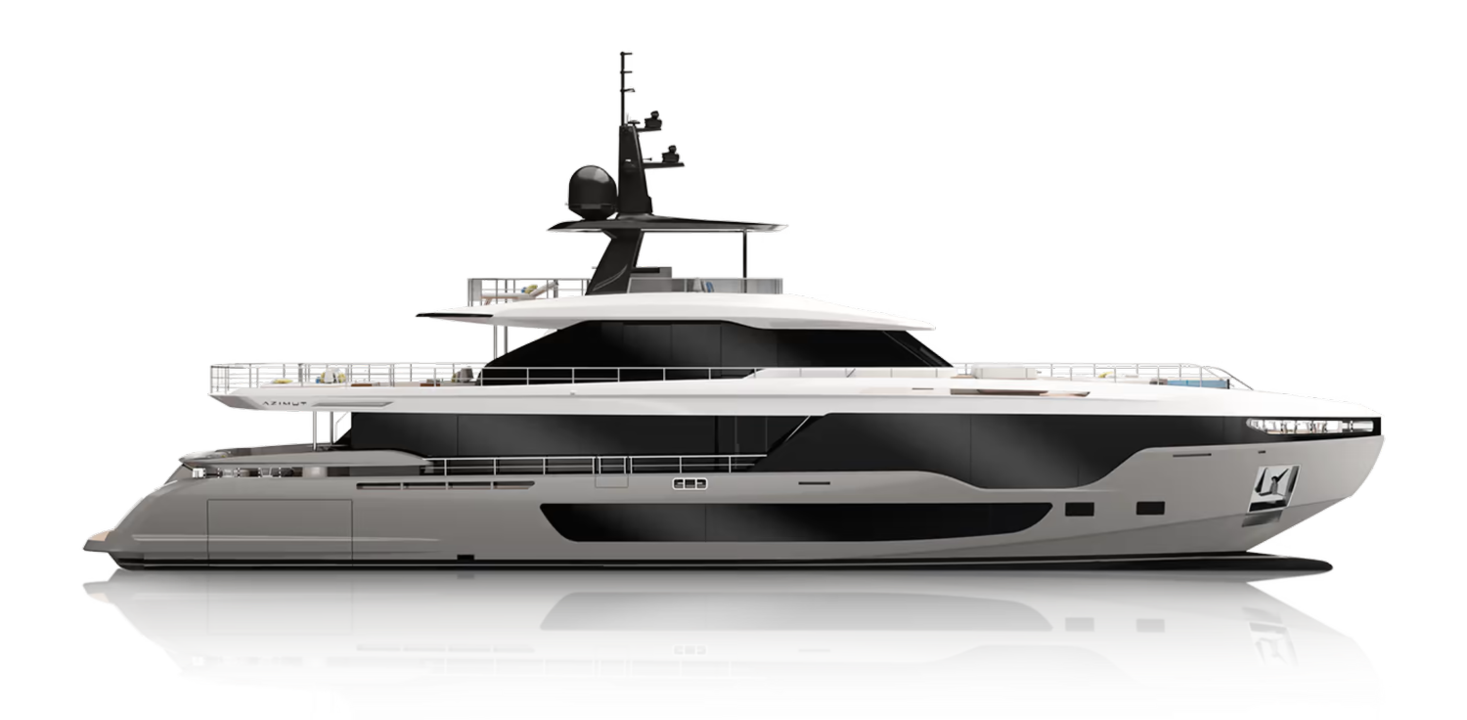

Flybridge
- Flybridge access ladder:
- - Accessibility: from cockpit
- - Position: starboard
- - Material: fiberglass
- - Steps finish: teak
- Other: with stainless steel side handrail
- Flooring:
- - Material: fiberglass with non skid
- Flybridge screen:
- - Material: Plexiglas
- - Frame material: aluminum
- - Frame finish: painted Black
- Radar arch:
- - Material: carbon
- - Inserts material: fiberglass
- - Radar arch finish: gelcoat with painted inserts
- Sofas and sunbed areas (Dining area):
- - Type: sofa with removable cushions for outdoors
- - Position: port to center of flybridge
- - Shape: L-shaped
- - Quantity: One
- - Number of seats: five
- - Equipment: protective cushion cover
- - Other: storage under the seating areas
- Sofas and sunbed areas (Bow area):
- - Type: sofa with removable cushions for outdoors
- - Position: port
- - Shape: L-shaped
- - Quantity: One
- - Number of seats: Four
- - Equipment: protective cushion cover
- Lighting: LED bar
- Other: storage under the seating areas
- Tables:
- - Quantity: One
- - Position: port, arranged longitudinally
- - Material: teak
- - Finish: matt
- - Movement: fixed
- Bar cabinet:
- - Quantity: One
- - Position: starboard to center of flybridge
- - Material: fiberglass
- - Complete with: washbasin with collapsible faucet, fridge, waste container, hot/cold water
- - Panels: fiberglass
- - Top: fiberglass
- - Shelf: teak
- Control station:
- - Type: Helm seat
- - Position: starboard
- - Movement: manual
- - Equipment: protective cushion cover
- Instrument board:
- - Position: starboard
- - Material: fiberglass
- - Finish: painted
- Navigation instruments: Raymarine
- - Composed of: engine controls (throttles), joystick, engine ignition control, horn control, bow thruster control, trim tabs control, chain meter counter, Bronze version electronic navigation instruments, engine panel, glass rack, 12 V socket, adjustable steering wheel, VHF communication system
- Flybridge access door:
- - Position: starboard
- - Material: Plexiglas
- - Frame material: aluminum
- - Frame finish: painted
- Other:
- - Light mast: painted black
- - Speakers: Two
- - Searchlight: manual
- - Lighting: courtesy lights
- - Azimut logo
- - Model logo
- - navigation lights
- - Scuppers
Bow and side walk arounds
Bow
- Chain locker:
- - Quantity: One
- - Position: bow, in technical mooring area
- - Accessibility: through painted aluminum watertight hatch with perimeter cable duct and water drains
- - Equipment: Stainless steel stairs leading down, locker LED internal lighting, drains
- Sunbed area:
- - Type: sunbed area built in the superstructure fiberglass, with removable cushions for outdoors
- - Position: bow, central
- - Shape: trapezoidal
- - Quantity: One
- - Number of seats: three
- - Movement: fixed
- - Equipment: protective cushion cover
- - Other: Glass racks (four in total), two storage lockers under the cushions
- Sofa:
- - Type: sofa built in the superstructure fiberglass, with removable cushions for outdoors
- - Quantity: Two
- - Position: fore + aft at base of windscreen
- - Shape: linear
- - Number of seats: six
- - Equipment: protective cushion cover
- - Other: aesthetic perimeter light, glass racks (six in total), manual collapsible backrest on fore sofa
- Flooring:
- - Material: teak
- Pulpit:
- - Position: fore perimeter pulpit
- - Material: stainless steel
- - Pulpit diameter: 40 mm
- - Stanchion diameter: 30 mm
- Fore cabin hatch / escape:
- - Position: fore, central, under the sunbed area cushions
- - Quantity: One
- - Accessibility: from owner's head through watertight hatch with perimeter cable duct and water drains
- - Material: aluminum with plex insert
- - Finish: painted white
- - Lock: with star key positioned outside to get onboard
- Other:
- - Scuppers
- - Speakers: two at the base of the sunbed area
- - Windscreen windows covers
- - Windscreen wipers: four wipers
Walk arounds
- Lockers:
- - Position: port + starboard, forward of the deckhouse
- - Quantity: Two
- - Accessibility: from walk arounds through hatches provided with closure and perimeter gasket
- - Other: internal drainage
- Side doors (Main deck):
- - Position: port + starboard, with direct access from port side to galley, crew area and wheelhouse, from starboard side to corridor in front of galley
- - Quantity: Two
- - Movement: manual sliding towards the stern
- Side doors (Engine room):
- - Location: starboard, with direct access to engine room through ladder Quantity: One
- - Movement: manual with pantograph system towards the bow
- Side windows:
- - Position: port + starboard
- - Fixed windows along the entire stern perimeter of the deckhouse and finished with full-height tempered glass, secured to the GRP structure of the deckhouse through structural gluing
- Side boarding doors:
- - Position: port + starboard 1 per side, midship
- - Quantity: Two
- - Movement: manual with internal safety lock
- - Material: stainless steel
- Filling plugs and sockets (diesel):
- - Position: port + starboard abaft the walk around, accessible after removing teak grating
- - Quantity: Two
- Refilling and sockets (fresh water):
- - Position: port + starboard abaft the walk around
- - Quantity: Two
- Refilling and sockets (black water):
- - Position: port, forward of the walk around
- - Quantity: 1
- Flooring:
- - Material: teak
- Other: teak grating
- - Pulpit:
- - Position: side grabrails connecting the stern mooring station to midship external boarding steps
- - Material: stainless steel
- - Pulpit diameter: rectangular section, 60x30 mm
- - Stanchion diameter: 30 mm
- Rub-rail:
- - Position: on longitudinal sections of the sides
- - Material: gray PVC
- - Central insert: stainless steel
- Other:
- - Scuppers: two on forward end of walk around, two at aft end of walk around
- - Lighting: LED fix spotlight on ceiling
Cockpit and platform/garage
Cockpit
- Access onboard:
- - Quantity: one through extendable gangway located on starboard bulwark
- Gangway:
- - Quantity: One
- - Position: starboard
- - Length when extended 4425 mm
- - Material: stainless steel + teak
- - Movement: hydraulic through electro hydraulic control unit
- - Power supply: 24 V DC
- - Max. capacity: 150 kg
- Gates:
- - Position: port + starboard, built in the stern pulpit
- - starboard gate for: boarding from shore, access to platform (with gangway retracted)
- - port gate for: plat- form access
- - Quantity: Two
- - Material: stainless steel with glass inserts
- Bar cabinet:
- - Position: port, opposite of the flybridge access ladder
- - Quantity: One
- - Material: fiberglass
- - Complete with: washbasin with collapsible faucet, waste container, hot/cold water
- - Panels: fiberglass
- - Top: fiberglass
- Lighting: LED strip at base of cabinet
- Flooring:
- - Material: teak
- - removable grating in teak in front of access door with water drainage function in case of cockpit flooding
- Flybridge support struts:
- - Material: stainless steel
- - Finish: painted Black
- - Quantity: Two
- - Shape: square section
- Other:
- - Scuppers
- - Speakers: on ceiling
- - Lighting: LED fixed spotlights on ceiling
- Sofas and sunbed areas:
- - Type: sofa
- - Position: port + starboard, two sofas arranged longitudinally
- - Quantity: Two
- - Total number of places: eight, six on sofas + two folding chairs
- Tables:
- - Position: central, arranged longitudinally
- - Quantity: One
- - Material: teak with stainless steel leg
- - Movement: fixed
- - Compartment under the stair:
- - Composed of: one fiberglass locker with manual bilge controls
- Engine room:
- - Accessibility: through watertight hatch
- - Position: port
- - Material: aluminum
- - Finish: painted
- Other: with drains
- Saloon door:
- - Manual flat watertight saloon door
- - total number of panels: three
- - number of openable panels: Two
- - Material: stainless steel
- - Glass: gray
- Lock: with internal and external key with internal side release
- Other: opening with panel sliding from starboard towards port
Platform
- Garage door:
- - Material: door in composite, non-walkable
- - Finish: gelcoat
- - Dimensions when closed: 3500 x 1150 mm (11' 6'' x 3' 9'')
- - Dimensions when open: 3500 x 1150 mm (11' 6'' x 3' 9'')
- - Movement: hydraulic through electro- hydraulic control unit
- - Power supply: 24 V DC
- Ladder:
- - Accessibility: on platform through double steps built in the deck
- - Position: port + starboard
- - Material: fiberglass
- - Steps material: teak
- Lighting: Walkway lights
- Lockers
- - Accessibility: from platform
- - Position: port + starboard
- - Quantity: five
- - Other: they contain water connection, shore power socket, external shower head
- Flooring:
- - Material: fiberglass
- - Finish: teak with slits for rapid water drainage
- - Dimensions: 5300 x 1700 mm (17' 5'' x 5' 7'')
- Recommended dinghy in garage:
- - Dinghy model (OPT): Azimut-Pirelli J39 / Williams SJ395 LOW PROFILE / Williams SJ415 LOW PROFILE
Wheelhouse
- Location: central raised above the main deck
- - Accessibility: port side: from galley / crew area
- - starboard side: from saloon
- Control station:
- - Type: electrically adjustable helm seat
- - Position: central
- - Movement: electric
- - Equipment: collapsible footrest, fixed to the seat structure
- Instrument board:
- - Position: central
- - Material: fiberglass
- - Navigation instruments: Bronze package
- - Composed of: engine controls (throttles), engine ignition control, fixed steering wheel, VHF communication system, bow thruster control, horn control, trim tabs control, magnetic compass, glass rack
- - Other: two swinging air conditioning outlets, storage compartment on star- board side of dashboard, mobile phone resting plane on port side of dashboard
- Flooring:
- - Material: carpet
- Lighting:
- - Type: LED fixed spotlight on ceiling with additional red light LEDs for night navigation
- Power sockets:
- - electric: one on starboard side of the dashboard on plotting table
- - USB: one, on port side of the dashboard
- Air conditioning:
- - Fancoils position: port + starboard of wheelhouse
- - Fancoils quantity: Two
- - A/C control panel: shared with saloon control
- Outlets: windscreen and outlets on dashboard sides
Corridor / Lower deck stairs
- Location: longitudinal from the ship axis
- - Accessibility: from starboard corridor of main deck
- Furnishing:
- - Coating walls: lacquered with wood essence inserts
- - Steps: wood essence
- - Flooring: carpet
- Lighting:
- - Type: LED fixed spotlight on ceiling
- - LED swinging spotlight on ceiling
- - courtesy LED strip on steps
- Handrail:
- - Material: stainless steel
- - Coating: Leather
Day toilet
- Location: central
- - Accessibility: from starboard corridor
- Furnishing:
- - Washbasin cabinet base: lacquered with built-in storage compartment Coating walls: lacquered
- - Washbasin top: lacquered
- - Wall unit: lacquered built-in the coating wall
- Mirror
- Washbasin:
- - Quantity: one, built-in the cabinet base
- - Material: ceramic
- Toilet: Tecma
- Faucets:
- - Washbasin: wall blender
- Lighting:
- - Type: LED fix spotlight on ceiling
- Socket: for the lights
- Flooring:
- - Material: iroko
- Head accessories:
- - toilet paper roll holder, soap dispenser, toilet brush holder
- Air extraction: on ceiling with discharge towards the outside of the boat
Galley
- Location: port on main deck
- - Accessibility: through sliding door on port walk around, or through internal starboard corridor
- Furnishing:
- - Bulkheads: wood essence
- - Ceiling panels: lacquered
- - Cabinet base: lacquered with internal storage, panels, shelves with anti-roll system
- - Worktop: Avonite
- - Wall unit: lacquered with internal storage, panels, shelves with anti-roll system
- Sink:
- - Quantity: one, double basin
- - Material: stainless steel under top
- - Faucets: single control mixer
- Lighting:
- - Type: fixed LED spotlight on ceiling
- - LED strip under wall unit for lighting the worktop
- - three sockets above worktop
- Flooring:
- - Material: vinyl
- Air extraction:
- - Type: air suction through hood located above the hob
- Air conditioning:
- - Fan-coils quantity: One
- - A/C control panel: for independent control in the galley
Saloon / Dining room
Saloon
- Location: aft of the main deck, forming a single space with the dining area
- - Accessibility: from aft saloon door
- Furnishing:
- - Coating walls: lacquered with wood essence inserts
- - Ceiling panels: faux leather
- Furniture:
- - Description: storage cabinet with panels and shelves
- - Material: wood essence with lacquered inserts
- - Position: port + starboard aft of saloon
- - Quantity: Two, one per bulwark
- - Table: square pouf with tray
- Sofa:
- - Quantity: three
- - Description: sofas located on port side of saloon, arranged in "C" shape
- - Material: fabric
- - Position: three sofas, as follows: three- seater sofa on port bulwark arranged longitudinally, two-seater sofa at fore port side arranged transversally, two seater sofa at aft port side arranged transversally
- Armchair:
- - Quantity: Two
- - Description: saloon armchair
- - Material: fabric
- - Position: in front of starboard side sofas
- Flooring: carpet
- Lighting:
- - Type: fixed LED spotlights on ceiling
- - vertical back-lighting LED strip at fore and aft ends of saloon
- Side window curtains:
- - Type: manual packet
- - Position: port + starboard aft of saloon
- - Total quantity: Two
- Saloon door blind:
- - Type: fabric
- - Position: saloon aft
- - Total quantity: One
Dining
- Location: central of main deck to form a single space with the saloon
- - Accessibility: from saloon aft door, from side sliding door on starboard walk around
- Furnishing:
- - Coating walls: wood essence with lacquered inserts
- - Ceiling panels: faux leather
- Dining table:
- - Description: oval table
- - Material: wood essence
- - number of places: ten
- Chairs:
- - Material: wood essence
- - Fabric coating
- - Quantity: ten
- Flooring: carpet
- Lighting:
- - Type: fixed LED spotlights on ceiling
- - vertical back-lighting LED strip at fore and aft ends of saloon
- - ceiling light above dining table
- Side window curtains:
- - Type: manual packet
- - Position: port + starboard aft of saloon
- - Quantity: Two
- Other: concealed serving hatch through sliding wood essence wall
Owner's cabin
- Location: forward of main deck
- - Accessibility: from starboard corridor of main deck
- Furnishing:
- - Bulkheads: wood essence with lacquered inserts
- - Ceiling panels: faux leather
- Wardrobes:
- - Description: one main wardrobe with panels and shelves on starboard bulwark and one full-height wardrobe behind the access door
- - Quantity: Two
- - Material: wood essence
- - Internal lining: laminate
- - Position: starboard, forward side of cabin
- Bedside tables:
- - Description: built in the headboard, each one equipped with drawer, lights control and socket
- - Quantity: Two
- - Material: lacquered
- - Location: port + starboard
- Mirror: full-height in front of the owner's bed with built-in TV
- Bed:
- - Description: fixed
- - Quantity: One
- - Size: Double bed
- - Number of seats: Two
- Storage
- Mattress: with pillow, bedspread
- Flooring:
- - Material: carpet
- Lighting:
- - Type: wall lighting on starboard side of headboard
- - lamp-shade on port side of headboard, LED fixed spotlight on ceiling
- - LED swinging spotlight on ceiling
- - courtesy LED strip at bed base, bedside tables, TV mirror
- - LED bar inside wardrobes
- Socket: bedside tables: one per side + USB
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Quantity: Two
- - Position: port + starboard
- Curtain:
- - Type: manual roller
- - Quantity: Two
- - Position: port + starboard
- Air conditioning:
- - Fancoils quantity: Two
- - A/C control panel: for independent control in the cabin
Owner dressing room
- Location: starboard, forward of owner's cabin
- - Accessibility: from owner's cabin, exclusive use
- Furnishing:
- - Bulkheads: wood essence with lacquered inserts
- - Ceiling panels: lacquered
- Flooring:
- - Material: iroko
- Chest of drawers:
- - 3 drawers
- - Hanger bar: Wardrobe with shelves and anti-roll system
- Lighting:
- - Type: LED fix spotlight on ceiling
- Curtain:
- - Type: roller blind
- - Position: starboard
- - Quantity: One
- Air conditioning: through delivery grating connected to the cabin's system
Owner's head
- Location: forward of owner's cabin
- Use: exclusive use of cabin
- Furnishing:
- - Washbasin cabinet base: wood essence, with wood essence drawers and internal laminate shelves and leather top
- - Washbasin top: statuary quartzite with built-in storage compartments
- - Mirror: above the washbasin top, for the entire width of the cabinet
- Washbasin:
- - Quantity: One
- - Material: Vetro Freddo
- Shower enclosure:
- - Type: independent, separate from the rest of the head
- - Walls: lacquered
- - Shower panel: glass with stainless steel frame
- - Grating: iroko, removable for inspection and cleaning
- - Seating area: iroko integrated
- Toilet: Tecma
- Faucets:
- - Washbasin: washbasin set, 3 holes
- - Shower: blender unit with hose and shower head with central shower head
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder - toilet brush holder - coat hanger - towel rail
- Lighting:
- - Type: LED fixed spotlight on ceiling inside shower enclosure
- - Courtesy LED strip at base of cabinet
- - LED bar inside wardrobes
- Socket: above washbasin top
- Flooring:
- - Material: iroko
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Quantity: One
- - Position: port, inside shower enclosure
- Curtain:
- - Type: roller
- - Total quantity: One
- - Position: port + starboard
- Air extraction: air suction through grating inside shower enclosure and toilet
- Air conditioning: through delivery grating connected to the cabin's system
Port VIP cabin
- Location: Stern
- Accessibility: from central corridor of lower deck
- Furnishing:
- - Bulkheads: lacquered with wood essence inserts
- - Ceiling panels: lacquered
- Wardrobes:
- - Description: one full-height main wardrobe
- - Material: wood essence
- - Internal lining: laminate
- - Position: Stern
- - Quantity: One
- Bedside tables:
- - Description: built in the headboard, each one equipped with drawer, lights control, storage compartment -Material: lacquered
- - Position: port + starboard
- - Quantity: Two
- Mirror: full-height in front of the bed with built-in TV and lacquered magazine rack
- Bed:
- - Type: fixed on bulwark with lifting pantograph with headboard facing the bulwark
- - Quantity: One
- - Size: Double bed
- - Number of seats: Two
- Storage
- Mattress with pillow, bedspread
- Flooring:
- - Material: carpet
- Lighting:
- - Type: wall lighting on headboard side
- - LED fixed spotlight on ceiling
- - LED swinging spotlight on ceiling
- - courtesy LED strip at bed base, bedside tables, TV mirror
- Socket: on bedside tables, one per side + USB
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Position: port
- - Total quantity: One
- Curtain:
- - Type: Wooden Venetian blind
- - Position: port
- - Total quantity: One
- Air conditioning:
- - Fancoils quantity: One
- - A/C control panel: for independent control in the cabin
Port VIP head
- Position / Layout: aft of the port VIP cabin
- Use: exclusive use of cabin
- Furnishing:
- - Washbasin cabinet base: wood essence, with wood essence panel and internal laminate shelves
- - Washbasin top: statuary quartzite
- Mirror: above the washbasin
- Washbasin: Vetro Freddo under the top
- Toilet: Tecma
- Faucets:
- - Washbasin: washbasin set, 3 holes
- - Shower: blender unit with hose and shower head with central shower head
- Shower enclosure:
- - Type: independent, separate from the rest of the head
- - Walls: lacquered
- - Shower panel: glass with stainless steel frame
- - Grating: iroko, removable for inspection and cleaning
- - Seating area: iroko integrated
- Lighting:
- - Type: LED fixed spotlight on ceiling and inside shower enclosure
- - Courtesy LED strip at base of cabinet
- Flooring:
- - Material: iroko
- Socket: above washbasin top
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder - toilet brush holder
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Position: port
- - Quantity: One
- Curtain:
- - Type: roller
- - Position: port
- - Total quantity: One
- Air extraction: air suction through grating inside shower enclosure
- Air conditioning: through delivery grating connected to the cabin's system
Starboard VIP cabin
- Location: Stern
- Accessibility: from central corridor of lower deck
- Furnishing:
- - Bulkheads: lacquered with wood essence inserts
- - Ceiling panels: lacquered
- Wardrobes:
- - Description: one full-height main wardrobe
- - Material: wood essence
- - Side coating: laminate
- - Position: Stern
- - Quantity: One
- Bedside tables:
- - Description: built in the headboard, each one equipped with drawer, lights control, storage compartment -Material: lacquered
- - Position: port + starboard
- - Quantity: Two
- Mirror: full-height in front of the bed with built-in TV and lacquered magazine rack
- Bed:
- - Type: fixed on bulwark with lifting pantograph with headboard facing the bulwark
- - Quantity: One
- - Size: Double bed
- - Number of seats: Two
- Storage
- Mattress with pillow, bedspread
- Flooring:
- - Material: carpet
- Lighting:
- - Type: wall lighting on headboard side
- - LED fixed spotlight on ceiling
- - LED swinging spotlight on ceiling
- - courtesy LED strip at bed base, bedside tables, TV mirror
- Socket: on bedside tables, one per side + USB
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Position: starboard
- - Total quantity: One
- Curtain:
- - Type: Wooden Venetian blind -Position: starboard
- - Total quantity: One
- Air conditioning:
- - Fancoils quantity: One
- - A/C control panel: for independent control in the cabin
Starboard VIP head
- Position / Layout: aft of the port VIP cabin
- Use: exclusive use of cabin
- Furnishing:
- - Washbasin cabinet base: wood essence, with wood essence panel and internal laminate shelves
- - Washbasin top: statuary quartzite
- - Mirror: above the washbasin
- - Washbasin: Vetro Freddo under the top
- Toilet: Tecma
- Faucets:
- - Washbasin: washbasin set, 3 holes
- - Shower: blender unit with hose and shower head with central shower head
- Shower enclosure:
- - Type: independent, separate from the rest of the head
- - Walls: lacquered
- - Shower panel: glass with stainless steel frame
- - Grating: iroko, removable for inspection and cleaning
- - Seating area: iroko integrated
- Lighting:
- - Type: LED fixed spotlight on ceiling and inside shower enclosure
- - Courtesy LED strip at base of cabinet
- Flooring:
- - Material: iroko
- Socket: above washbasin top
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder -toilet brush holder
- Portlight:
- - Type: round, openable, with clutch built in the glass
- - Position: starboard
- - Quantity: One
- Curtain:
- - Type: roller
- - Position: starboard
- - Total quantity: One
- Air extraction: air suction through grating inside shower enclosure
- Air conditioning: through delivery grating connected to the cabin's system
Port side guest cabin
- Location: port
- Accessibility: from central corridor of lower deck
- Furnishing:
- - Bulkheads: wood essence with lacquered inserts
- - Ceiling panels: lacquered
- Wardrobes:
- - Description: one full-height wardrobe on port bulwark
- - Material: wood essence
- - Internal lining: laminate
- - Position: port, fore side
- - Quantity: One
- Bedside tables:
- - Description: single central between beds, equipped with drawer, light controls
- - Material: wood essence
- - Position: central, headboard side
- - Quantity: One
- Bed:
- - Type: fixed
- - Quantity: Two
- - Size: single
- - Number of seats: Two
- Storage
- Mattress: with pillow, bedspread
- Flooring:
- - Material: carpet
- Lighting:
- - Type: wall lighting on headboard side
- - LED fixed spotlight on ceiling
- - courtesy LED strip at bed base
- Socket with USB socket
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: port
- -Quantity: One
- Curtain:
- -Type: Wooden Venetian blind
- -Position: port
- Quantity: One
- Air conditioning
- -Fan-coils quantity: One
- -A/C control panel: for independent control in the cabin
Port guest head
- Location: forward of the port guest cabin
- Use: exclusive use of cabin
- Furnishing:
- -Washbasin cabinet base: lacquered with storage
- -Washbasin top: statuary quartzite
- -Wall unit: wood essence, with internal shelves with anti-roll system
- Mirror: above the washbasin
- Washbasin: Vetro Freddo under the top
- Toilet: Tecma
- Faucets:
- -Washbasin: washbasin set, 3 holes
- -Shower: blender unit with hose and shower head with central shower head
- Shower enclosure:
- -Type: independent, this shower enclosure is separate from the rest of the head
- -Walls: laminate
- -Shower panel: Glass with stainless steel frame
- Grating: iroko, removable for inspection and cleaning
- -Seating area: iroko inside shower enclosure
- Lighting:
- -Type: LED fixed spotlight on ceiling and inside shower enclosure
- - Courtesy LED strip at base of cabinet
- Flooring:
- -Material: iroko
- Socket
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder - toilet brush holder
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: port, inside the shower enclosure
- -Total quantity: One
- Curtain:
- -Type: roller
- -Position: port
- -Total quantity: One
- Air extraction: air suction through grating inside shower enclosure
- Air conditioning: through delivery grating connected to the cabin's system
Starboard side guest cabin
- Location: starboard
- Accessibility: from central corridor of lower deck
- Furnishing:
- -Bulkheads: wood essence with lacquered inserts
- -Ceiling panels: fabric
- Wardrobes:
- -Description: full-height wardrobe, fore
- -Material: wood essence
- -Internal lining: laminate
- -Position: Bow
- Quantity: One
- Bedside tables:
- -Description: equipped with drawer, lights control
- -Material: lacquered
- -Position: port + starboard headboard side
- -Quantity: Two
- Mirror: full-height in front of the bed with built-in TV
- Bed:
- -Type: fixed with lifting pantograph with headboard on starboard bulwark
- -Quantity: One
- -Size: Double bed
- -Number of seats: Two
- -Storage
- -Mattress: with pillow, bedspread
- Flooring:
- -Material: carpet
- Lighting:
- -Type: wall lighting on headboard side
- - LED fixed spotlight on ceiling
- - LED swinging spotlight on ceiling
- - courtesy LED strip at bed base, LED bar inside the wardrobes
- Socket + USB
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: starboard
- -Total quantity: One
- Curtain:
- -Type: wooden Venetian blind
- - Position: starboard
- - Quantity: One
- Air conditioning:
- Fan-coils quantity: One
- A/C control panel: for independent control in the cabin
Starboard guest head
- Location: fore of the starboard guest cabin
- Use: exclusive use of starboard guest cabin
- Furnishing:
- -Washbasin cabinet base: lacquered with storage
- -Washbasin top: statuary quartzite
- Wall unit: wood essence, with internal shelves with anti-roll system
- Mirror: above the washbasin
- Washbasin: Vetro Freddo under the top
- Toilet: Tecma
- Faucets:
- -Washbasin: washbasin set, 3 holes -Shower: blender unit with hose and shower head with central shower head
- Shower enclosure:
- -Type: independent, separate from the rest of the head
- -Walls: lacquered
- -Shower panel: Glass with stainless steel frame
- -Grating: iroko, removable for inspection and cleaning
- -Seating area: iroko obtained in shower enclosure
- Lighting:
- -Type: LED fixed spotlight on ceiling and inside shower enclosure
- - Courtesy LED strip at base of cabinet
- Flooring:
- -Material: iroko
- Socket: above washbasin top
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder - toilet brush holder
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: starboard, inside the shower enclosure
- -Quantity: One
- Curtain:
- -Type: roller
- -Position: starboard
- Quantity: One
- Air extraction: air suction through grating inside shower enclosure
- Air conditioning: through delivery grating connected to the cabin's system
Crew room
- Composed of:
- -crew dining area
- -commander's cabin
- -crew cabin
- -crew head
- -laundry area
- Location: below deck, fore
- Accessible through internal stairway, reachable through:
- -sliding door located on port walk around
- -internal passage through galley or wheelhouse
Crew dining area
- Location: abaft the port crew area
- Accessibility: port side from ladder connecting galley / wheelhouse to crew area, provides direct access to all spaces of crew area
- Furnishing:
- -Walls: laminate
- -Ceiling panels: faux leather
- Dining table:
- -Description: Fixed rectangular table
- -Material: laminate
- -number of places: three
- Flooring:
- -Material: carpet
- Lighting:
- -Type: LED fixed spotlights on ceiling
- Curtain:
- -Type: manual packet
- -Position: port, in the space under the stair
- -Quantity: One
Laundry area
- Location: forward of crew area
- Accessibility: from crew dining area
- Furnishing:
- -Bulkheads: laminate
- -Ceiling panels: faux leather
- Wardrobes: laminated with storage shelves
- Flooring:
- -Material: carpet
- Lighting:
- -Type: LED fix spotlight on ceiling
- Socket
Commander's cabin
- Location: forward of crew area, starboard bulwark
- Accessibility: from crew dining area
- Furnishing:
- -Bulkheads: laminate
- -Ceiling panels: faux leather
- Wardrobes: laminate, with coat hangers, drawers and shelves
- Wall units: laminate with panel and shelves on bulwark
- Bed:
- -Type: fixed
- -Quantity: One
- -Size: single
- -Number of seats: One
- -Storage
- -Mattress: with pillow, bedspread
- Flooring:
- -Material: carpet
- Lighting:
- -Type: swinging reading light on head- board side
- - fixed LED spotlight on ceiling
- Socket
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: starboard
- -Quantity: One
- Curtain:
- -Type: Wooden Venetian blind
- -Position: starboard
- -Quantity: One
- Air conditioning:
- -Fan-coils quantity: One
- A/C control panel: for independent control in the cabin
Crew cabin
- Location: abaft the crew area, starboard bulwark
- Accessibility: from crew dining area
- Furnishing:
- -Bulkheads: laminate
- -Ceiling panels: faux leather
- Wardrobes: laminate, with coat hangers, drawers and shelves
- Bed:
- -Type: 1 fixed bed + 1 foldaway bed
- -Quantity: Two
- -Size: single
- -Number of seats: Two
- -Storage
- -Mattress: with pillow, bedspread
- Flooring:
- -Material: carpet
- Lighting:
- -Type: swinging reading light two head- board sides
- - fixed LED spotlight on ceiling
- Socket: Two
- Portlight:
- -Type: round, openable, with clutch
- -Position: starboard
- -Quantity: One
- Curtain:
- -Type: Wooden Venetian blind
- -Position: starboard
- -Quantity: One
- Air conditioning:
- -Fan-coils quantity: One
- A/C control panel: for independent control in the cabin
Crew head
- Location: abaft the crew area, port bulwark
- Use: for shared use by the entire crew, including the commander
- Furnishing:
- -Washbasin cabinet base: laminate with panels and internal shelves
- -Washbasin top: laminate
- Mirror
- Washbasin: ceramic resting on the washbasin top
- Toilet: Tecma
- Faucets:
- -Washbasin: blender
- -Shower: slide bar with hose and shower head
- Shower enclosure:
- -Type: located in the same space of the head
- -Walls: laminate
- -Shower panel: Curtain
- Grating: laminate, removable for inspection and cleaning
- Lighting:
- -Type: LED fix spotlight on ceiling
- Socket: above washbasin top
- Flooring
- - Material: laminate
- Head accessories: toothbrush holder - soap dispenser - toilet paper roll holder - toilet brush holder
- Portlight:
- -Type: round, openable, with clutch built in the glass
- -Position: port, in front of washbasin
- -Quantity: One
- Curtain:
- -Type: metal Venetian blind
- -Position: port
- -Quantity: One
- Air extraction: air suction through grating inside shower enclosure
Onboard household appliances
- Extractor hood: one in galley, above the cooking top
- Pot holder: one in galley, with the cooking top
- Oven: one in galley, width 60 cm, capacity76l
- Fridge: one on flybridge, inside the cabinet
- Fridge + freezer: one in galley, double panel, fridge 419 l, freezer 247 l
- Combined washing/drying machine: one in crew room
- Induction type range: one in galley, width 60 cm
Electric system
Voltage levels on board
- 230 V 50 Hz AC for single-phase alternate current system, EU version
- 120/240 V 60 Hz AC for single-phase alternate current system, USA version
- 24 V DC from battery set
- 12 V DC from battery set
- 12 V DC from battery set and AC/DC voltage reducer
Power sources
- Current generator
- Shore sockets
- Batteries and recharging systems
Galvanic current insulation
- Type: Zinc anodes
Generator
- Quantity: Two
- Power: 20 kW x 250 Hz
- Location: port + starboard, one per bulwark in engine room
- Other: Soundproofing box - remote starting
Shore power sockets
- Quantity: Two
- Type: 230 V 50 Hz AC single phase
- Location: aft, one per side, access through locker
- Monitoring: through ammeter and voltmeter in engine room, in addition to value reading on onboard monitoring system
- Protection systems: Std galvanic insulator power circuit breaker
- Shore cable: 20m/63A/230V
Batteries
- Heads
- -Quantity: twelve
- -Current: 540 Ah
- -Voltage: 24 V DC
- Engines
- -Quantity: six
- -Current: 270 Ah
- -Voltage: 24 V DC
- Generator
- -Quantity: Two
- -Current: 90 Ah
- -Voltage: 12 V DC
Battery charger
- Services battery charger
- -Quantity: Two
- -Current: 80 Ah
- -Voltage: 24 V DC
- Engine battery charger
- -Quantity: One
- -Current: 30 Ah
- -Voltage: 24 V DC
- Generator battery charger
- -Quantity: One
- -Current: 15 Ah
- -Voltage: 12 V DC
Utilities - electric panels
- MAIN AC and DC electric panels
- -Quantity: two, one AC and one DC
- -Position: 24 V on engine room fore bulkhead
- - 220 V engine room starboard bulwark
- AUXILIARIES AC and DC electric panels
- -Quantity: One
- -Position: internal wheelhouse
- Emergency panel
- -Quantity: One
- -Position: internal wheelhouse
- Battery cut-out panel
- -Quantity: One
- -Position: Cockpit
Electronic navigation instruments
BRONZE version
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge system
Main
- Type: automatic, each pump can be operated manually or automatically from the control panel in the wheelhouse. The outlet on the bulwark is direct and independent for each pump
- Flow rate: 11340 l/h
- Quantity: five
- Bilge pumps position:
- -two in the engine room (one aft - one fore)
- -one in crew area, forward of the fresh water tank
- -two in VIP heads, one in each head, next to the diesel tank
- Other: pumps operation indicator and high level alarms are signaled on the monitoring system
Auxiliary
- Type: manual pump sucking from suction points in the bilge and selectable through deviator valves (if envisaged)
- Flow rate: 2100 l/h
- Quantity: three
- Auxiliary pump position: one in the crew cabin and two in the cockpit, each pump in the cockpit sucks respectively from: engine room - aft cabins lower deck bilge
- Total quantity of suction points: five
- Position of suction points:
- -two in the engine room (one aft - one fore)
- -one in the crew area
- -two in VIP heads, one in each head, next to the diesel tank
Emergency
- Type: manual, the emergency system includes one suction point in the engine room, connected through valve and seawater filter, to the port engine seawater pump
- Quantity: One
- Location: engine room, forward of the thruster system
Fire extinguishing system
Automatic
- Type: automatic, with panel located in the area leading down to the engine room
- Type of extinguishing agent: Novec
- Cylinder capacity: 106 l (28 US gal.)
- Total quantity of cylinders: One
- Location: starboard, in engine room
- Other: the activation of the fire extinguishing system causes the automatic closure, through solenoid valves, of the engines and generator fuel delivery
Manual
- Type: manual
- Type of extinguishing agent: water
- Total quantity: One
- Pump position: starboard, in engine room
- Hoses:
- -Quantity: Two
- -Position: fore, one in the chain locker, operated through a valve - aft, one in- side the port cockpit cabinet, operated through a valve
Smoke detectors
- Type: battery operated
- Total quantity: ten
- Location: one for each space, saloon, galley, owner, wheelhouse, port VIP, starboard VIP, port guests, starboard guests, captain's cabin, crew cabin
Fuel system
Diesel tanks:
- Type: structural tank built in the hull,
- Quantity: One
- Material: fiberglass
- Capacity: 8500 l (2245 US gal.)
- Location: midship, longitudinally, forward of the engine room bulkhead
Electronic level gage
- Type: electronic level sensor with continuous reading and % indication on internal and flybridge wheelhouse monitoring system
- Quantity: three
- Location: two fore of the tank, one aft of the tank
Optical level gage
- Type: local electronic sensor with built- in display
- Quantity: One
- Location: aft of the tank
Engine fuel filter
- Type: double settling filter
- Quantity: two, one double filter for engine
- Location: central between the engines
Generator fuel filter
- Type: single settling filter
- Quantity: two, one filter for each generator
- Location: port + starboard aft of generators
Engine solenoid valves
- Quantity: Two
- Location: central on engine room diesel hatch
- Power supply: 24 V DC
Generator solenoid valves
- Quantity: Two
- Location: central on engine room diesel hatch
- Power supply: 12 V DC
Refueling
- Quantity: Two
- Location: port + starboard on each walkaround, aft
Other
- Fourteen tank breathers connected to bulwark
Fresh water system
Fresh water tanks
- Type: structural tank built in the hull
- Quantity: One
- Material: fiberglass
- Capacity: 1500 l (396 US liq.gal.)
- Location: fore, located under the crew tray
Electronic level gage
- Type: electronic level sensor with continuous reading and % indication on internal and flybridge wheelhouse monitoring system
- Quantity: One
- Location: aft of fresh water tank
Water pressure pump
- Quantity: One
- Location: port, engine room
- Power supply: 230 V AC / 24 V DC double power supply
Water heater
- Quantity: Two
- Capacity: 2 x 80 l (21 US liq.gal.)
- Location: fore of service compartment
- Power supply: 230 V 50/60 Hz
- Power: 2 x 1200 W
- Thermostatic mixer
- Thermostatic mixer
- Re-circulation pump
Water refilling
- Quantity: Two
- Location: port + starboard on each walkaround, fore
Power supply
- Hot water: all utilities of internal / external spaces
- Cold water: all utilities of internal / external spaces + engine room + windscreen wiper
Other
- Tank breathers connected on bulwark
- Provision for desalination system
- System that can be isolated by WAVIN type manifolds
Black water system
Black water tanks
- Type: structural tank built in the hull
- Quantity: One
- Material: fiberglass
- Capacity: 820 (217 US liq.gal.)
- Location: midship, arranged transversally under the fore tray
Electronic level gage
- Type: electronic level sensor with continuous reading and % indication on internal and flybridge wheelhouse monitoring system
- Quantity: One
- Location: abaft the tank
Tank emptying pump
- Quantity: One
- Location: port, engine room
- Power supply: 230 V 50/60 Hz with automatic/manual control directly from
- the boat monitoring system
- Flow rate: 3000 l/h (792 US liq.gal./h)
Discharge from shore
- Quantity: One
- Location: port, from walk around to bow
- Toilet
- Model: Tecma with built-in macerator
- Power supply: fresh water
Other
- Tank breathers connected on bulwark
- Anti-odor filter
- Anti-odor piping
- Tank washing through shore connection
Gray water system
Gray water tanks
- Type: structural tank built in the hull
- Quantity: One
- Material: fiberglass
- Capacity: 820 (217 US liq.gal.)
- Location: midship, arranged longitudinally under the fore tray
Electronic level gage
- Type: electronic level sensor with continuous reading and % indication on internal and flybridge wheelhouse monitoring system
- Quantity: One
- Location: abaft the tank
Tank emptying pump
- Quantity: One
- Location: port, engine room
- Power supply: 230 V 50/60 Hz with automatic/manual control directly from the boat monitoring system
- Flow rate: 3000 l/h (792 US liq.gal./h)
Discharge from shore
- Quantity: One
- Location: starboard, from walk around to bow
Other
- Tank breathers connected on bulwark
- Anti-odor filter
- Anti-odor piping
- Additional collection trays for transfer, from utility to main tank
Seawater system
Engines
- Size: 3"
- Material: bronze
- Seawater intake: two, one per engine
- Ball valve: Two
- Filter: Two
- Bilge emergency suction: one 3" on port engine with valve and basket
- Location: central in engine room
Generators
- Size: 1/2"
- Material: bronze
- Seawater intake: Two
- Ball valve: Two
- Filter: Two
- Location: port + starboard in engine room
Air conditioning
- Size: 1" 1/2
- Material: bronze
- Seawater intake: One
- Ball valve: One
- Filter: One
- Location: port aft in engine room
Ventilation/extraction
Head ventilation
- Air extraction:
- -Type: Forced through centrifugal extractor
- -Power supply: 24 V DC
- -Utilities: cabin showers - day toilet - crew head
Galley ventilation
- Air extraction:
- -Type: Forced through extractor hood
- -Power supply: 24 V DC
- -Utilities: Galley
Laundry ventilation
- Air extraction:
- -Type: Forced through centrifugal extractor
- -Power supply: 24 V DC
- -Utilities: drying machine, in crew area laundry
Engine room aeration
- Air extraction:
- -Type: Forced with temperature control system
- -Power supply: 24 V DC
- -Quantity: Four
- -Utilities: Engine room
- Air ventilation:
- -Type: Forced with control system according to engine speed
- -Power supply: 230 V 50 Hz AC -Quantity: Two
- -Utilities: Engine room
Ventilation of other spaces
- Air extraction:
- -Type: Forced through centrifugal extractor
- -Power supply: 24 V DC
- -Utilities: crew fore service compartment, service compartment under wheelhouse
Other systems
Steering system
- Type: hydraulic, built in the POD 4600
Garage door opening system
- Type: hydraulic through hydraulic cylinders
- Quantity: One
- Location: Stern
- Electro-hydraulic control unit
- Power supply: 24 V DC
- Anti-release safety mechanism
Gangway system
- Type: hydraulic
- Quantity: One
- Location: starboard
- Max. net capacity: 150 kg (330 lb)
- Electro-hydraulic control unit
- Power supply: 24 V DC
- Max length: 4425 mm (14' 6'')
Tenderlift system
- Type: hydraulic, pantograph type
- Quantity: One
- Location: Stern
- Net capacity: 550 kg (1212 lb), the above value considers 200 kg (440.92 lb) for operators and various accessories
- Electro-hydraulic control unit
- Power supply: 24 V DC
- Anti-release safety mechanism
Trim tabs system
- Model: Humphree HE1100
- Type: Intruder
- Quantity: Two
- Location: Stern
- Movement: electric
- Power supply: 24 V DC
- Control panel: on wheelhouse, built in the monitoring system
- - on flybridge, external panel
- Trim tabs automatic control
Windscreen wipers system
- Quantity: four wipers and arms
- Location: windscreen
- Movement: electric
- Power supply: 24 V DC
- Material: stainless steel
- Other: in addition to the possibility of operating them via the monitoring system on the internal wheelhouse, there are additional buttons for operating the windscreen wipers and washers
Bow thrusters system
- System type: hydraulic
- Max operational pressure: 280 bar
Pump
- Type: pistons
- Quantity: Two
- Location: one on each POD, keyed on the head in the engine room
Bow thruster
- Model: QSH420-386
- Thrust: 420 kg (926 lb)
- Quantity: One
- Location: fore, in the crew service compartment
- Proportional
- Other: Oil tank 90 l (23.7 US.liq.gal.)
Air conditioning system
Air conditioning type
- thermally-treated water circulation
Air conditioning compressor
- Quantity: One
- Location: port, forward of the engine room
- Total BTU: 130000 Btu/h with inverter technology
A/C pump
- Seawater:
- -Quantity: One
- -Position: port, forward of the engine room
- -power supply: 230 V 50 Hz AC
- Fresh water:
- -Quantity: One
- -Position: port, forward of the engine room
- -power supply: 230 V 50 Hz AC
Onboard fancoils arrangement
- Saloon: Four
- Galley: One
- Wheelhouse: Two
- Owner’s cabin: three
- Starboard guest cabin: One
- Port guest cabin: One
- Port VIP cabin: One
- Starboard VIP cabin: One
- Crew dinette / galley: One
- Captain's cabin: One
- Crew cabin: One
Other
- 12 l (3.17 US liq.gal.) expansion tank
- Temperature probe: one for each space
- Room control panel: one for each space
Equipment
- Two telescopic boat hooks
- Six mooring lines
- Eight fender lines
- One anchor chain stopper
- Eight fenders
- eight black fender covers
- One Owner's manual
- One AZIMUT document folder
- One wooden boat model
- One AZIMUT warranty service booklet
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- Four floating key rings
- Two bags with logo for storing the manuals
- One remote control holder with logo
- One stainless steel scheduled maintenance kit
- One pin wrench for locking stainless steel pins
- One windscreen windows cover
