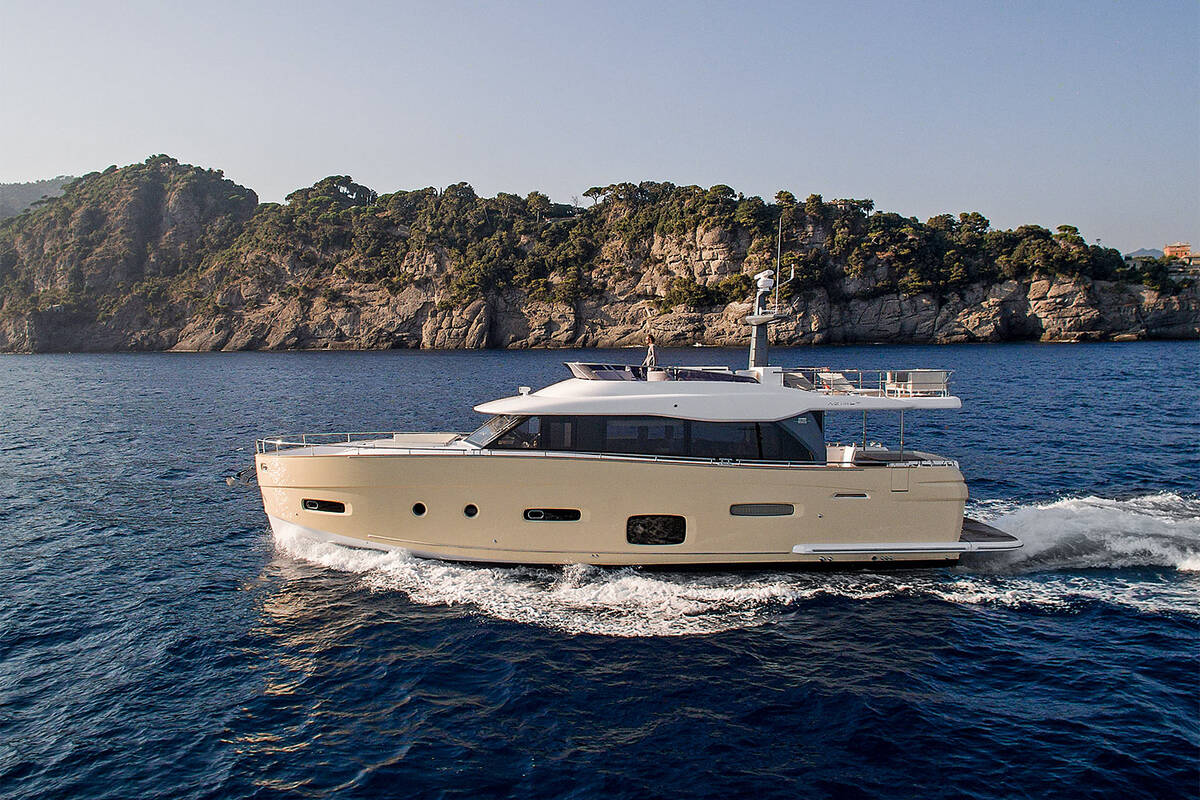

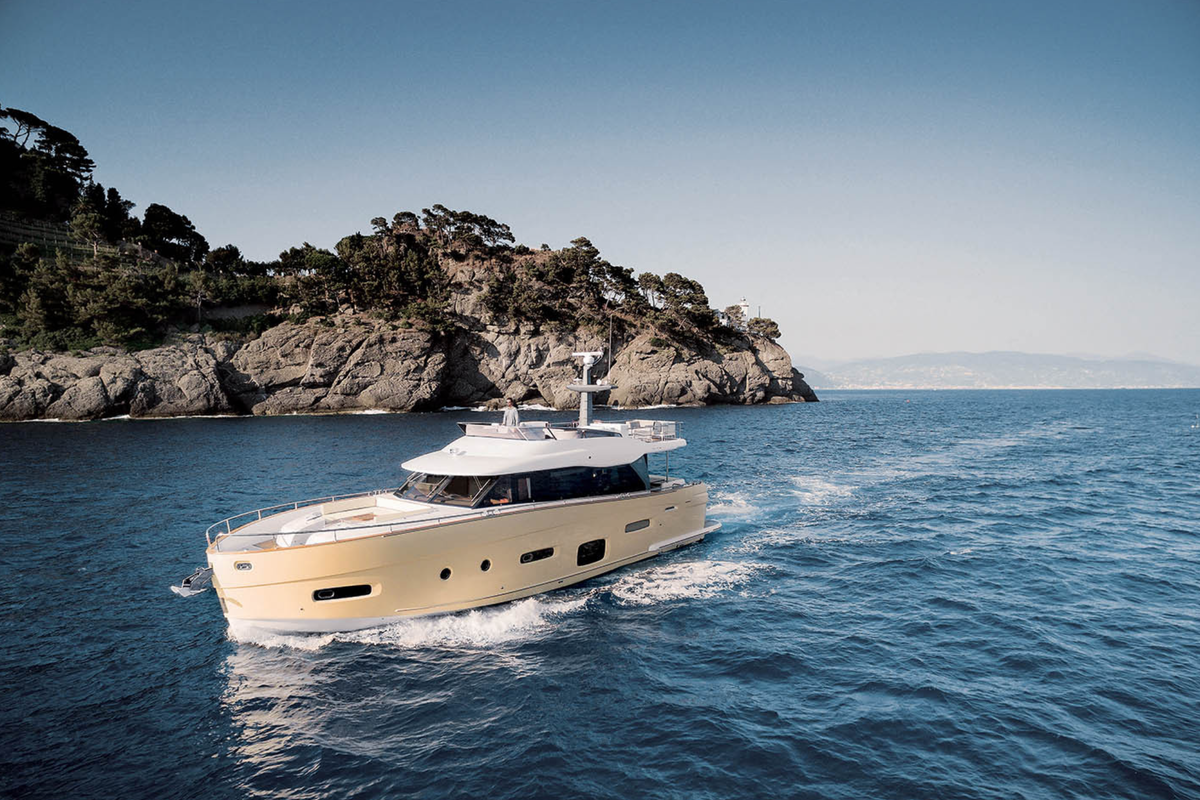

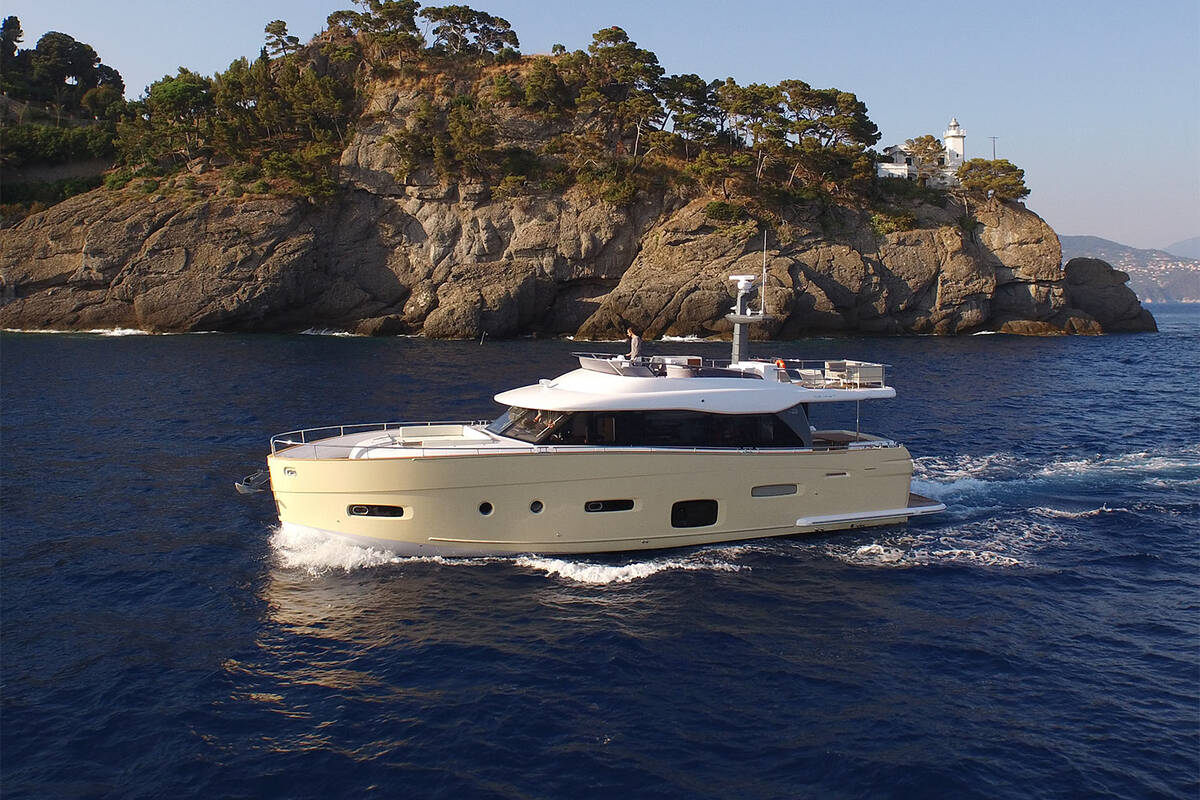

Magellano 66

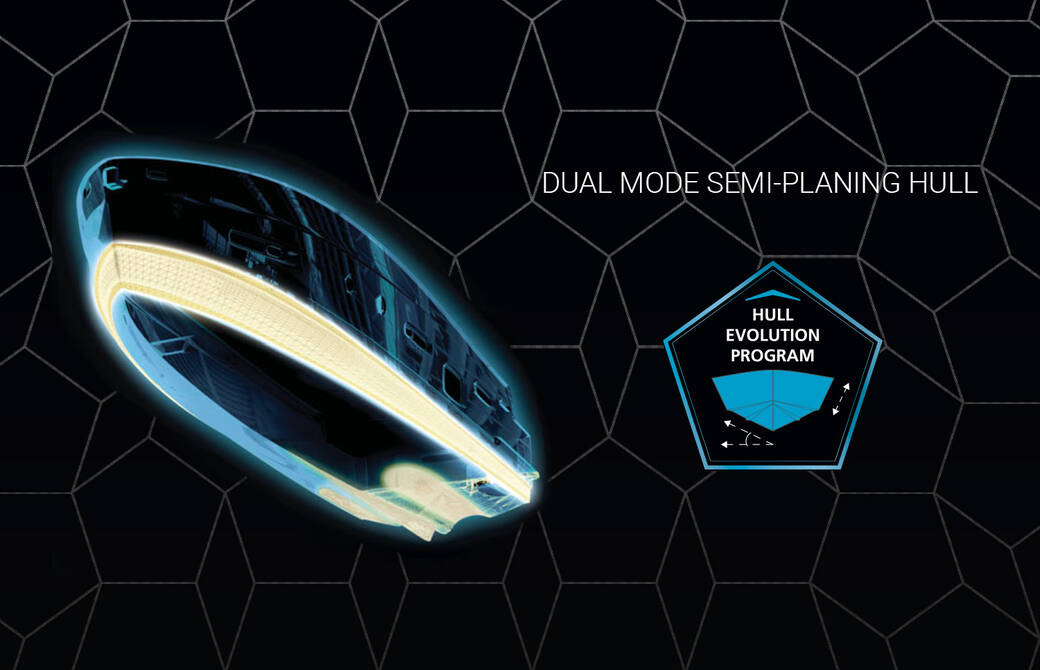

• External surface finished with white gelcoat offering optimum resistance to atmospheric agents
• Tunnel for bow thruster and reinforcement for stern thruster
• The bottom of the GRP hull is coated in anti-fouling paint
• Stainless steel profiles to protect the sides

• Manufacturer - VOLVO Penta
• Model - D13 - 588 kW 800 mHp
• Type 6-cylinder diesel engine
• Max. power 2x 588 kW

Reduction gears/marine gears

• Manufacturer ZF
• Model 335 IV
• Reduction ratio 2,458

• Configuration shaft line - integrated V drive
• Shaft length 4332 mm
• Shaft angle 9°
• Shaft diameter 75 mm
• Distance between centers -1600 mm
• Building material - Marinox 17
• Support Bronze shaft supports
• Hull casing PSS type

• Model 5 blades
• Building material NiBrAl
• Diameter 940 mm

• Rudders made of stainless steel
• Bow thruster 10 KW SIDE POWER 24V

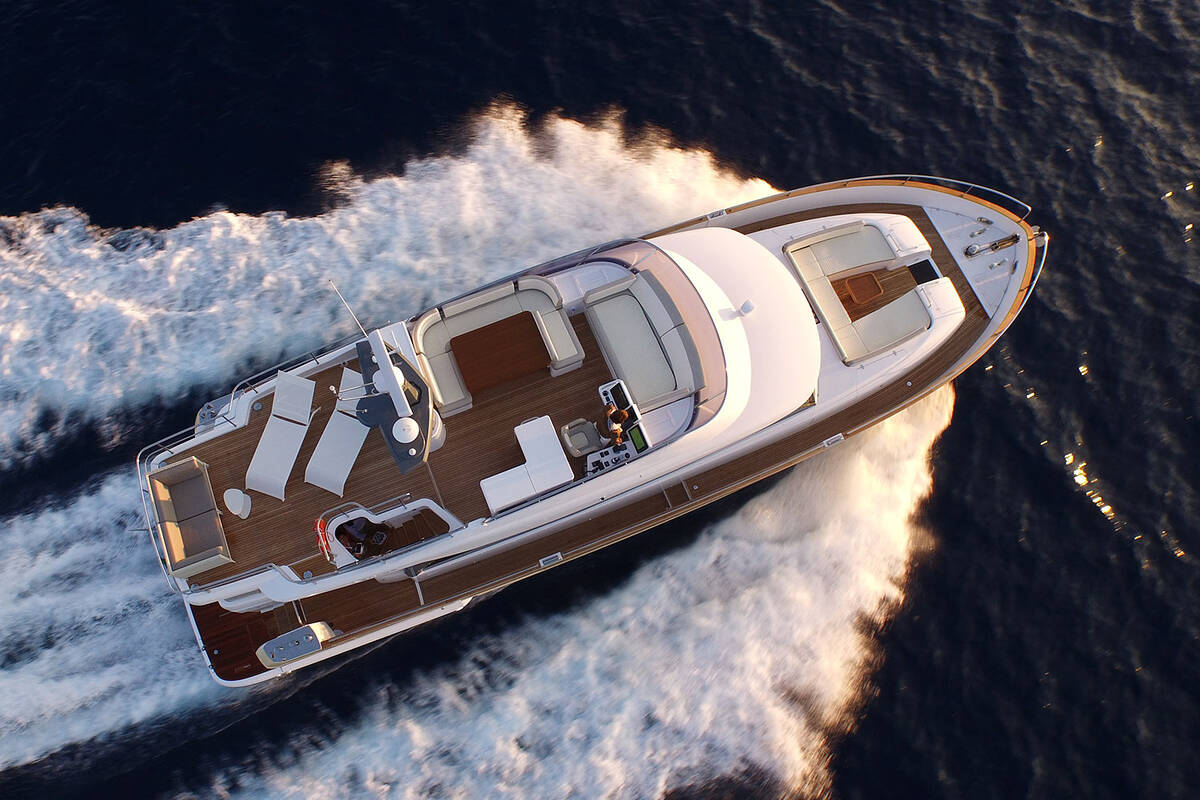

• Access from cockpit via a fiberglass ladder on starboard side, with teak steps and a built-in locker

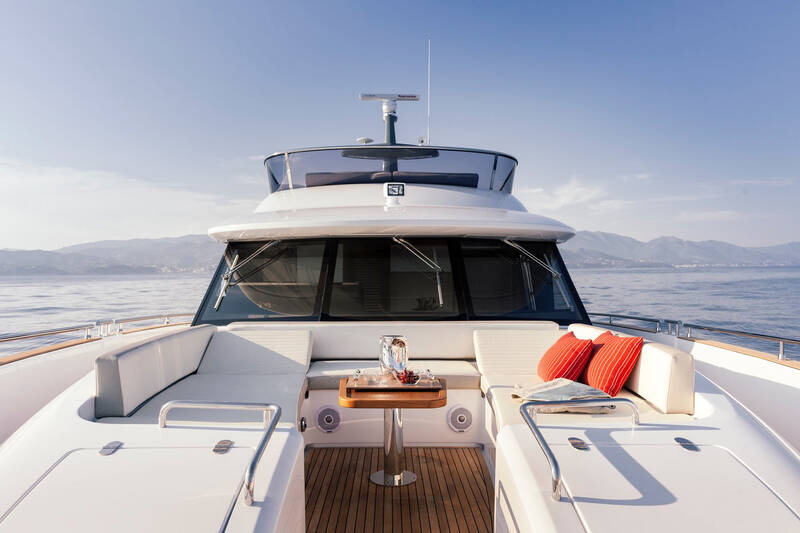

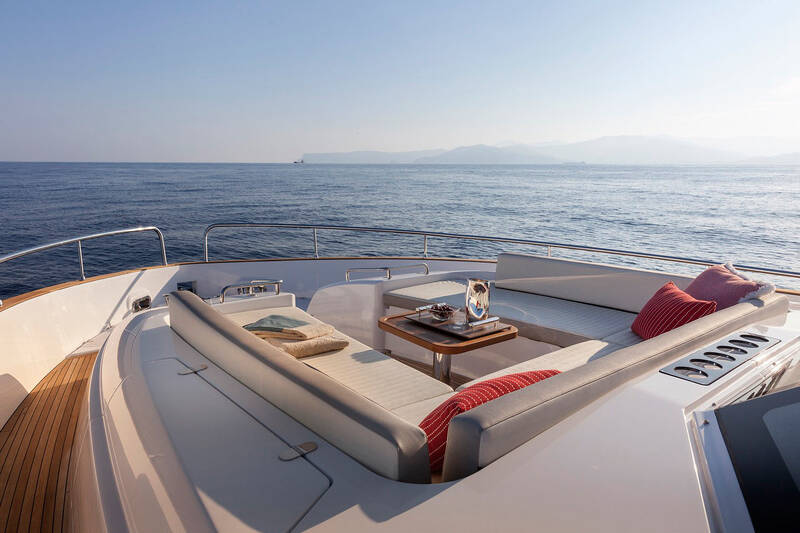

• Fore sofa/sunbed area with spacious locker
• Access door in aluminum and Plexiglas
• Handrails and pulpit in stainless steel, complying with EN-ISO and ABYC (U.S.A.) standards

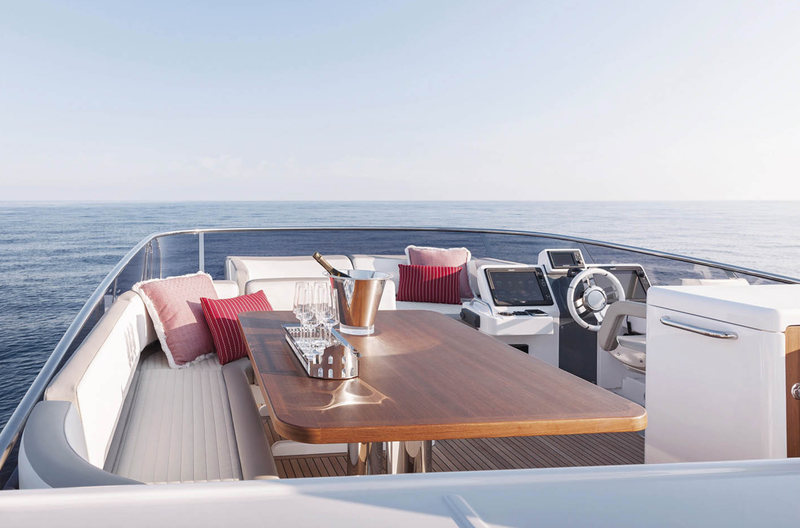

• Steering system with 1 seat on starboard side.
• Steering wheel in painted aluminum and stainless steel
• Fixed table in teak, with stainless steel support, for 8 people
• Sofa, with open compartments
• Plexiglas flybridge screen with stainless steel frame
• Storage space and glass-holders created in the molding
• Fiberglass module located on the starboard side, with the sink and cold water tap, barbecue, and refrigerator
• Port side cupboard in GRP, with shelves suitable for housing a self-inflating life raft
• Aft sunbed area
• Fiberglass mast for housing:
• - navigation and riding lights
• - VHF aerial
• - electro-pneumatic horn
• - flag pole
• - shower head + shower mixer tap for hot and cold water
• Flybridge dashboard consisting of:

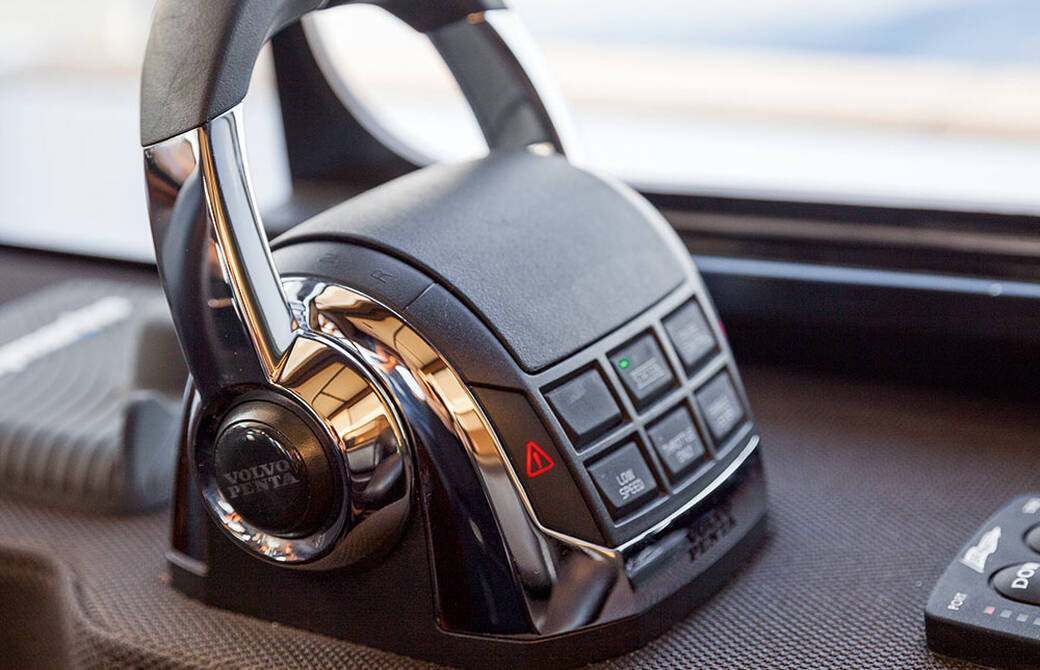

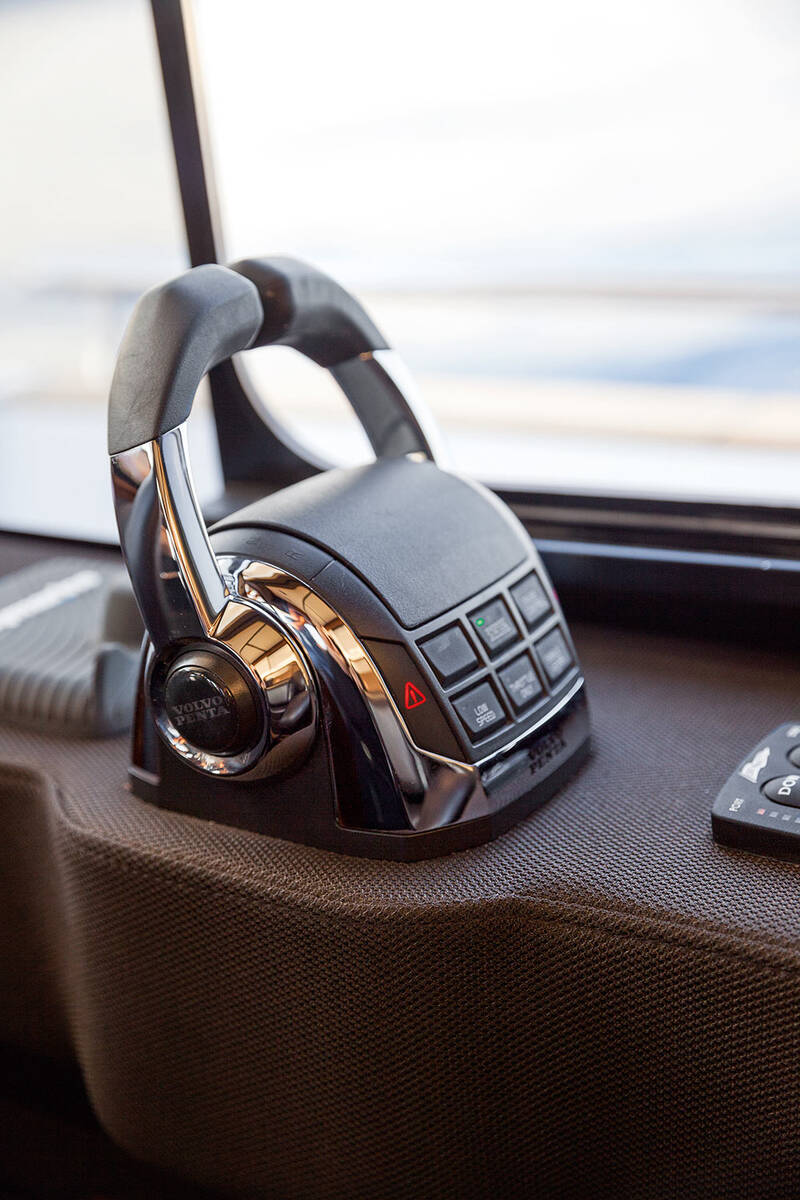

• - control levers for Volvo Penta engines/reversing gears
• - BRONZE series electronic navigation instruments
• - 7” multifunction display for controlling engines (Volvo Penta)
• - Volvo Penta engine stop/start controls
• - Bow thruster control
• - chain meter counter controls
• - General boat alarm indication integrated in the Raymarine display
• - bow winch controls
• - Horn controls
• - auxiliary / spare controls
• - trim tab position indicators and controls
• - Manual depth searchlight, 12V
• - Magnetic compass

• Windows in tempered glass, glued to the superstructure
• Set of black net window covers
• Deckhouse with front sunguard visor for better protection against sunlight and heat. Also useful in bad weather conditions, both when under wae and when moored
• Side windows in Europa gray. Front windows in a neutral shade
• 1 horizontal sliding window (manually operated) with hermetic “flush” closure, located near the steering system
• 1 side door (with hopper window) for accessing the walk arounds, located on port side of galley area
• 3 windscreen wipers with washer
• Red/green running lights

• Chain washing pump
• Self-draining anchor chain locker and divisions for housing 8 fenders (diam. 30cm)
• "Delta" 40Kg galvanized steel anchor
• Galvanized steel anchor chain, diam. 12 mm, L = 75 m
• Stainless steel bow roller and bow shield
• 2300W anchor winch
• 2 stainless steel cleats
• 2 stainless steel chocks-hawses (at the bow)
• Fort sofa/sunbed area with spacious lockers

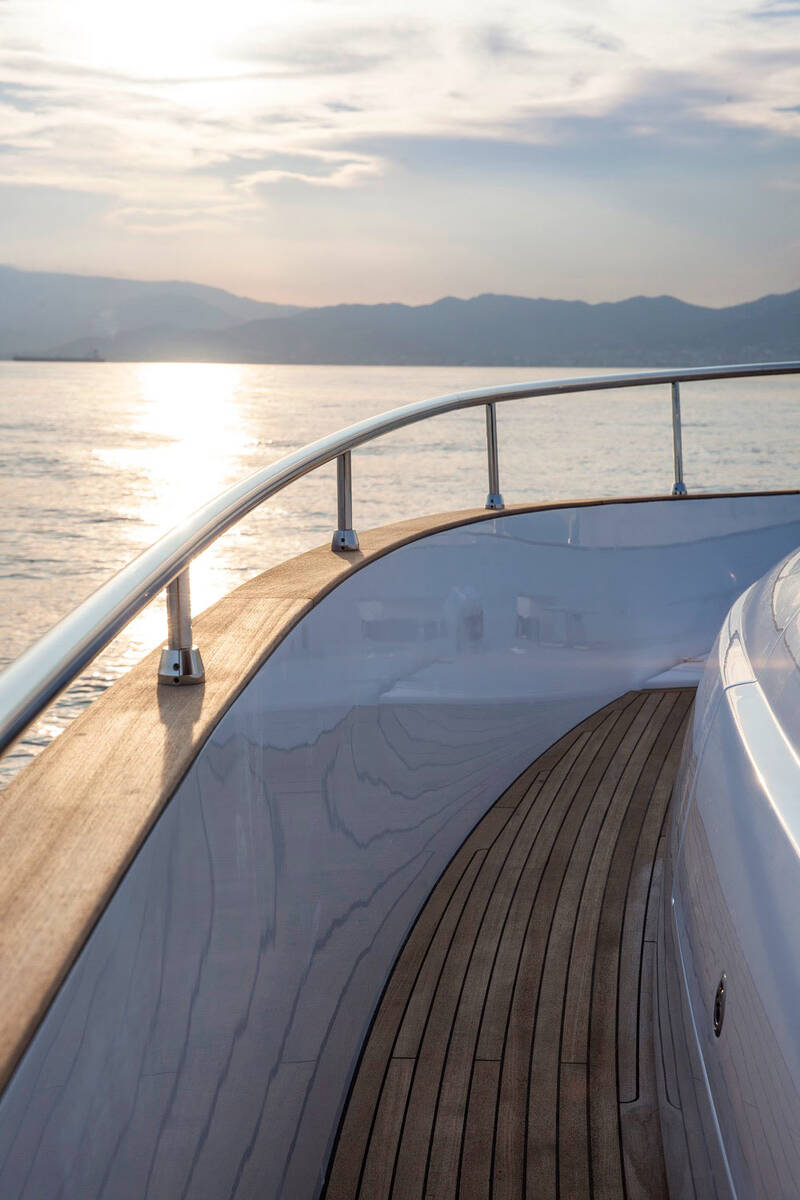

• 4 stainless steel amidships cleats (on gunwale)
• Handrails near cockpit

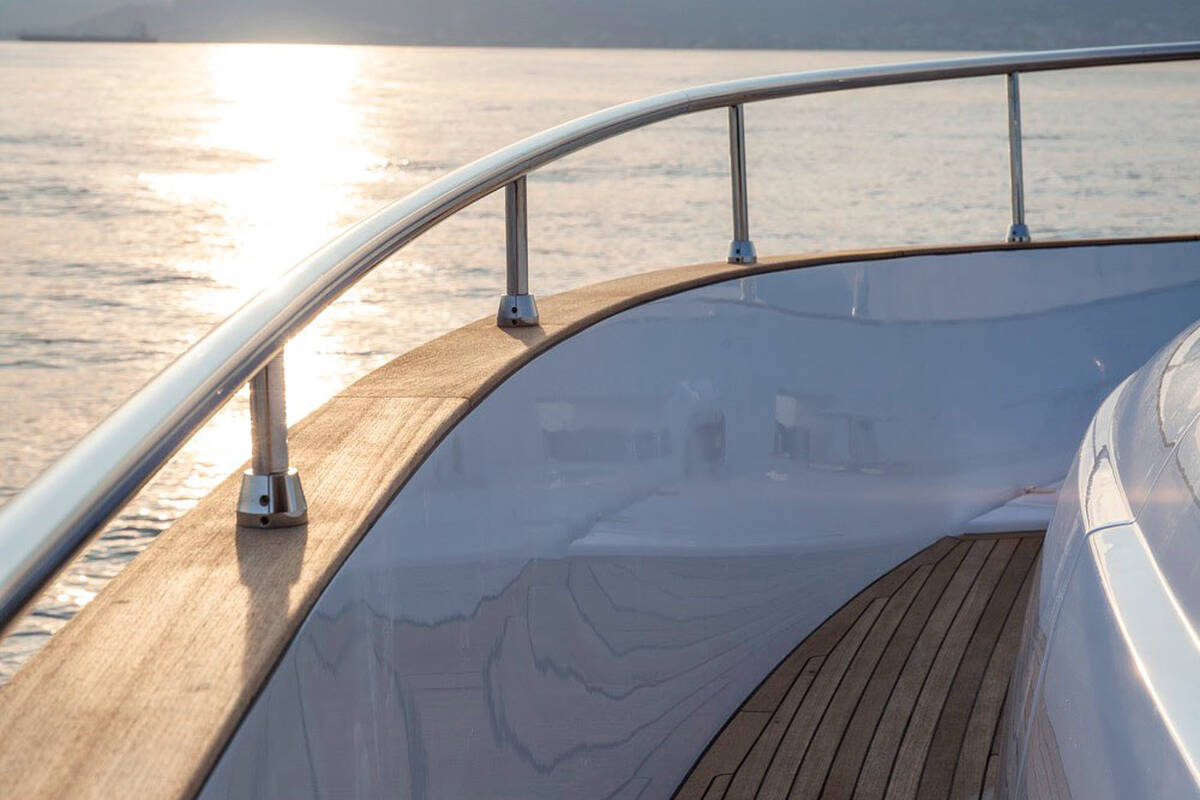

• Teak gunwale
• Stainless steel pulpit
• 1 fresh water refill cap (on walk arounds)
• 1 black water suction plug (on walk arounds)
• Water drainage on walk arounds
• 2 refueling plugs located on the sides of the deckhouse

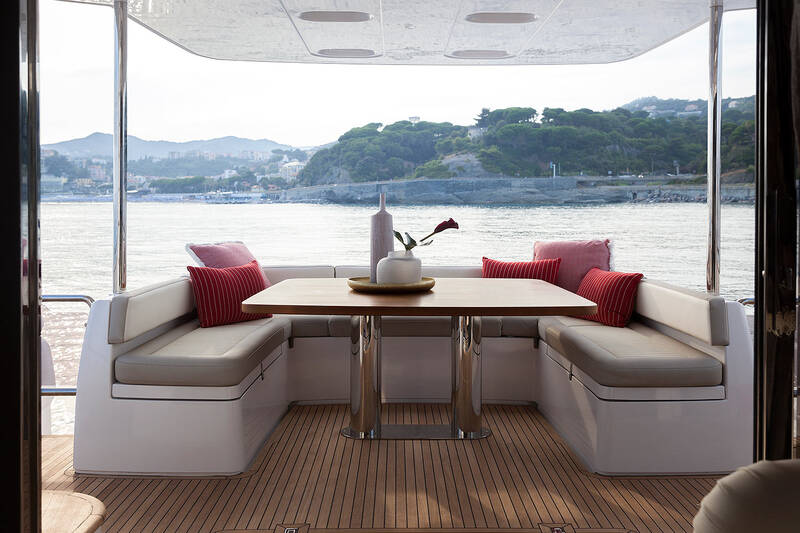

• Cockpit floor in teak
• Flybridge access ladder in GRP, with steps in teak
• Access to platform via 2 side decks
• Stainless steel/Plexiglas gates to protect access to stern platform
• Saloon door in stainless steel with 2 sliding panels
• C-shaped cockpit sofa seating 6, with cushions; lockers underneath
• Access to the engine room from the door
• Scuppers on cockpit bulwarks (self-draining)
• 2 cleats with stainless steel chocks in the cockpit
• Electric panel (main and emergency switches) in starboard locker
• LED spotlights on cockpit ceiling, with dimmer

• LED spotlights in platform area
• Foldaway swimming ladder (manually operated) under door
• Manual shower head with hot and cold water
• PVC rub-rail with stainless steel profile (on platform edge)
• Floor in teak
• 2 cleats at the aft hull end
• INSTALLABLE TENDER:
• - Max. working load of platform (symmetrical): 500 kg
• - Recommended dimensions of TENDER: 3.5 x 1.5m
• - Max. dimensions of WILLIAMS TurboJet 385 TENDER

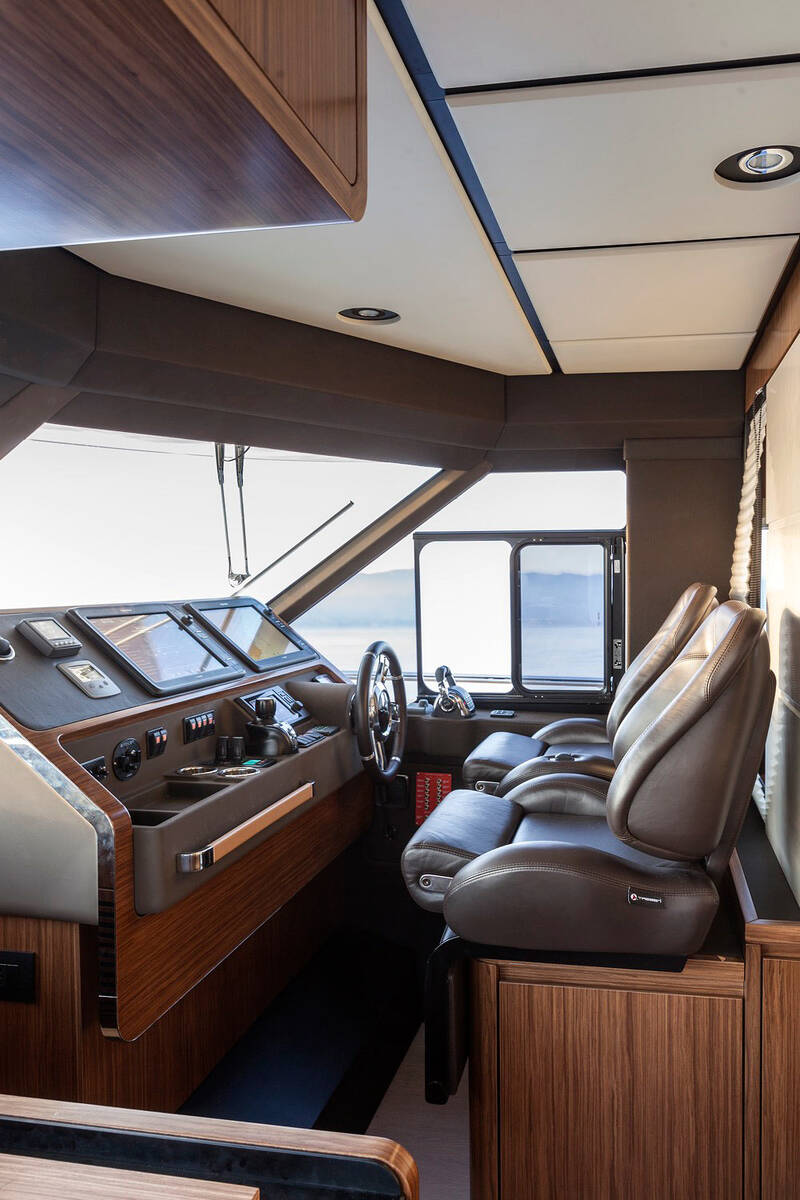

• Located in forward area of starboard side on main deck, in raised position
• 2 helm seats, adjustable pilot seat (electrical lifting only), fixed co-pilot seat.
• Stainless steel handrail
• Steering wheel
• Housing for DC/AC electric panel
• Dashboard consisting of:
• - 1 Volvo Penta 7” multifunction display with diesel level indicator
• - BRONZE series electronic navigation instruments
• - Volvo Penta engine start display
• - Chain washing pump controls
• - Battery parallel controls
• - alarm mute controls
• - steering area light controls
• - red spotlight control for night-time navigation
• - windscreen wiper and washer controls
• - bow winch controls
• - Horn controls
• - auxiliary / spare controls
• - trim tab position indicator and controls
• - Bow thruster controls
• Control and monitoring/alarm panel integrated in the Raymarine displays:
• - bilge pump activation
• - gray water tank level
• - display for electric energy source conditions
• - timed control for draining gray water tank
• - timed control for draining holding tank
• - Fresh water level gage
• - warning for tenderlift submersed with engines running
• - crew cabin door open alarm
• - high temperature of engine gas raisers
• - shore power connection active
• - engine room ventilation control
• - navigation light and riding light controls

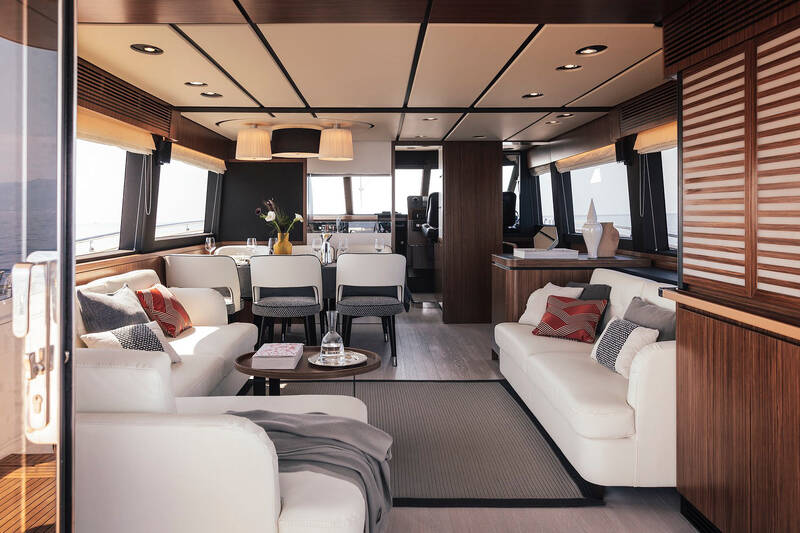

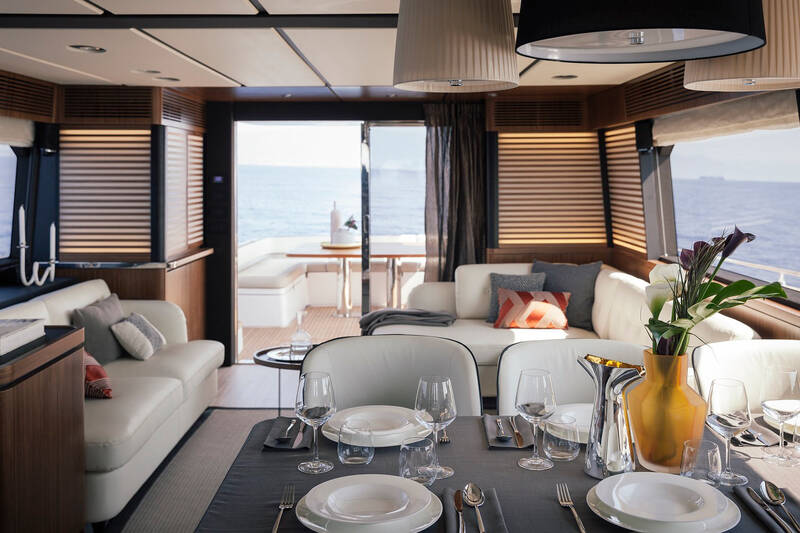

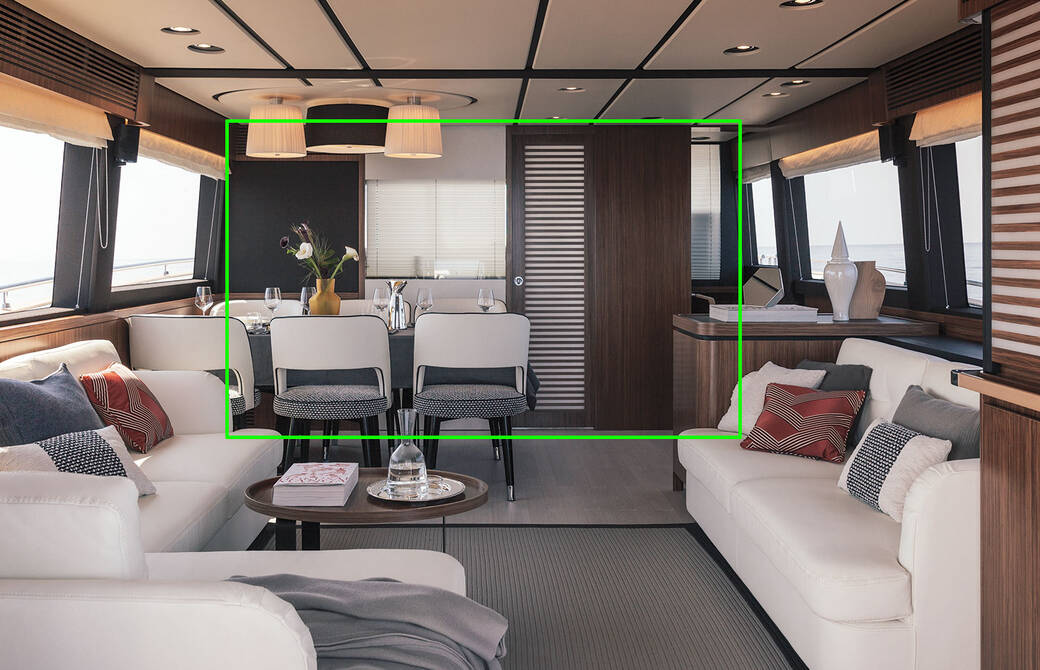

• Satin-effect walnut furniture
• Carpeted floor with insulating mat underneath
• Saloon/dinette/galley floors all on one level

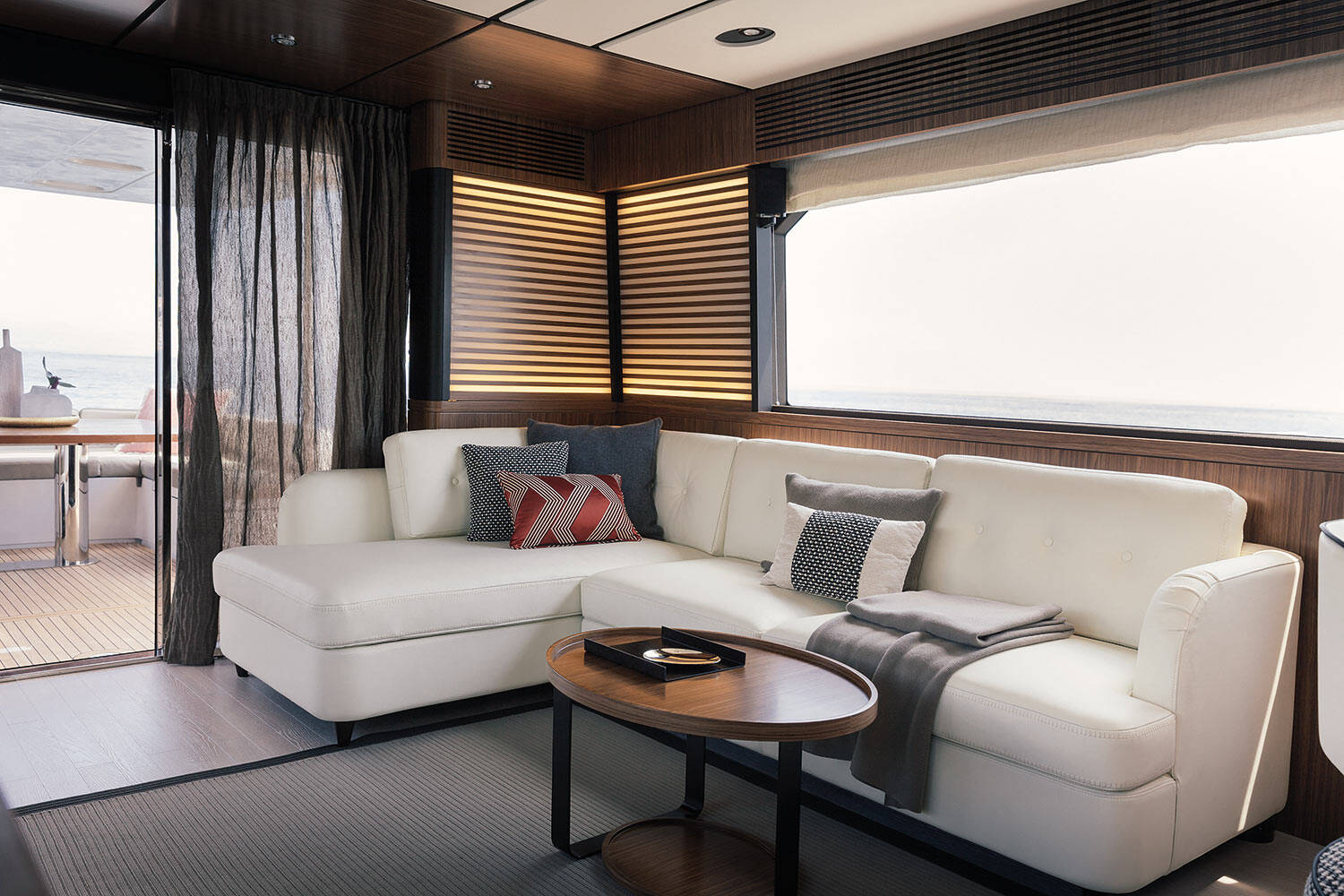

• 1 “L”-shaped sofa, on aft port side
• Lounge table
• Long cabinet on starboard side, with drawers and shelves, fitted to house a TV-lift system
• Saloon door curtain in fabric
• LED lighting, with dimmer
• Roman blinds for side windows, as far as the dinette area
• Access door to the engine room for engine unloading

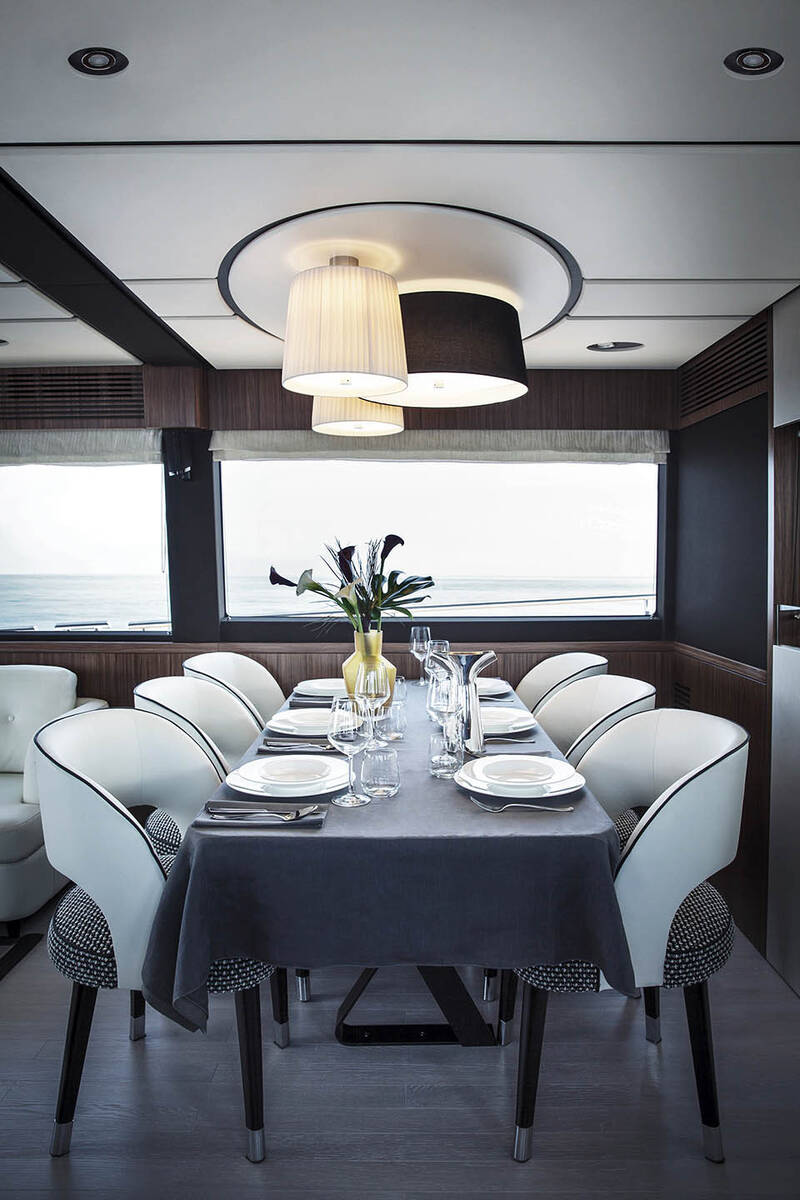

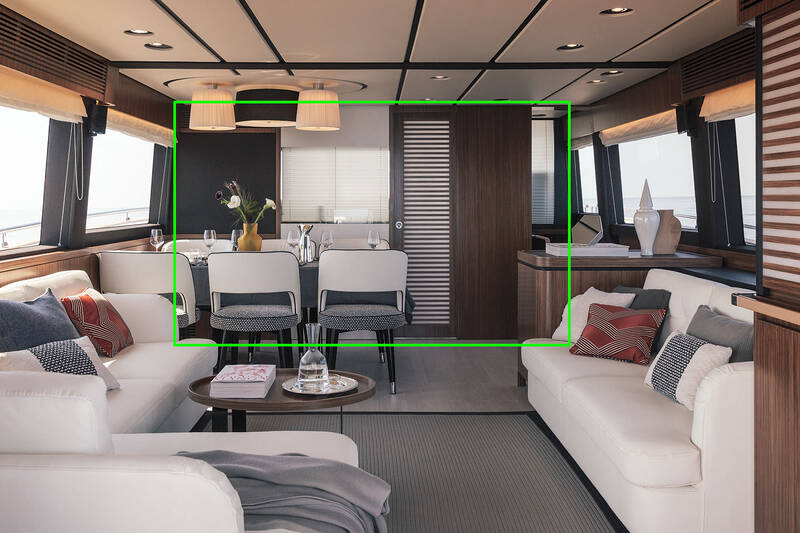

• Dinette area at center of main deck
• Carpeted floor with insulating mat underneath
• Rectangular table with 6 chairs
• Access ladder on starboard side, leading below deck

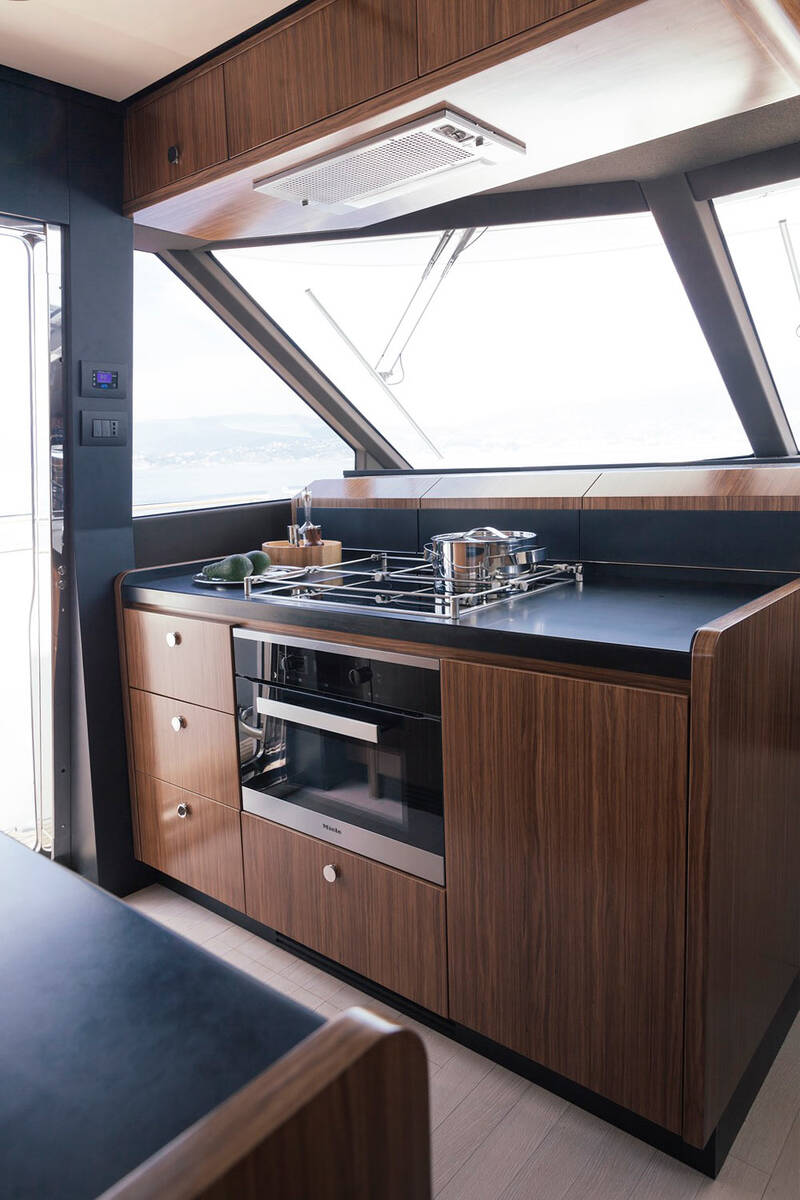

• Located in forward part of saloon, on port side
• Low cupboard for crockery on starboard side (behind steering system)
• Refrigerator-freezer with total capacity of 220 liters
• Countertop in thick black HPL slab
• Hot/cold mixer tap
• Stainless steel sink
• Extractable waste bin
• Cabinet with shelves, storage area and rubbish bin
• Ceramic glass 4-hob range and silicone pot holder
• Extraction hood
• Microwave oven
• Wall unit
• Kitchen area floor in light oak laminate

• LED walkway lights on steps
• Handrail on stairs
• Cabinet for accessories below the stairs

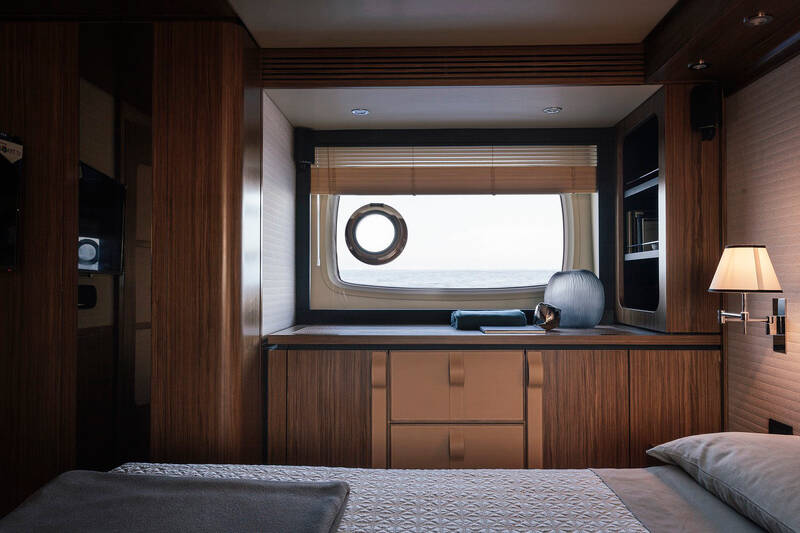

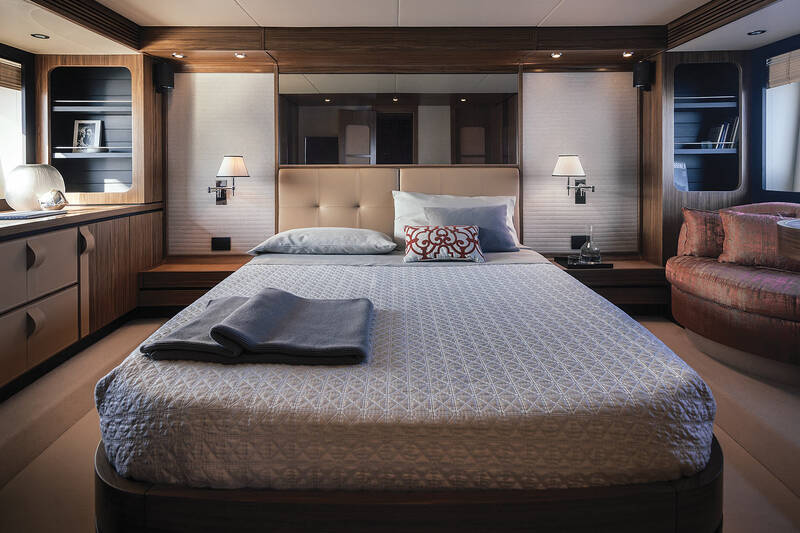

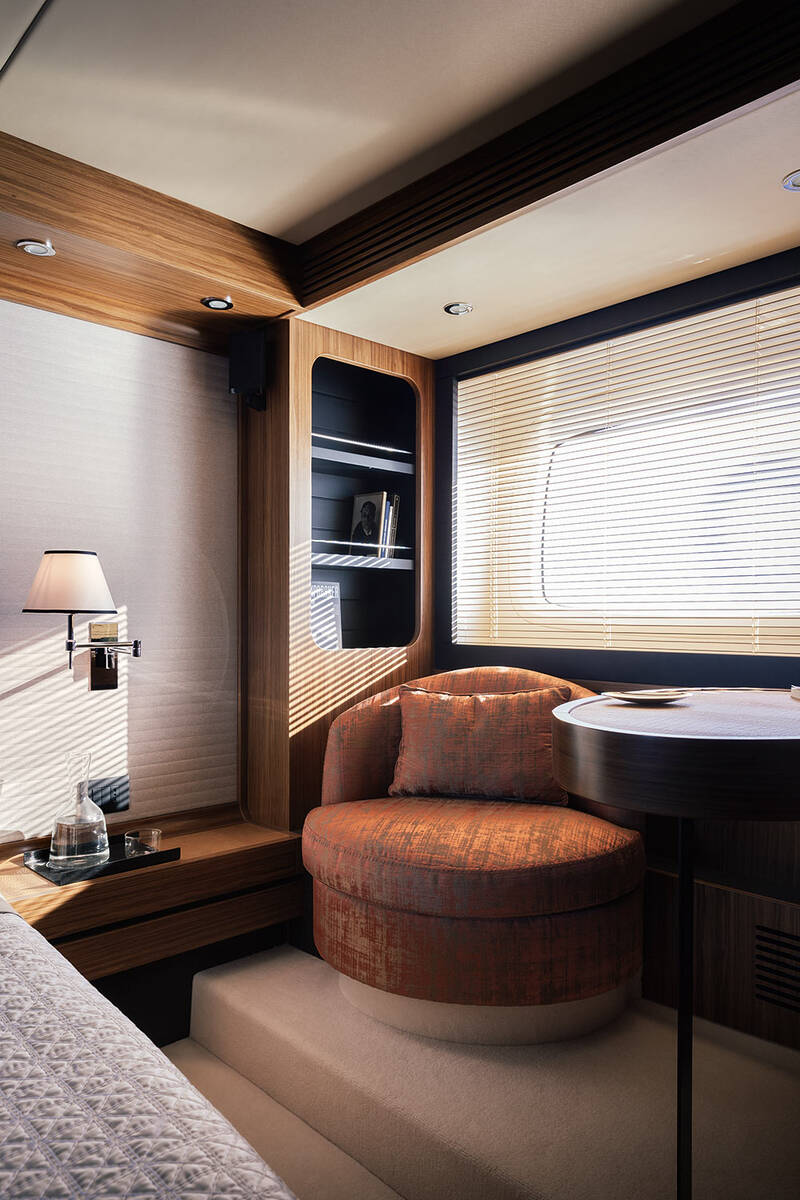

• Amidships, “full beam”
• Direct access to head
• Carpeted floor
• Double bed positioned longitudinally, with storage area (separate compartments) underneath accessed by lifting the bed base
• Mattress, pillows and bedspread
• Bedside tables with storage compartments
• Headboard mirror
• Vanity unit with seat positioned against port bulwark.
• Long, low cabinet with 2 drawers and 4 shelves, on starboard side
• 2 large panoramic windows with openable portlights, d.250mm
• Light-colored wood Venetian blinds
• Wardrobes with hanger bar and shelves, on port and starboard sides
• 230V AC sockets
• LED lighting
• 2 table lamps at sides of bed

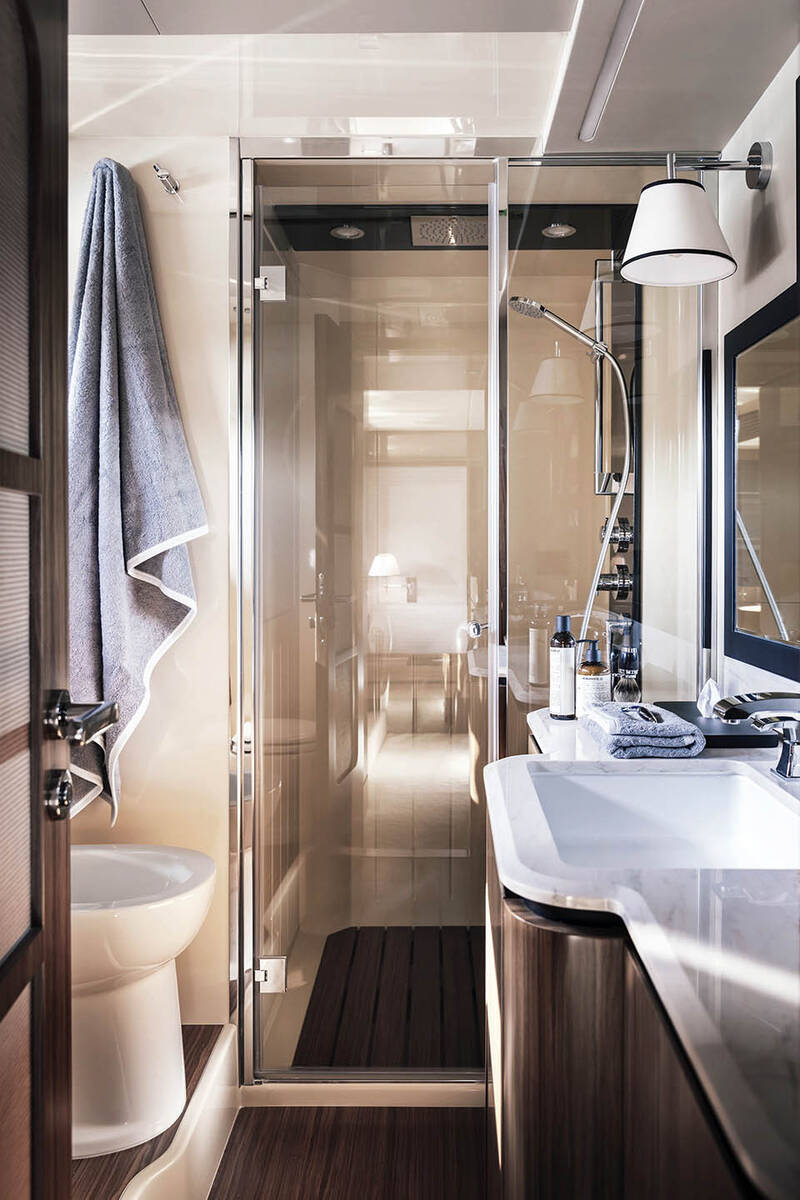

• Located on port side, with direct access from cabin.
• Window with oval, openable portlight
• Washbasin and hot/cold water mixer tap
• Washbasin top in agglo marble, with storage compartments
• Mirror
• Cabinet under the washbasin with panels (towel rail) on shower side and towards the cabin
• Air extractor in the shower enclosure
• Walnut floor with a non-skid finish
• Separate shower enclosure with tempered glass door
• Shower support with adjustable height + shower head on ceiling, with mixer tap/flow diverter
• Shower enclosure lighting
• Black aluminum Venetian blind
• High gray water level alarm
• Tecma toilet with control panel and visual alarm for full tank
• Support for wipe-holder
• 230V AC socket
• Emergency exit (towards main deck) in ceiling
• accessory set consisting of:
• - 1 toilet brush
• - 2 hooks
• - 1 toilet roll holder
• - 1 towel rails
• - 1 soap holder

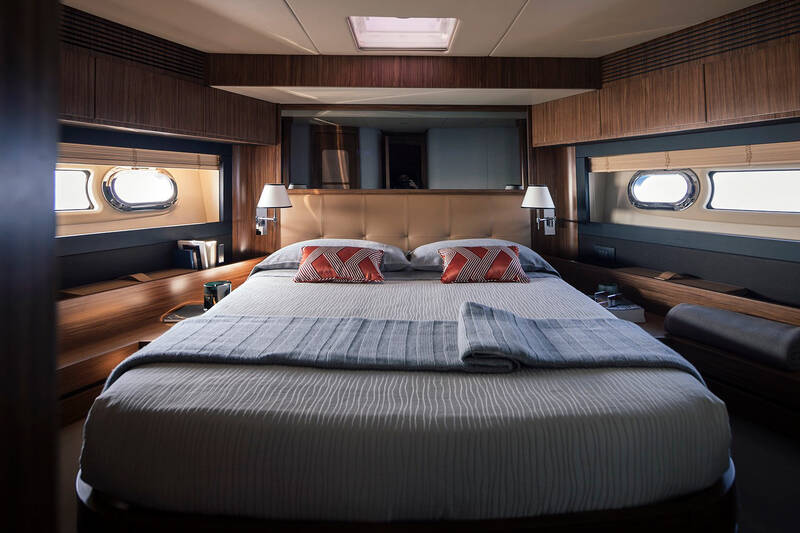

• Located at the bow of the below deck area
• Direct access to private head, on port side
• Double bed with tip-up structure for accessing the locker below
• Mattress, pillows and bedspread
• Carpeted floor
• Cupboard with shelves (port side)
• Wardrobe with hanger bar, mirror and shelves (starboard side)
• Wall cabinets on the bulwark
• Shelf with storage compartments next to bedside table
• Headboard mirror
• 2 LED wall lights/reading lights at sides of headboard
• Windows on both sides, with openable oval portlights
• Shelves - bedside table
• Hatchway on ceiling, with foldaway mosquito net and blind
• Light-colored wood Venetian blinds
• 230V AC sockets

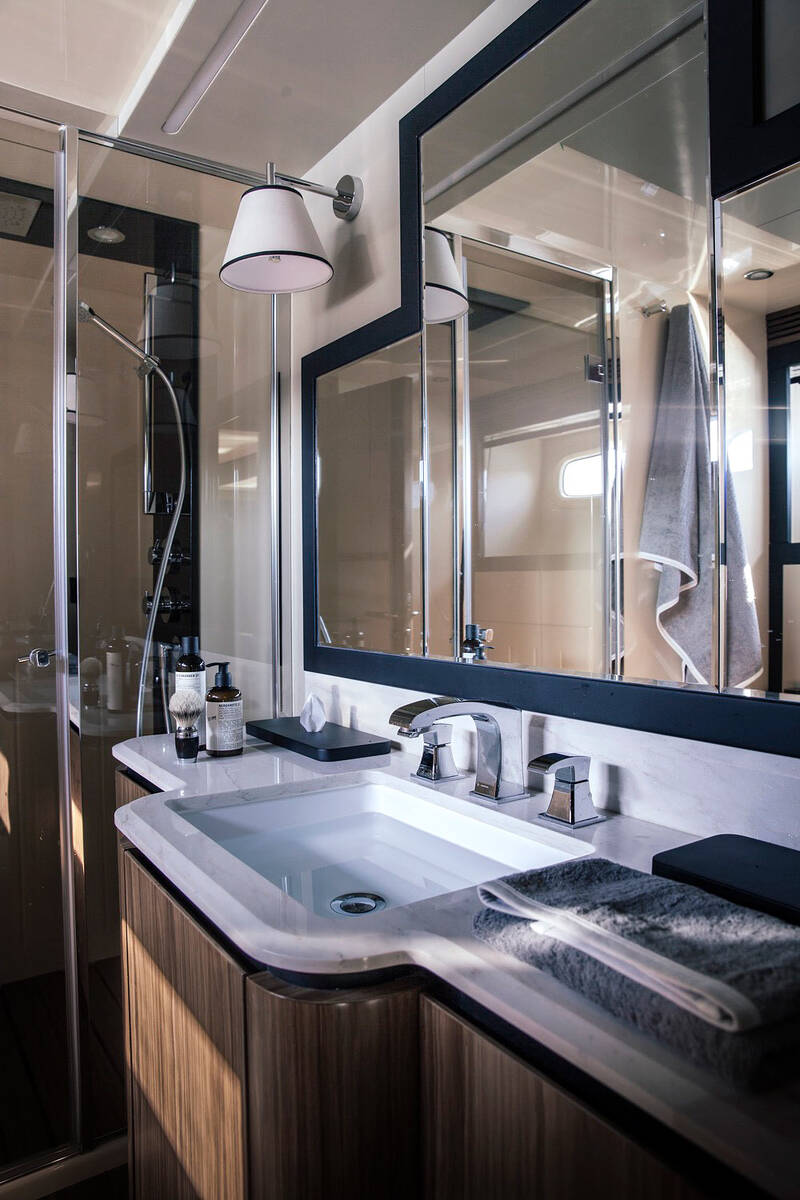

VIP head

• Located on port side, with direct access from VIP cabin
• Washbasin top in agglo marble
• Hot/cold mixer tap
• Mirror
• Cabinet with doors under the washbasin
• Wall unit
• Washbasin
• Walnut floor with a non-skid finish
• Separate shower enclosure with tempered glass door
• Shower support with adjustable height and thermostatic mixer tap
• Shower enclosure lighting
• Electric air extractor in the shower enclosure
• Openable round portlight on bulwark, diam. 300mm
• Black aluminum Venetian blinds
• High gray water level alarm
• Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank)
• LED lighting on ceiling
• 230V AC socket
• accessory set consisting of:
• - 1 toilet brush
• - 2 hooks
• - 1 toilet roll holder
• - 1 towel-holder bar
• - 1 soap holder

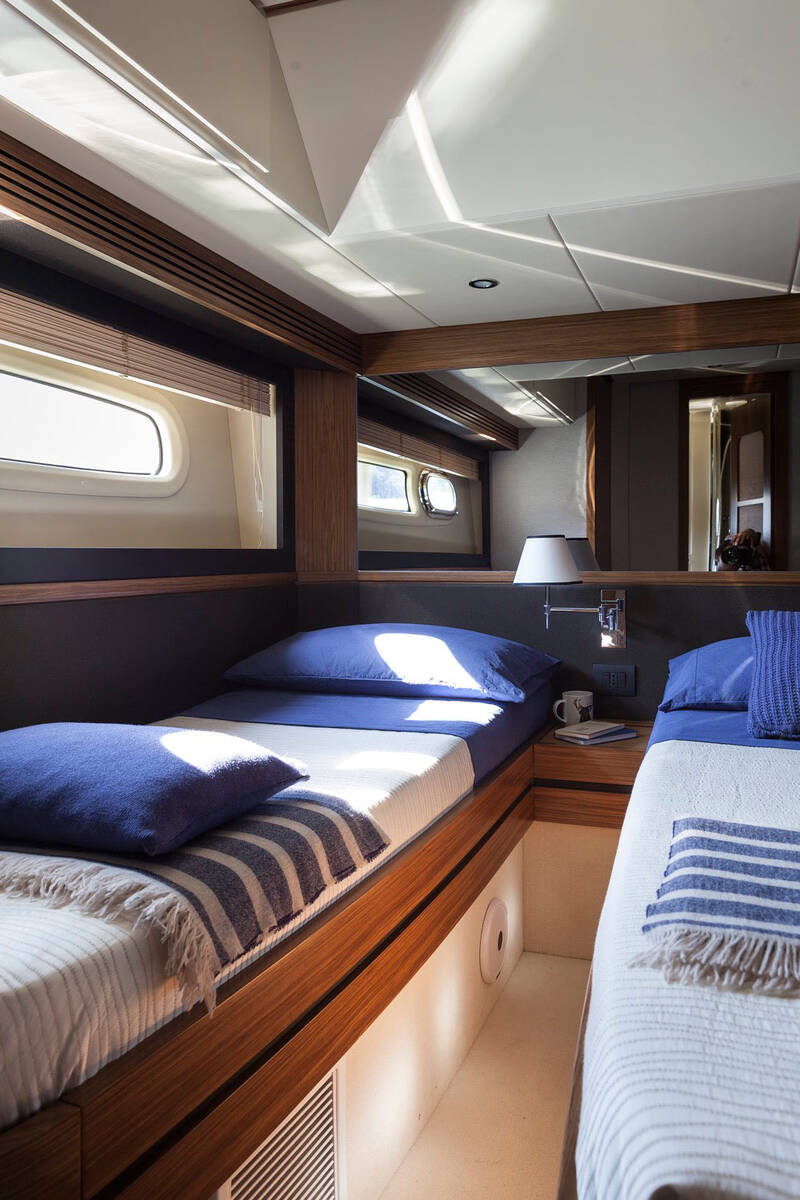

• Located on starboard side of below deck area
• Access from corridor
• 2 single beds, side-by-side
• Mattresses, pillows and bedspread
• Central bedside table (with storage compartment) between the 2 beds
• Window with oval, openable portlight
• Wardrobe with hanger bars, shelves (headboard mirror)
• Wall unit
• Overhead LED spotlights and LED reading lights
• 230V AC socket
• Light-colored wood Venetian blind
• Storage compartments beneath the beds

• Located on starboard side, with access from guest cabin and corridor
• Washbasin top in agglo marble
• Hot/cold mixer tap
• Mirror
• Cabinet with door under the washbasin
• Wall unit with door
• Washbasin
• Walnut floor with a non-skid finish
• Separate shower enclosure with tempered glass door
• Shower support with height adjustment and hot/cold mixer tap
• Shower enclosure lighting
• Air extractor in the shower enclosure
• Openable round portlight on bulwark, diam. 300mm
• Black aluminum Venetian blinds
• High gray water level alarm
• Tecma toilet with control panel (drainage/no drainage, with visual alarm for full tank)
• 230V AC socket
• accessory set consisting of:
• - 1 toilet brush
• - 2 hooks
• - 1 toilet roll holder
• - 1 towel-holder bar
• - 1 toilet brush holder

• Located on port side of cabin area, accessed from the corridor
• 2 shelves on bulwark, with eyelets and a set of straps for holding baggage
• 1 open tall unit with shelves
• LED lighting
• 1 round openable portlight, d. 300mm
• Wooden Venetian blind
• Carpeted floor
• Electric and hydraulic fittings for airconditioning circuit
• 1 230V AC socket

• 2 bunk beds
• Mattresses, pillows and bedspread
• 2 LED reading lights
• 230V AC  sockets
• Cupboard with shelves
• Storage compartments
• Carpeted floor
• Wooden Venetian blind

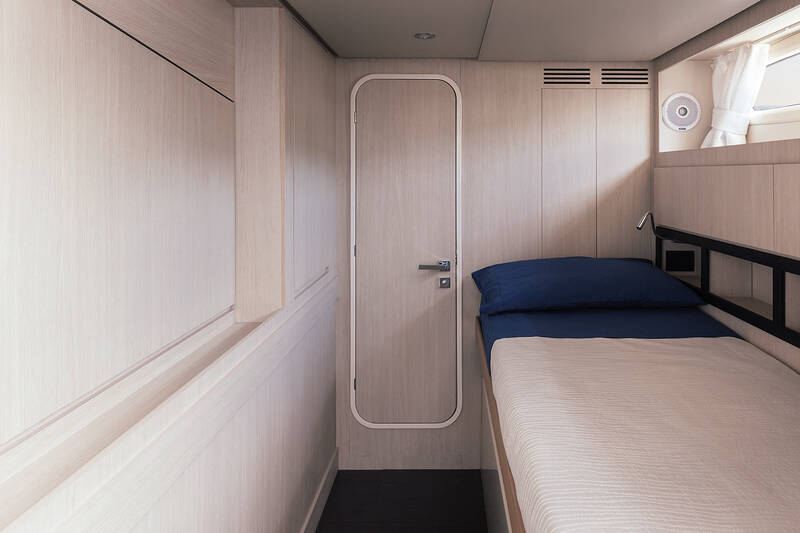

• Access via ladder with door on port side (access from platform)
• 2 single beds (1 foldaway)
• Mattresses, pillows and bedspread
• 2 cabinets with hanger bars
• Shelves
• Oval openable portlight, with curtain and mosquito net
• Panoramic window facing towards stern platform
• Carpeted / GRP floor
• Cloth blind on the panoramic window

• Access from crew cabin
• Mirror
• Wall unit
• Washbasin with hot and cold mixer tap
• Cabinet
• Non-slip floor
• Shower enclosure lighting
• Oval openable portlight, with curtain and mosquito net
• Tecma toilet with control panel (drainage/no drainage), with visual alarm for full tank
• 1 230V AC socket
• accessory set consisting of:
• - 1 toilet brush
• - 2 hooks
• - 1 toilet roll holder
• - 1 toothbrush holder

• Electricity supply powered from shore power socket or generator
• Onboard voltages:
• - 230V-50Hz AC
• - 24V DC
• - 12V DC
• Electric panels with switches and instruments in engine room, saloon, and steering area and junction boxes in the various areas
• Button for temporary parallel emergency activation of service/start battery sets
• Power circuit breakers to protect the input lines (shore and genset)

Galvanic current insulation

• zink anodes

Generator

• 1 7Kw 230V generator in engine room

• 1 shore power socket near the cockpit. they are activated by means of remote control switches.

• Services: 6 AGM type batteries, 90Ah 24V DC
• Engines: 4 AGM type batteries, 70Ah 24V DC
• Generator: 1 AGM type battery, 70Ah 12V
• Bow thruster: 24V battery set, 70Ah (4)
• 24V 80A battery charger: services and engines / thruster
• 12V 12A battery charger: generator
• Battery cut-out switches

• AC sockets: Type B plug sockets, standard Italian socket. Other socket standards are available for the specific destination market.
• DC sockets: 12V cigarette lighter (flybridge)
• USB charging socket in the internal wheelhouse
• 24V lighting (LED)
• 230V socket in engine room
• LED lighting system, with STD dimmers in saloon and cockpit
• 24V watertight external lights (LED)

• For STD equipment, see “flybridge dashboard equipment” and “internal dashboard equipment” paragraphs
• For a detailed list of alternative/additional equipment available, please refer to the Optionals price list

• 1 centrifugal electric pump 24V with automatic and manual controls, located in engine room
• 1 centrifugal electric pump 24V with automatic and manual controls, located in aft compartment
• 1 low-flow rate electric pump 24V, in the cabin area
• 1 centrifugal electric pump 24V with automatic and manual controls, located in the cabin area
• Warning for pump operation and high level alarms in the monitoring system
• 1 manual pump with crossover valve (2 intake points) beneath starboard guest cabin
• 1 manual pump (activated from cockpit) with crossover valve (2 suction points) in engine room
• 1 manual pump (activated from cockpit) with crossover valve (1 suction point) in the aft area
• Emergency engine bilge drainage via intake connected to the crossover valve of the seawater cooling circuit of an engine.

• Extinguisher gas cylinder, with mechanical handle activation, in the engine room
• Emergency engine/generator switch-off control in cockpit

• 2 tanks in 5754 aluminum alloy (2250 liters each) in engine room
• Tank interconnection with check valves
• Single electronic level sensor on starboard tank, linked to the Volvo engine display
• Visual level gage on port tank
• 2 refueling plugs on sides of deckhouse, equipped with backflow devices
• 2 vents on bulwark
• Diesel check solenoid valves for engines and generator (with ignition switched on) with manual bypass
• Racor single separator/settling filters
• Fuel drawingtap on both tanks

• 2 tanks (total 1000 liters)
• Pressure pump
• System shut-off via valves and manifolds
• Toilet flushing with fresh water
• 80-liter water heater with 1200W electrical resistance, with thermostatic mixer valve, to guarantee greater autonomy.
• Level gage integrated in the boat monitoring system
• Water level sensor with pressure pump blocking if there is no water.
• Hot and cold water lines in the heads, galley and cockpit.
• Cold water line in engine room
• Hot and cold water line for flybridge sink and shower on GRP mast
• Embarking point on deck walk arounds (starboard side)

• TECMA toilet with macerator built into the base
• 500-liter collection tank beneath cabin area
• TECMA control panels with an indicator of the operating status, system drainage interlocking indicator if the tank is full.
• Level gage integrated in the boat monitoring system
• Container drainage via intake vent on deck (port side)
• Outboard discharge via specific line, with timed electric pump on container outlet (can only be used where local legislation permits it)

• 300-liter collection tank (for drainage from showers, washbasins and sinks) beneath cabin area
• Container drainage with automatic or manual timed control.
• Level gage and alarm integrated in the boat monitoring system
• Indicator lights and audible alarm in heads, for high gray water level
• Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
• Level sensor with automatic pump and alarm control from the wheelhouse
• Water drainage via manifolds (24V membrane pump)

• Engine cooling system: includes 2 seawater intakes with filter and valve (1 per engine)
• Generator cooling system: includes 1 seawater intake with filter and valve

• Engine room:
• - Natural ventilation via openings on the bulwarks, with external stainless steel grids and anti-mist profiles (that trap direct water spray and vaporised water from the outside)
• - Ventilation: 2 extractors 24V, connected to engine starting keys, with automatic and manual control

• Steering system: hydraulic power steering.
• Trim tab system: consisting of 2 AISI 316 blades, activated by hydraulic cylinder, each controlled by a dedicated hydraulic control unit
• Engine gas exhaust system:
• - "damp" gas exhaust with cooling water injection, with thermally insulated stainless steel manifolds and structural mufflers in fiberglass.
• - submerged gas exhaust vent windows and minimum bypass on hull sides
• - acoustic and visual alarm for high exhaust gas temperature on the monitoring system
• Engine room (further details):
• - routine engine room access via door in cockpit
• - access to the engine room for engine removal operations via hatches below the saloon floor
• - soundproofing and sound-absorbing paneling
• - engine room lighting provided by fixed LED lamps and 1 portable lamp
• - through-hull fittings for propeller shaft with mechanical ring seal in graphite, PSS type
• - bronze fittings for seawater intakes and outlets beneath the waterline

• Water system, WORLD SPEC version
• 1 compressor in engine room (92,000 total BTU)
• 1 seawater pump with relevant intake
• Each area has its own independent control panel
• 2 adjustable and closable delivery outlets in steering area
• Fancoil also in the fourth cabin (closet)

• 1  telescopic boat hook
• 5 anchor lines
• 24 m  fender lines
• 1 anchor chain stopper
• 8 fenders
• 8 blackfender covers
• 1 Owner's Manual
• 1 AZIMUT document holder
• 1 wooden model of the boat
• 1 AZIMUT warranty service booklet
• 1 stainless steel cutlery service
• 1 set of china plates
• 1 set of glasses
• 1 set of stainless steel cooking pans
• 4 sets of towels (with logo)
• 1 clock with glossy brass case
• 1 barometer with glossy brass case
• 4 floating key-rings
• 1 bag (with logo) for storing the manuals
• 1 remote control holder (with logo)
• 1 routine maintenance kit for steel
