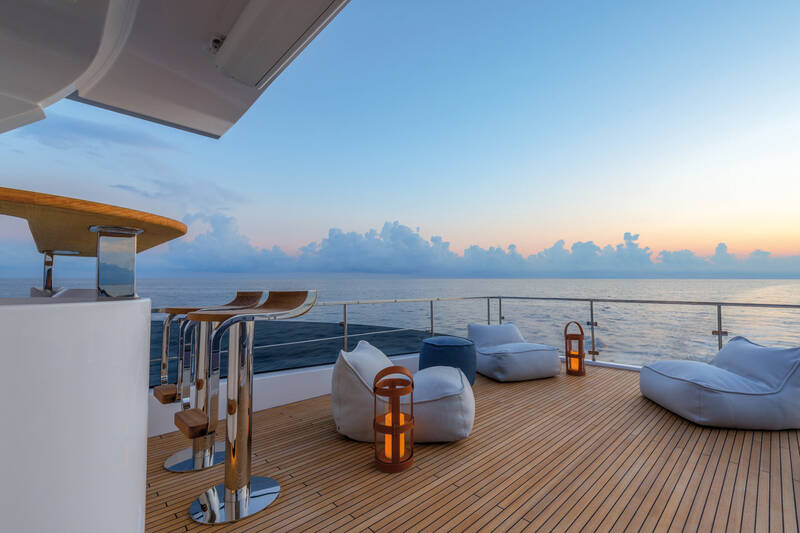

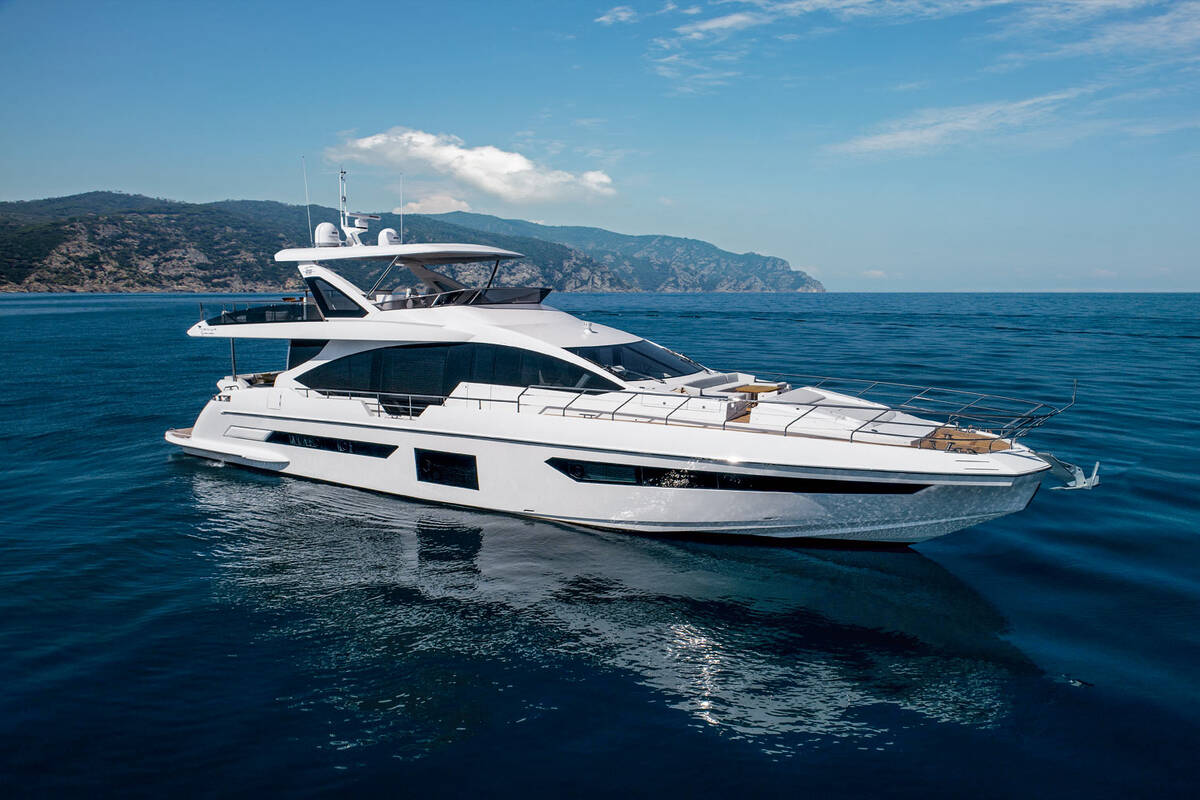

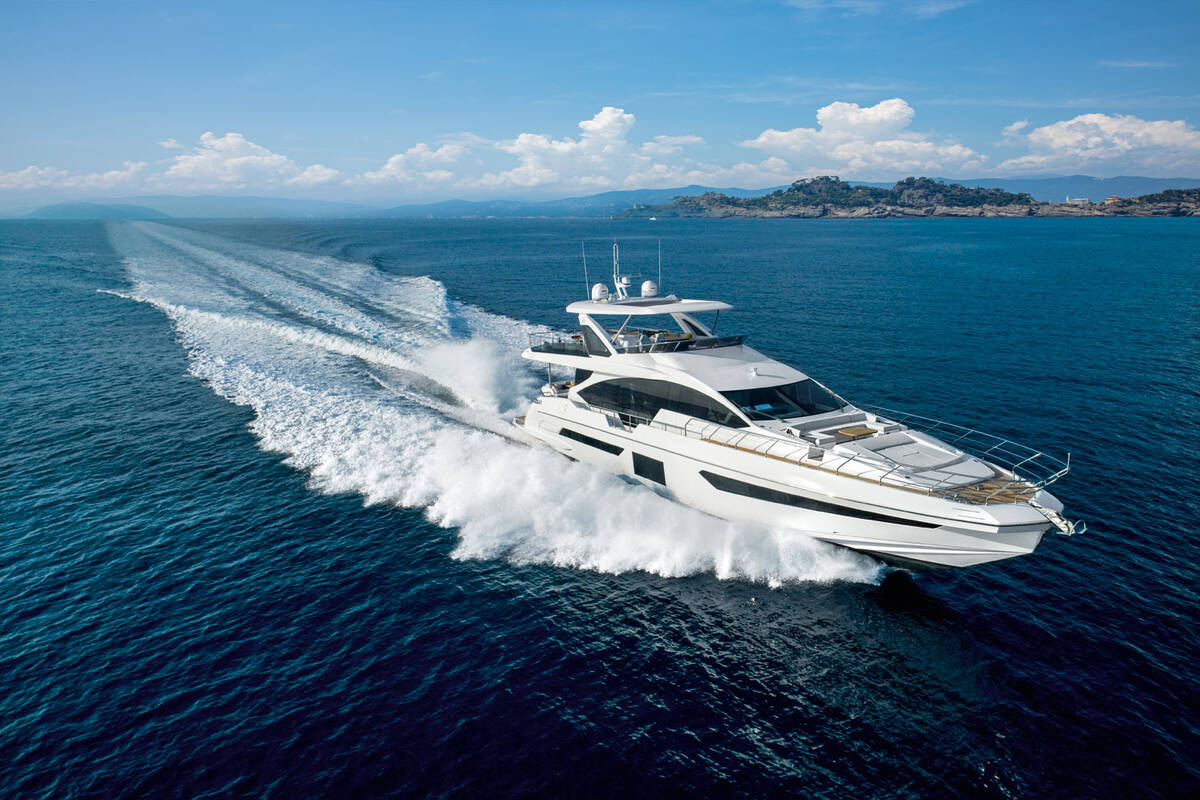

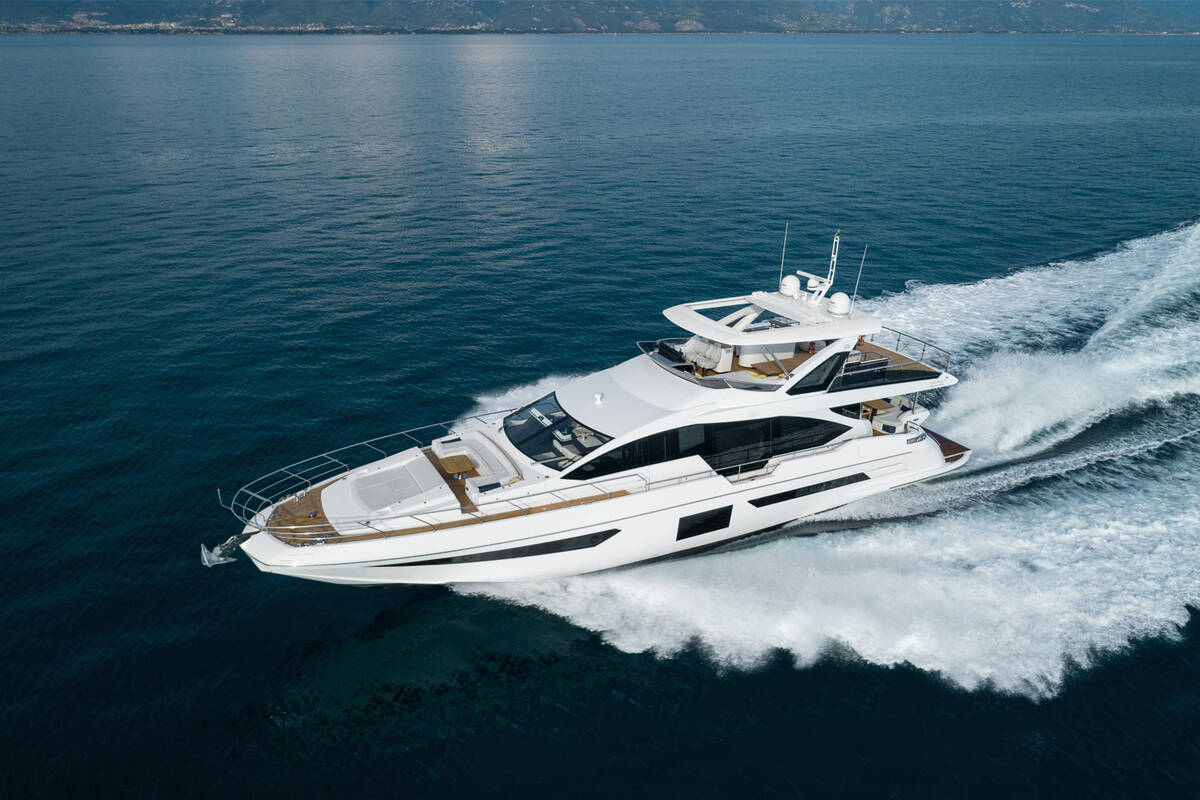

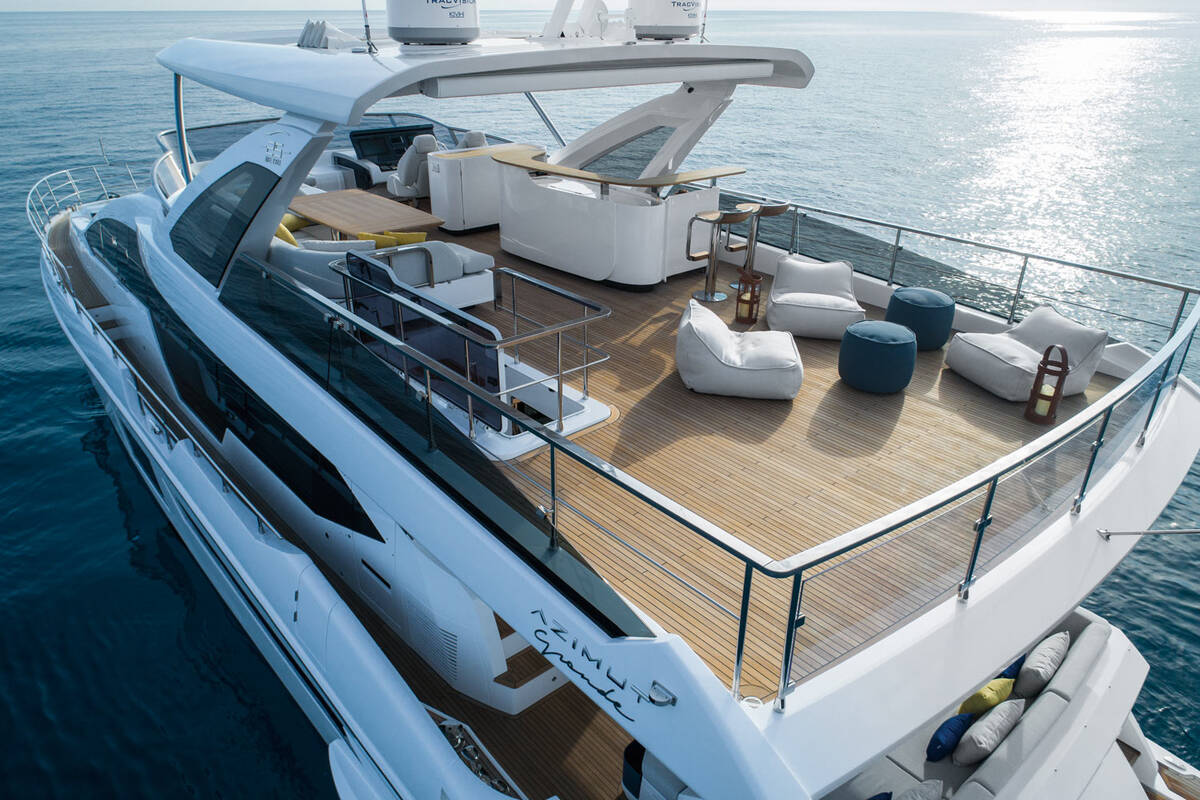

Flybridge
- Access to flybridge via external stairway, located on port side and equipped with stainless steel handrail
- External GRP stairway
- Teak-covered steps leading to flybridge
- Flybridge GRP flooring with anti-slip
- Plexiglas flybridge screen with stainless steel frame
- Radar arch complete with:
- - glass inserts on external sides
- - “25M” logo on radar arch and “Grande” wording on deckhouse tails
- - two watertight speakers for external use
- - LED technology spotlights
- - Flat support bases for navigation systems
- Fore port side sunbed area, composed of a GRP base with removable cushions and lockers built inside
- Dining area composed of:
- - one C-shaped sofa (consisting of two L-shaped modules placed side by side) with backrest, removable cushions for outdoors, lockers incorporated into GRP module, and LED strip lighting on the base
- - Fixed table, in front of fore sofa, with teak top
- - storage cabinet with LED strip lighting on the base
- Flybridge bar cabinet, with:
- - LED strip lighting on the base
- - sink built into cabinet with retractable water tap
- - Waste collection hatch
- - Fridge
- -Barbecue with stainless steel protective cover for cabinet door and safety off switch.
- - Panels and cabinet top for covering the household appliances when not used. It is also possible to install: Icemaker

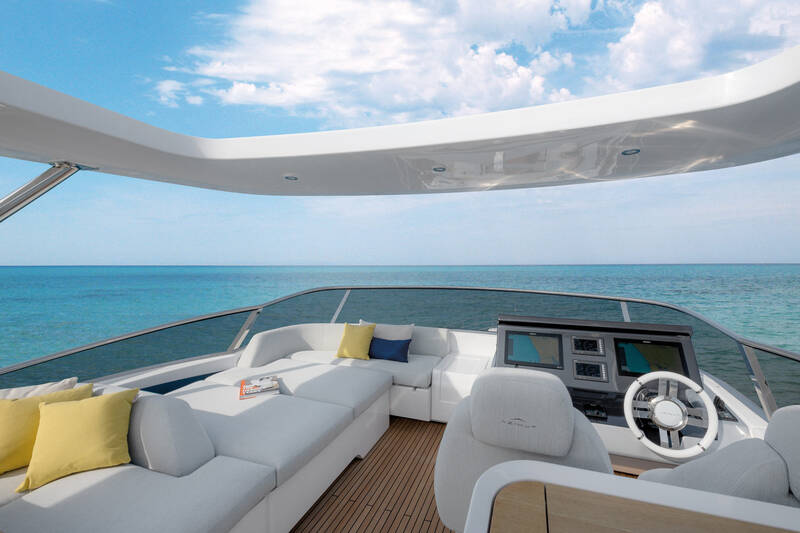

- Control station: seating area on starboard side
- Flybridge dashboard consisting of:
- - MAN 7" display for engines
- - Electronic navigation instruments version BRONZE and Raymarine monitoring
- - Engine controls
- - Steering wheel
- - Communication systems (VHF)
- - Bow thruster controls
- - Audible alarm controls
- - Trim tab controls (intruder)
- - 12 V socket
- Scuppers with stainless steel grids and Azimut logo
- Light mast
- Compliant navigation lights
- Manual searchlight
- Anti-slip floor
Bow / walk arounds
Bow
- 110 kg anchor
- 100-meter anchor chain, diameter 14 mm
- Stainless steel bow roller
- One electric vertical anchor winch, 3500 W, reversible, fixed to a stainless steel plate and recessed in relation to the main deck level
- Chain locker accessible through hatch, with internal lighting and drainage
- Fender compartment built in the fore peak
- Chain washing system
- Stainless steel anchor line anti-rubbing protection
- Two roller-type chocks
- Two stainless steel T-head cleats
- Bow hatch (emergency exit from VIP cabin)

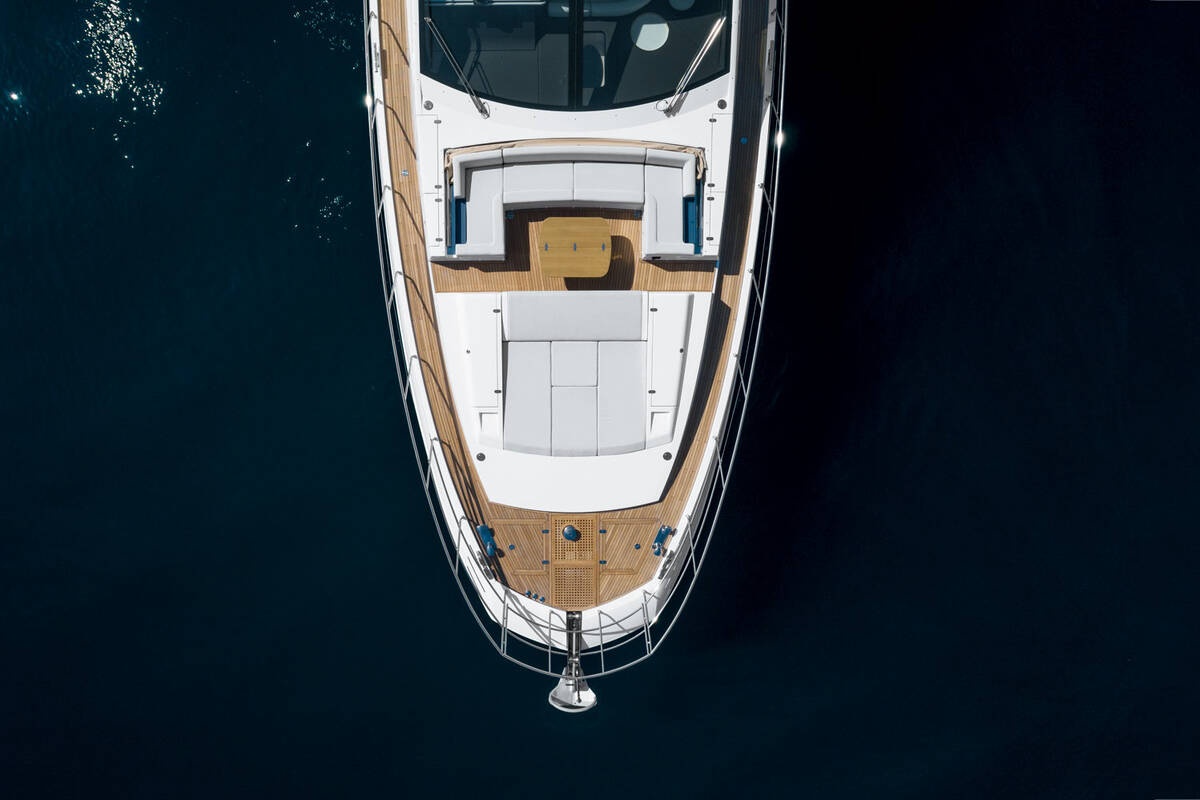

- Fore sunbed area with removable cushions in fabric for outdoors
- Two side lockers, one per side, located on the sides of the sunbed area
- Sofa built in the GRP structure, with backrest, equipped with three lockers and removable cushions for external use
- Protective cover for external cushions
- LED technology courtesy lighting
- Two watertight loudspeakers for external use placed at the base of the fore sofa
- Two storage compartments in CORIAN, one per side, built in the seating area, placed one on port side and one on starboard side
- Two electric windscreen wipers for cleaning the windscreen
- Windscreen shades
- Teak floor
- Scuppers with stainless steel grating and
- Azimut logo
Walk arounds
- Six side lockers (three on each side) in deckhouse bow area
- Two watertight side sliding doors, electrically controlled, for access from outside to the galley on starboard side and to the wheelhouse on port side
- Refueling plugs on both walk arounds
- Fresh water caps on starboard walk around (inside starboard cabin wardrobe)
- Black water outlet on port walk around (inside port cabin wardrobe)
- GRP side boarding gates
- Teak floor
- Pulpit with handrail O 40 mm, thickness 2 mm; and stanchion O 30 mm LED technology courtesy lighting
- Rubber rub-rail with stainless steel insert along hull sides and side protections
Cockpit / Platform / Garage

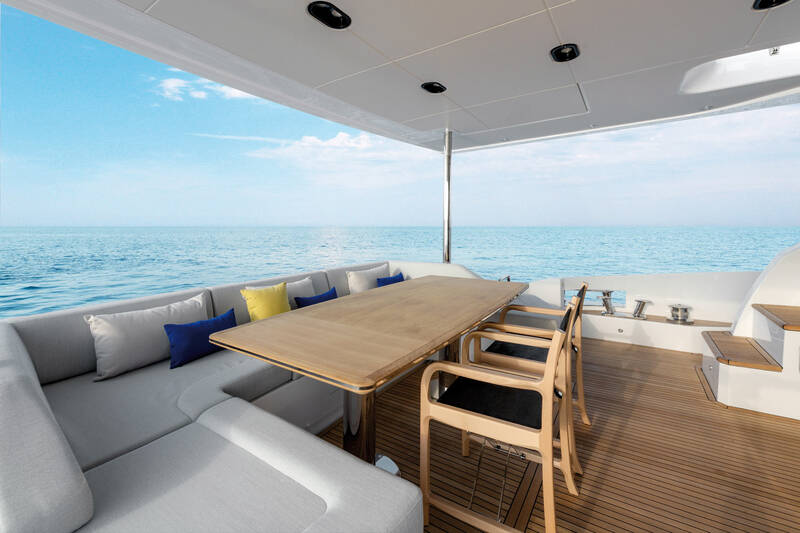

Cockpit
- Two accesses (one per side) with stainless steel gate
- Two stainless steel cleats mounted on GRP mooring stations
- Two electric vertical mooring winches, power 2300 W
- Two stainless steel chocks with rollers and aesthetic fairing in GRP
- One C-shaped sofa (in dining area) with backrest, in central position, built in the deck, equipped with lockers and removable cushions
- Two storage compartments in CORIAN, one per side, built in the seating area, placed one on port side and one on starboard side
- Fix teak table (in dining area) with fixed bases
- Saloon access door made in steel with tempered glass. It is composed of three flat panels: two sliding and one fixed, opening towards starboard side. The sliding panels are provided with intermediate stops allowing partial opening of the door
- Protective cover for external cushions
- Scuppers with stainless steel grating and Azimut logo
- Cockpit bar cabinet, positioned towards starboard side, provided with:
- - audio console
- - sink built into cabinet with retractable water tap
- - drawer-type fridge
- - Cover top
- It is also possible to add:
- - Icemaker
- Teak floor
- Two stainless steel flybridge support poles, O 90 mm
- Gangway extending system, three positions, maximum capacity 150 kg, operated through 24 V DC electro-hydraulic control unit
- Cockpit ceiling spotlights with LED technology
- LED courtesy lighting on flybridge ladder steps
- Two waterproof speakers for external use, located on ceiling
Platform
- GRP lifting platform mounted on stainless steel stiffening frame
- Teak flooring and slots for fast water drainage
- Cockpit external access steps in GRP with steps covered in teak
- Rub-rail on lifting platform, in rubber with stainless steel inserts
- External shower head, on starboard side
- Two fresh water shore intakes positioned on port and starboard sides
- Two stainless steel handrails O 40 mm, thickness 2 mm
- LED courtesy lights
- Extractable manual swimming ladder positioned on starboard side
- Fixed stainless steel ladder for access to/from the stern platform when lowered
Garage
- Garage access hatch in composite material
- GARAGE DIMENSIONS:
- - maximum length: 4145 mm
- - beam: 3130 mm
- - maximum length 1600 mm (total volume: 10 m3)
- HYPOTHETICAL GARAGE TENDER: Pirelli J39
- HYPOTHETICAL FLYBRIDGE TENDER: Pirelli J29

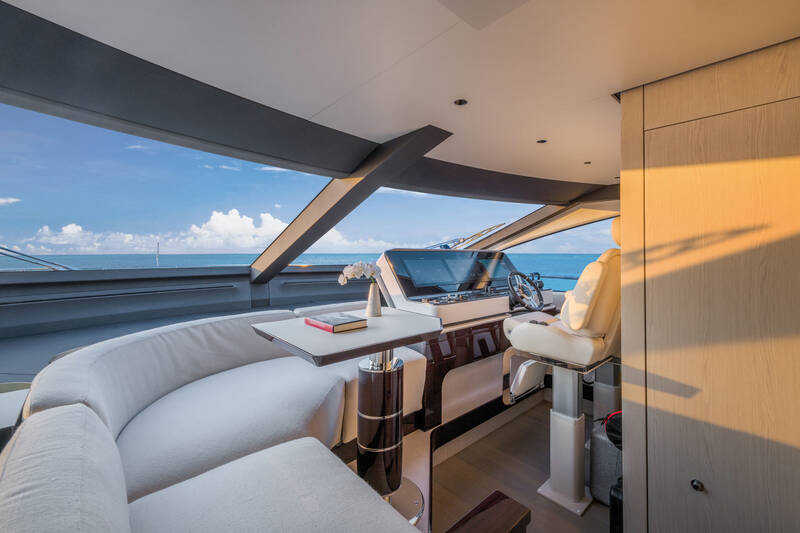

Wheelhouse
- The wheelhouse includes:
- - Helm seat with electric position adjustment complete with footrest and storage pocket on starboard side
- - Leather-covered steering wheel
- - Carpeted floor
- - Leather-coated ceilings, mullions, and window carters
- - LED technology lighting
- Internal dashboard consisting of:
- - MAN 7” display for engines Electronic navigation instruments version BRONZE and monitoring
- - Engine throttles
- - Communication systems (VHF)
- - Magnetic compass
- - Bow thruster controls
- - Audible alarm controls
- - 12 V socket
- Two adjustable air conditioning outlets
- Emergency panel
- L-shape two-seater sofa, on port side of the wheelhouse
Galley
- Located on starboard side, accessible through door aft of the wheelhouse.
- The galley is composed of:
- Fridge (419 l) + Freezer (247 l)
- Stainless steel sink with faucets
- Extractor hood
- Oven
- Induction hobs
- Four silicone pot holders
- Wooden floor
- Composite material worktop
- Storage wall units
- LED technology spotlights
- Sockets
Day toilet
- Located on port side, aft of the lower deck access ladder, composed of:
- Vitrified steel washbasin with lacquered top
- Faucets
- TECMA toilet
- Air suction fan
- Mirror
- Flooring in quartzite (from serial no. 023)
- Windows with built-in portlights and
- Venetian blind

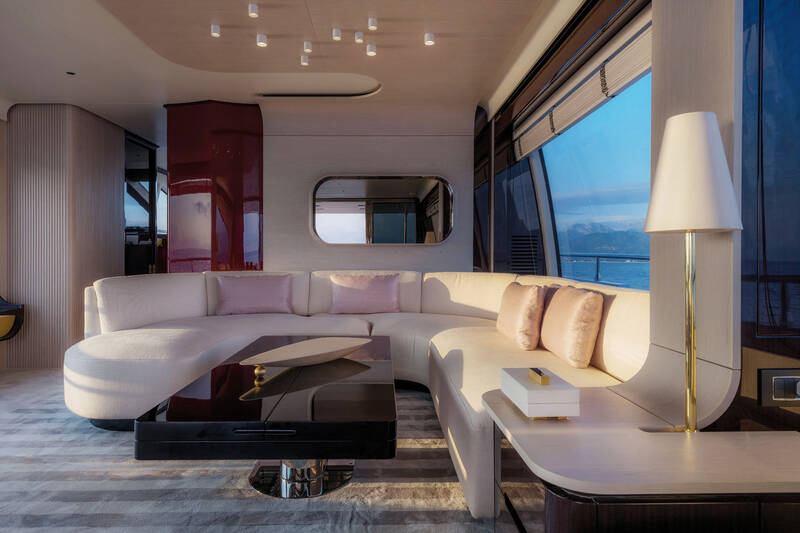

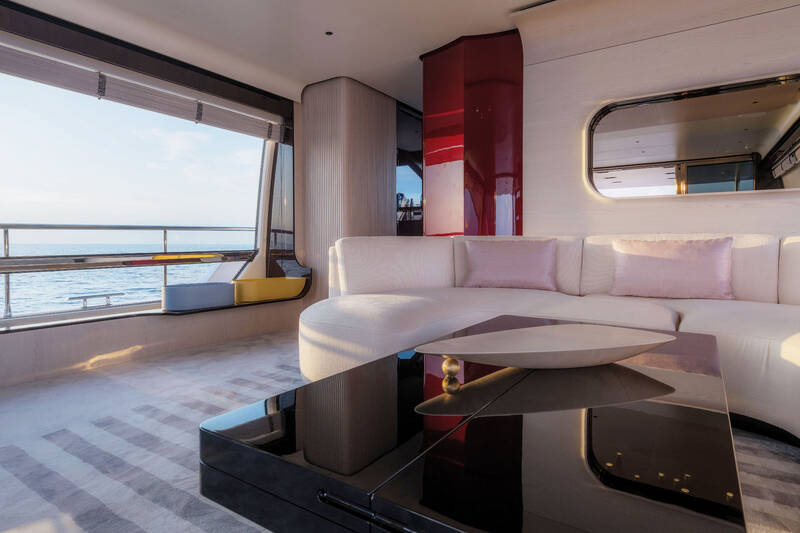

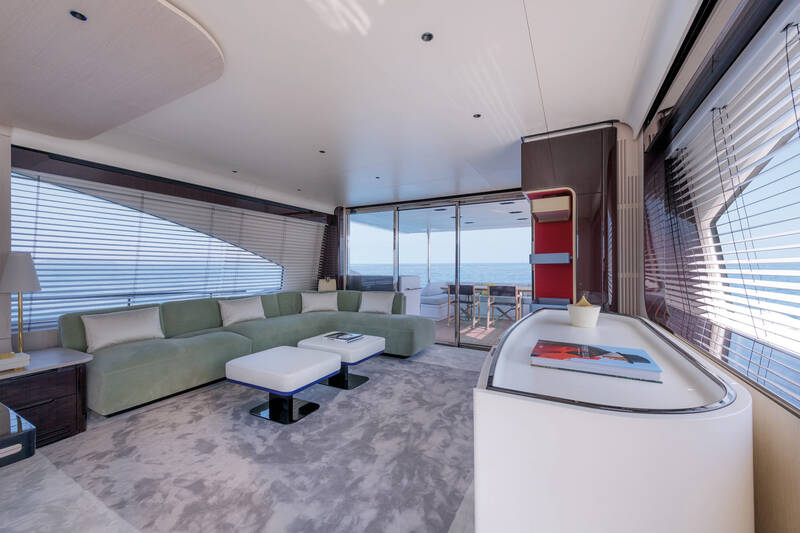

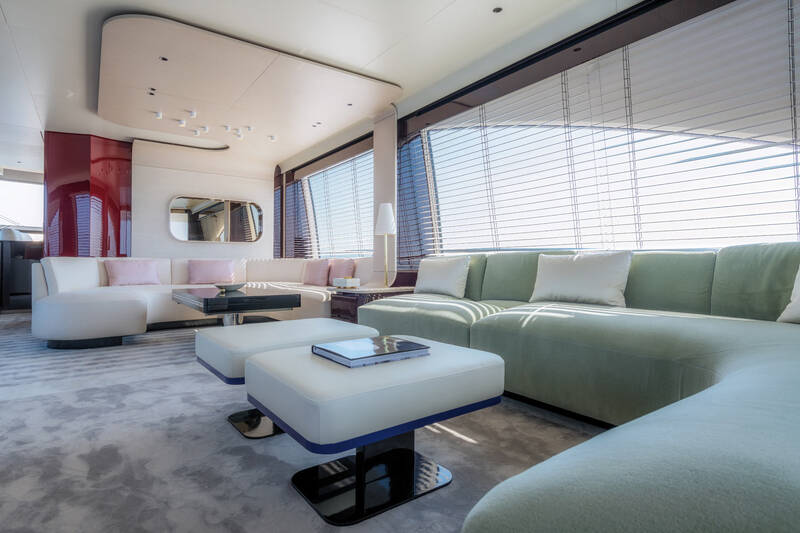

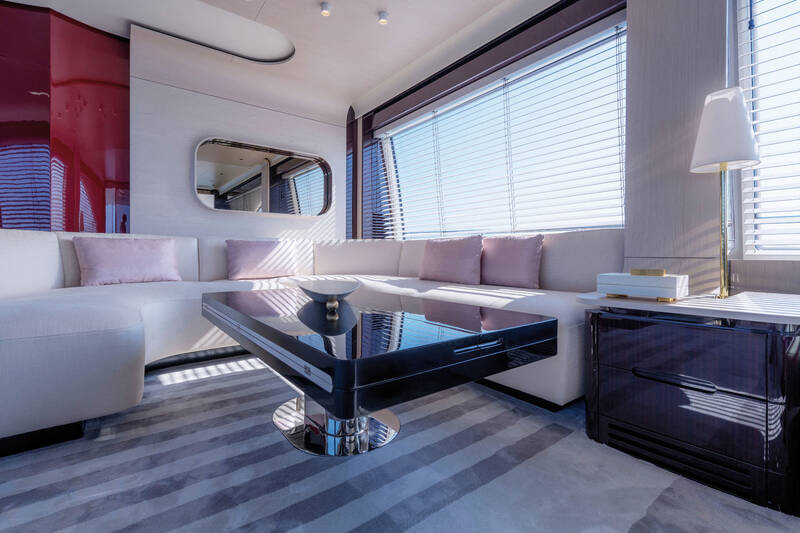

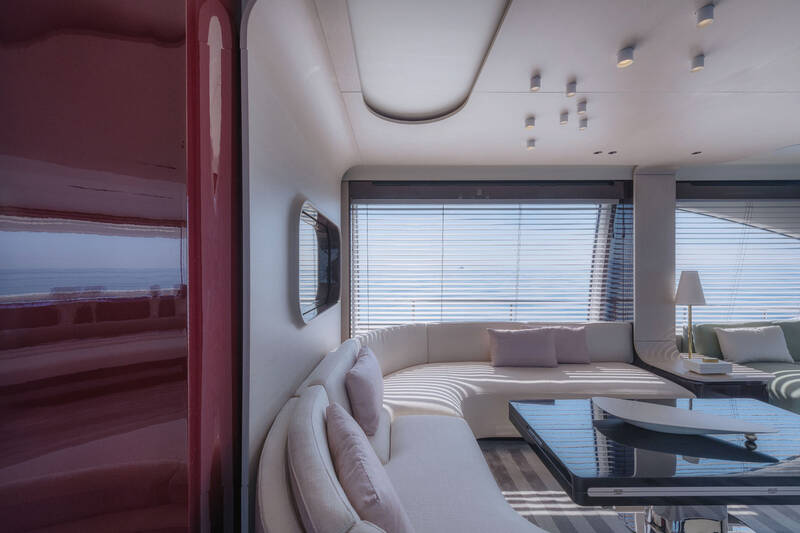

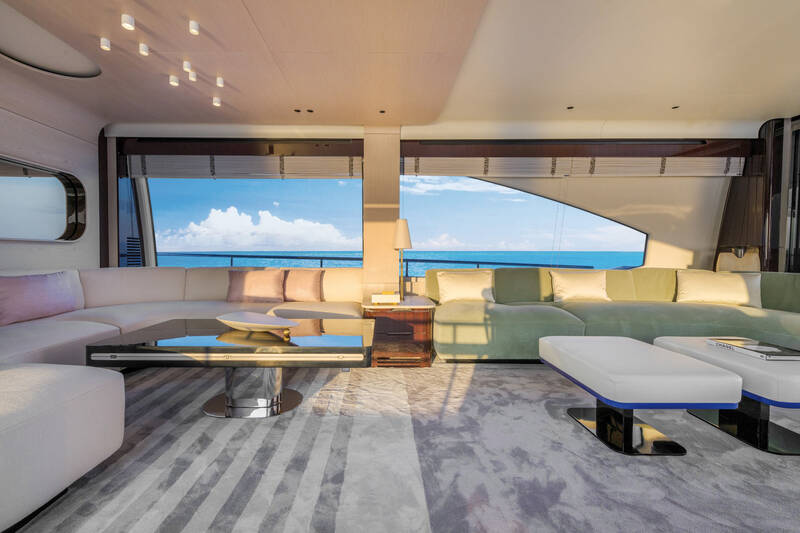

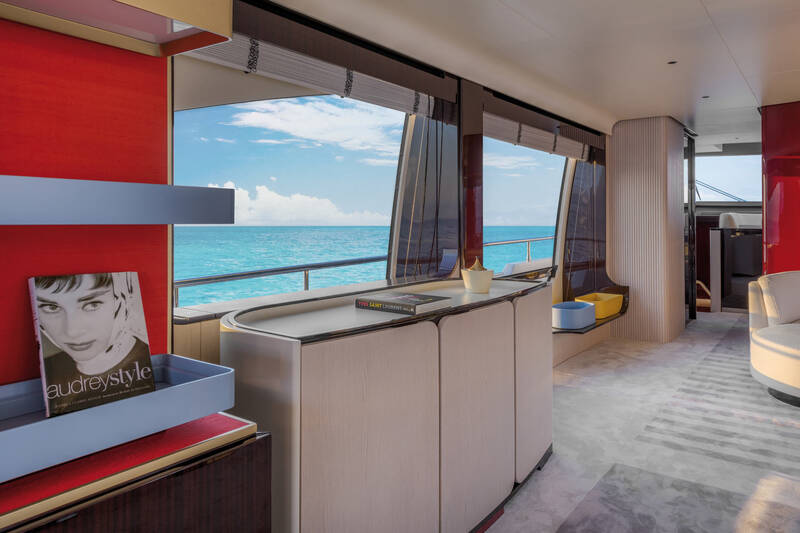

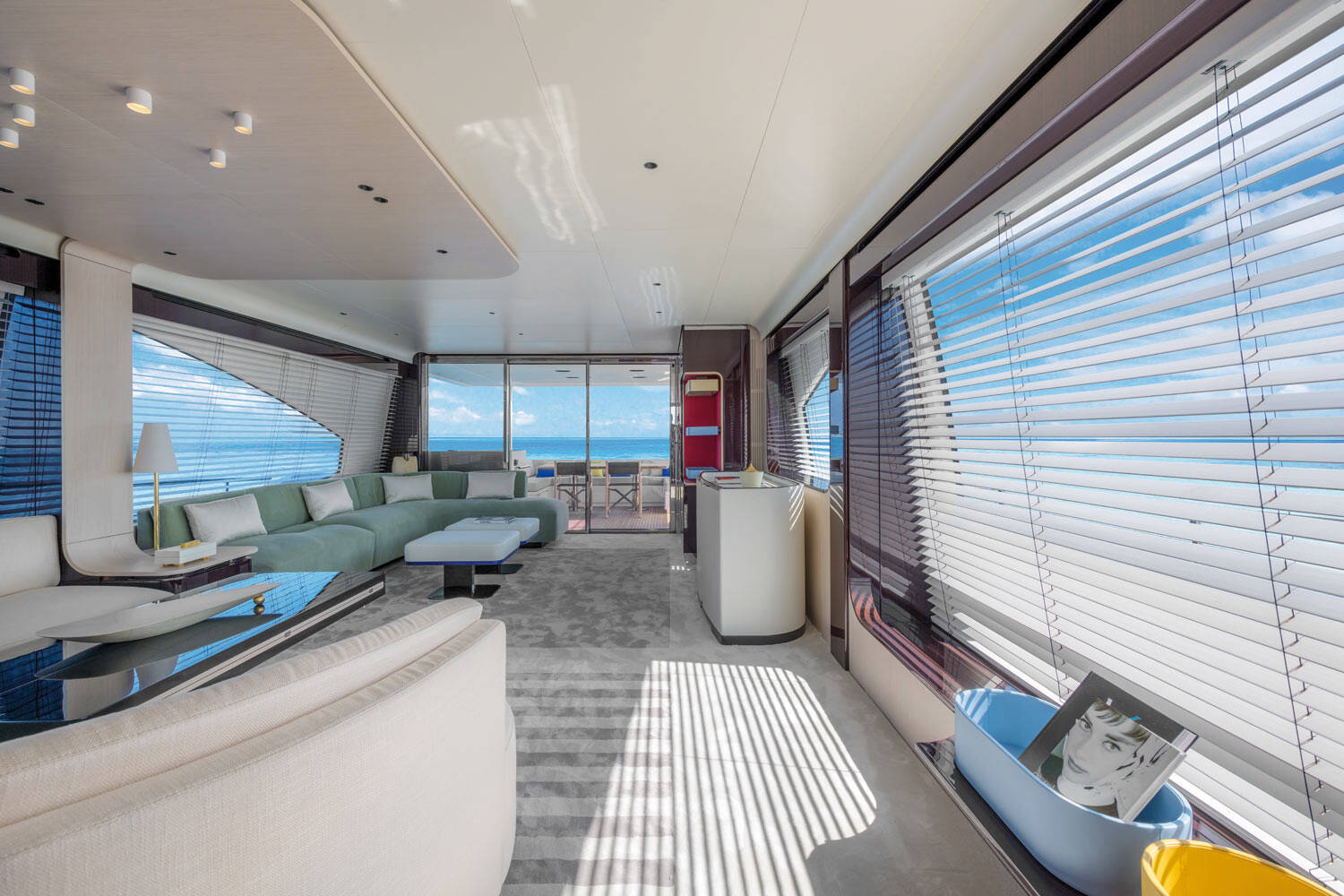

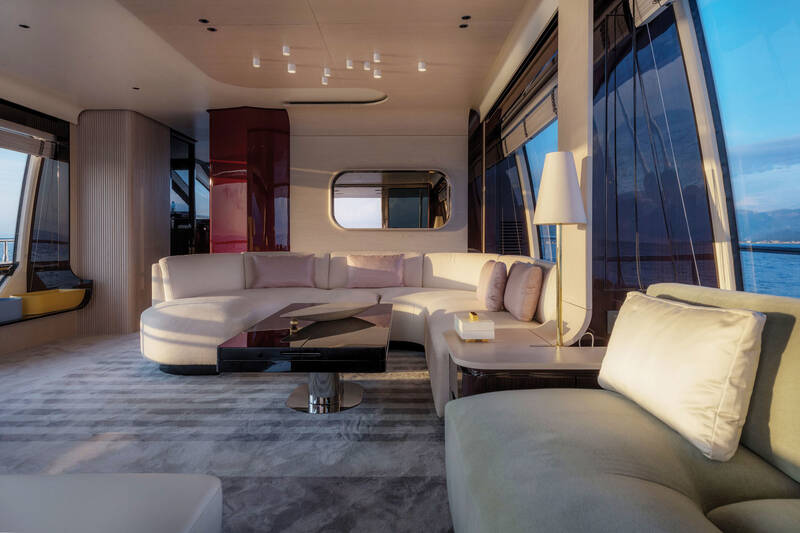

Saloon / Dining room
- It is composed of:
- One 5-seater sofa, starboard side
- 2-seater sofa, placed transversally aft of the dining table
- Table
- Carpet floor in the saloon area
- Ceiling-mounted recessed spotlights with dimmer and LED technology
- Lighting with dedicated spotlights in dining area
- Sockets
- TV lift system, port side
- 40" TV
- Two ceiling-mounted recessed speakers

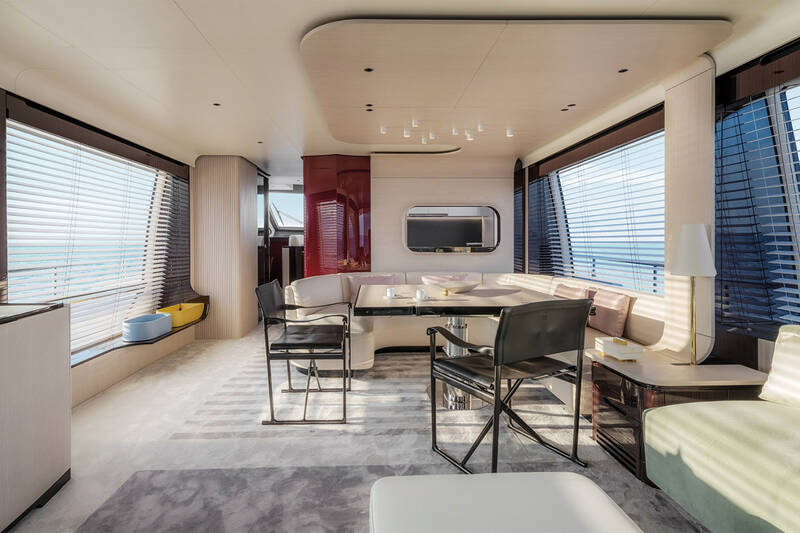

- Dining area with full-height panoramic window on port and starboard side
- Dining table
- Eight chairs
- Side venetian blinds
- Saloon door curtain in fabric
- Storage cabinet on port side
- Column storage cabinet, at boat entrance, port side
- Lacquered and wood ceiling
- Serving hatch with electrically controlled closure panel and "bronze mirror" finishing

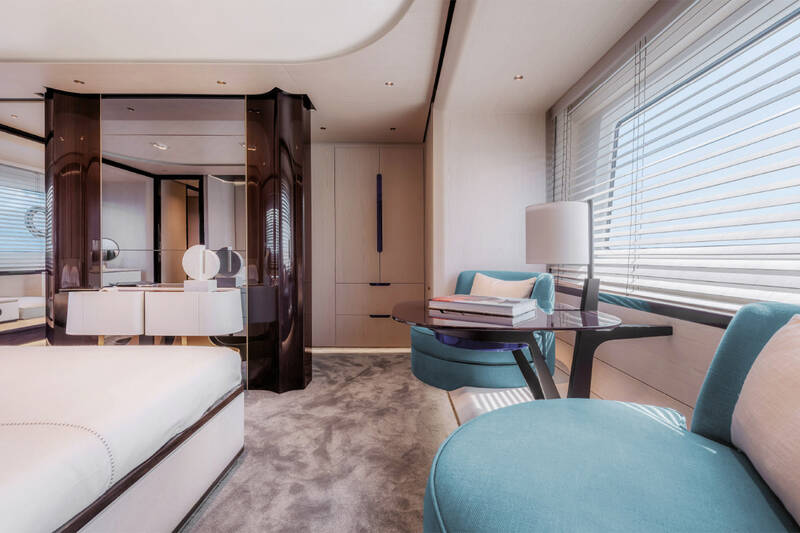

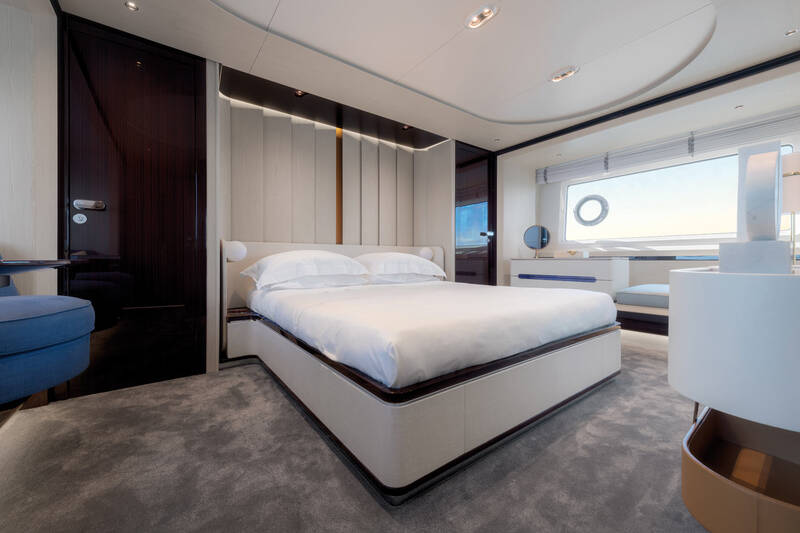

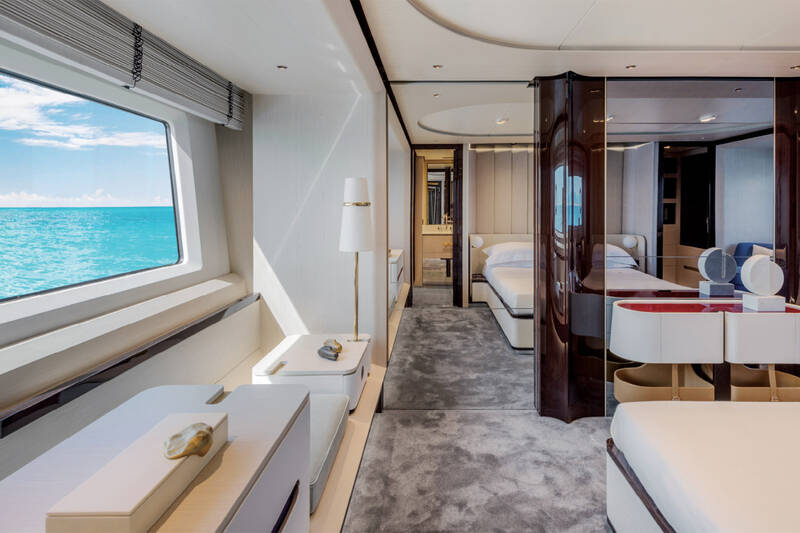

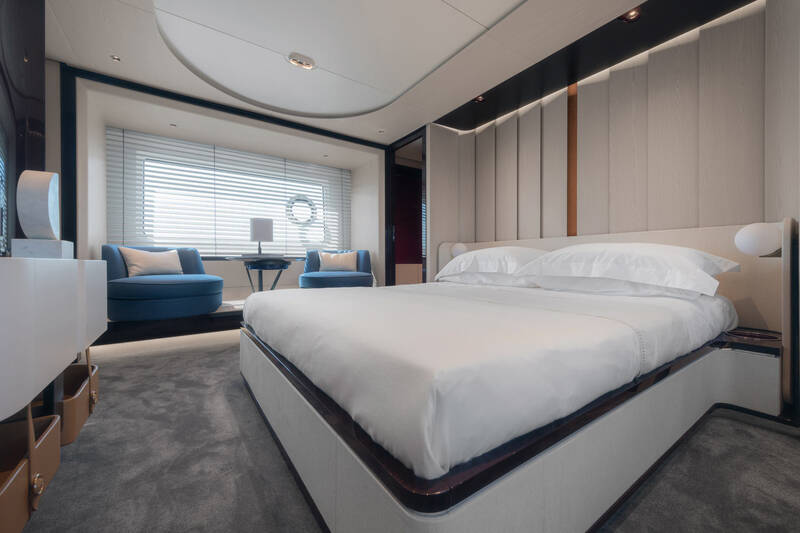

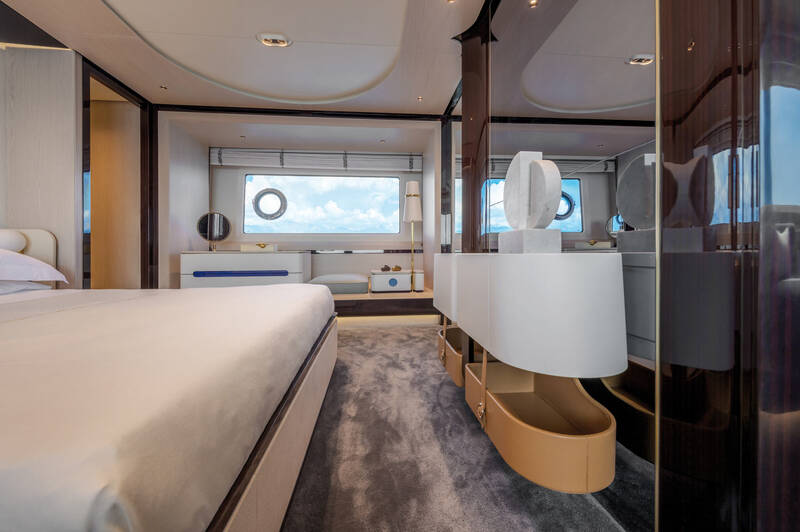

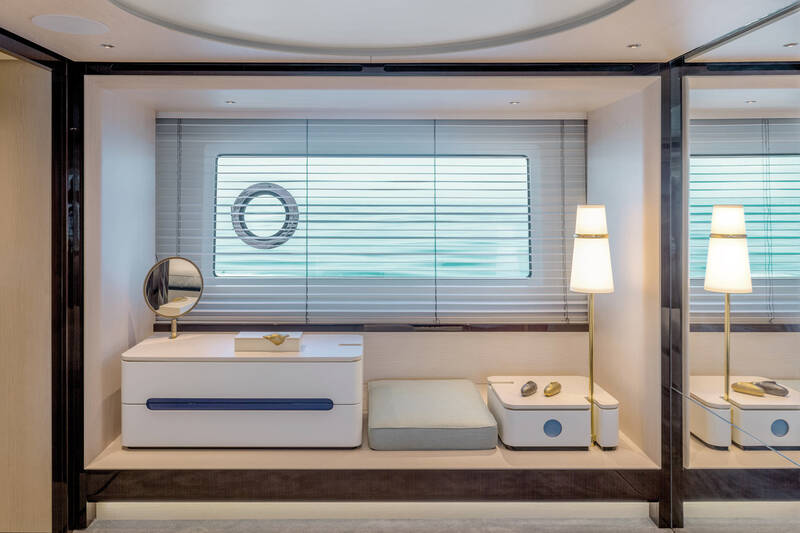

Owner’s cabin
- The full-beam owner's cabin is composed of:
- Side entry to cabin via small corridor
- Walk-in wardrobe with wardrobes equipped with hanger bar, internal lighting, chest of drawers, and full-height mirror
- Double bed at the center of the yacht, with foldaway bed base and locker
- Headboard
- Mattress, pillows and bedspread
- Two furnished bedside tables
- Two reading lights
- Fix side windows on each side of the cabin with built-in portlight
- Venetian blinds
- Chest of drawers, to the left of the owner's bed
- Two armchairs to the right of the owner's bed
- 40" TV
- Audio system with two speakers on ceiling
- Main lighting with dimmer, LED technology
- LED technology courtesy lighting
- Direct access to head, through passage on port side
- Full length mirror
- Wood-upholstered bulwarks
- Lacquered and wood ceiling
- Carpeted floor
- Sockets
- Wardrobe with drawers, located at cabin entrance
Owner's head
- Located aft of the owner's cabin.
- It is composed of:
- independent access from owner's cabin
- Shower compartment:
- - with glass access door
- - shower walls covered in quartzite (from serial no. 023)
- - removable grating in natural iroko
- - thermostatic mixer
- - hand-held and ceiling-mounted shower head
- - soap holders
- - watertight spotlights
- - suction grating
- Double washbasin with top in quartzite (from serial no. 023)
- Mirrors
- Storage drawer under the washbasin
- Side wall units with storage compartment
- Compartment separated by a sliding door on port side, for toilet
- Lighting with LED ceiling light above washbasins
- Direct lighting with cockpit ceiling-mounted recessed spotlights with LED technology
- One openable portlight
- Venetian blind
- Flooring in quartzite (from serial no. 023)
- Sockets
- Head accessories

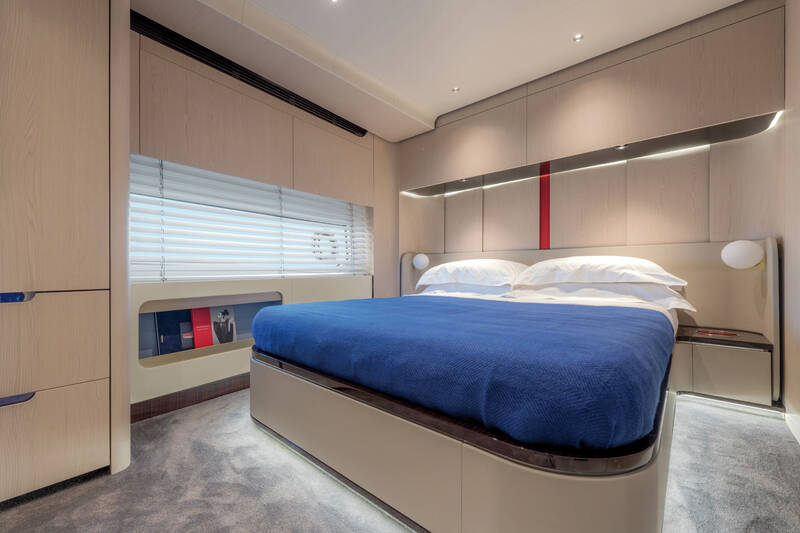

Starboard side guest cabin
- Longitudinal foldaway double bed with locker underneath
- Headboard
- Mattress, pillows and bedspread
- Two reading lights
- Two bedside tables with drawer
- Wardrobe with hanger bar and shelves
- Lacquered ceiling
- Fabric and wooden bulwark upholstery
- Panoramic fixed window with built-in portlight
- Venetian blind
- Carpeted floor
- LED technology lighting
- Headboard light
- Direct access to head
- 24" TV
- Audio system with two speakers on ceiling
- Sockets

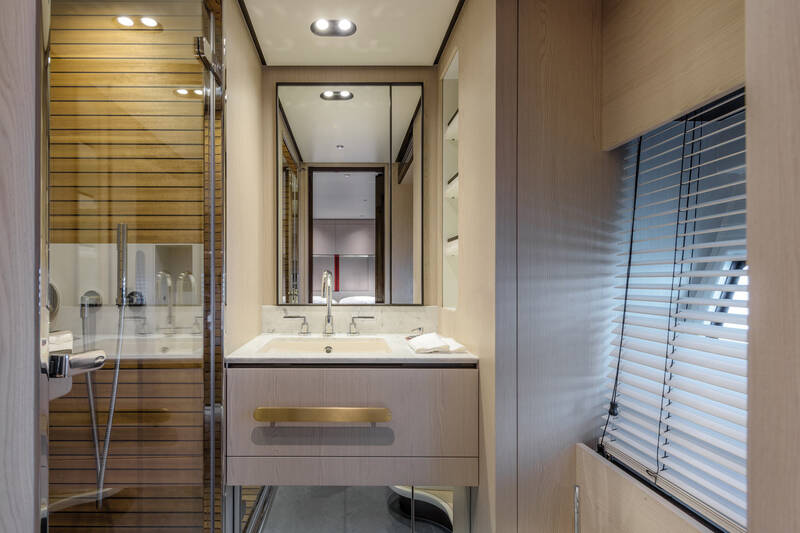

Starboard side guest head
- Washbasin with top in quartzite (from serial no. 023)
- Faucets
- Mirrored panels above washbasin
- Toilet
- Shower enclosure with:
- - glass door
- - grating in natural iroko
- - thermostatic mixer
- - hand-held shower head
- - recessed ceiling-mounted shower head
- - soap holder
- LED lighting
- One openable round portlight
- Venetian blind
- Iroko flooring
- Head air extraction system
- Head accessories
- Socket

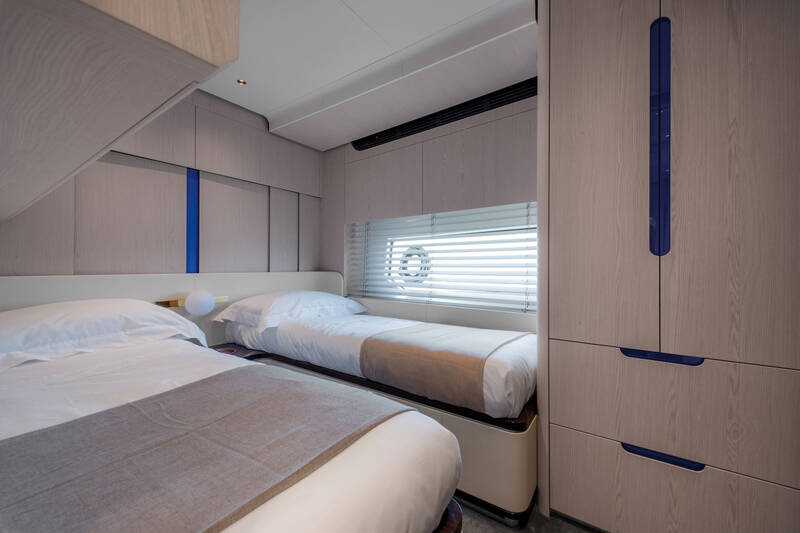

Port side guest cabin
- Two fixed single beds
- Mattresses, pillows, bedspreads
- Two reading lights
- One bedside table with drawer
- Wardrobe with hanger bar and shelves
- Wall units on the bulwark
- Lacquered ceilings
- Fabric and wooden bulwark upholstery
- Panoramic fixed window with built-in portlight Venetian blind
- Carpeted floor
- LED technology lighting
- Headboard light
- Direct access to head
- 24" TV
- Audio system with speakers on ceiling
- Sockets
Port side guest head
- Washbasin with top in quartzite (from serial no. 023)
- Faucets
- Mirrored panels above washbasin
- Toilet
- Shower enclosure with:
- - glass door
- - grating in natural iroko
- - thermostatic mixer
- - hand-held shower head
- - recessed ceiling-mounted shower head
- - soap holders
- LED lighting
- One openable round portlight
- Venetian blind
- Iroko flooring
- Head air extraction system
- Head accessories
- Socket

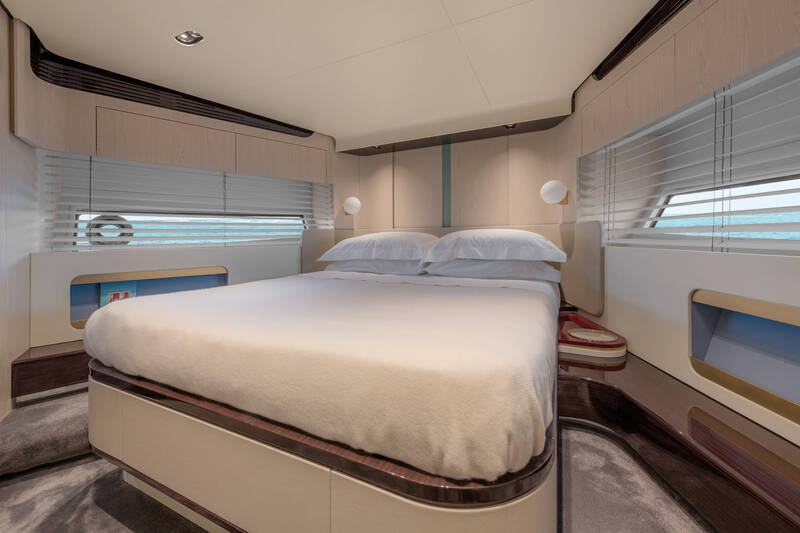

VIP cabin
- Located in the fore area of the lower deck, it is composed of:
- Double bed at the center of the yacht, with foldaway bed base and locker below
- Headboard
- Mattress, pillows and bedspread
- Two reading lights
- Wardrobe on starboard side with hanger bar, internal lighting, and chest of drawers
- Two wall units with storage above side panoramic windows
- Lighting with recessed LED spotlights
- Two wall lights on headboard
- Two fixed panoramic windows
- Two openable round portlights built-in the panoramic windows
- Wooden Venetian blinds
- Lacquered ceiling
- Fabric and wooden bulwark upholstery
- Carpeted floor
- 32" TV
- Audio system with two speakers on ceiling
- Sockets
- Direct access to head
VIP head
- Washbasin with top and riser in quartzite (from serial no. 023)
- Faucets
- Cupboards above washbasin with mirror doors
- Toilet
- Shower enclosure with:
- - glass door
- - removable grating in iroko
- - thermostatic mixer
- - hand-held shower head
- - recessed ceiling-mounted shower head
- - soap holder
- - watertight spotlight
- LED lighting
- One openable round portlight
- Venetian blind
- Iroko flooring
- Head air extraction system
- Head accessories
- Socket
Crew room
Crew area
- The crew area is accessible through a side door located on port side walk around. The crew area is divided into:
- Commander's cabin on starboard side, with single bed
- Crew cabin on starboard side, fore, with single bed and possibility of adding a second bed
- Both cabins have:
- Mattress, pillows and bedspread
- Wardrobe
- Laminated floor
- LED lighting
- Socket
- Air conditioning system control panel
- The area shared by the two cabins includes:
- Dinette
- 24" TV
- Audio system with two speakers on ceiling
- Storage compartment
- Storage wall units
Crew head
- The crew area is equipped with head with shower. It is composed of:
- One washbasin
- One faucet
- Wall unit with mirror
- WC
- Shower enclosure with:
- - grating
- - shower head with flexible pipe
- - LED lighting
- LED technology lighting
- Socket
- Head accessories
Electric system
Main characteristics
- Shore-powered power supply
- DC electric panel: Installed on fore bulkhead of the engine room
- AC electric panel: Installed on fore bulkhead of the engine room
- AUXILIARY electric panels: Installed in the lobby
- Emergency control panel: Installed in the wheelhouse
- Battery cut-out/emergency/fire extinguishing system control panel: located in the cockpit
- Onboard voltages:
- - 230 V - 50 Hz AC
- - 24 V DC from battery set
- - 12 V DC from battery set and AC/DC voltage reducer
Generator
- Two single phase generators 20 kW / 230
- V AC - 50 Hz for EU system
- Soundproofing box
- Remote start up
Shore power sockets
- Two EU sockets 3P 50 A
- The AC power sources terminate on the main electric panel in the engine room, equipped with voltmeter and ammeter for the 230 V network. The power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches
Batteries
- Services: twelve, 90 Ah - 12 V DC
- Engines: six 90 Ah - 12 V DC
- Generator: one 90 Ah - 12 V DC
- Service battery charger / service backup (OPT): two Mastervolt 100 Ah - 24 V
- Engine start-up battery charger: one
- Mastervolt 30 Ah - 24 V
- Genset start up battery charger: one
- Mastervolt 10 Ah - 12 V
Lights and sockets
- 230 V AC sockets for main utility power supply, EU type
- USB sockets
- Internal lighting: 24 V LED-type with dimmer (saloon + owner 50 Hz) (saloon + owner + VIP + guests 60 Hz)
- External lighting: 24 V LED-type (dimmer OPT)
Monitoring and supervision system:
- Raymarine monitoring and supervision system BRONZE Package (STD version), it includes essentially:
- - Flybridge: 2 monitors mod. Axiom 16 Pro, 16”; p70 Rs (automatic pilot control)
- - Wheelhouse: 2 monitors mod. Axiom 16 Pro, 16”; 1 monitor Axiom 7, 7”
- - Crew: 1 monitor mod. Axiom 9, 9”
- - Radar, quantum model
Electronic navigation instruments
- For STD equipment, see “flybridge dashboard equipment” and “internal dashboard equipment” paragraphs
- For a detailed list of alternative/additional equipment available, please refer to the Optionals price list
Bilge system
- Two 24 V electric pumps, automatically controlled (level switch) located in the engine room
- Two 24 V electric pumps, automatically controlled (level switch) located in the crew zone bilges
- One 24 V electric pump, automatically controlled (level switch) located in the lobby
- Two manual pumps connected in the engine room bilge and with controls in the cockpit with crossover valve
- One manual pump located in the crew zone with crossover valve
- One manual pump located in the double guest cabin, with suction forward of the tank
- Pumps operation indicator and high level alarms in the monitoring system
- Engine bilge emergency emptying through outlet connected to the crossover valve of the sea water cooling circuit of each engine
- Pumps operation indicator and high level alarms in the monitoring system
Fire extinguishing system
- FM200 42.50 kg extinguisher gas cylinder, with mechanical handle activation and remote activation, in the engine room
- Emergency engine/generator switch-off control in cockpit
- 24 V pump in engine room with delivery connected to two emergency hoses, one in the cockpit and one in the bow mooring area
- Alarm relay panel in crew cabin
Fuel system
- 7,200 liter GRP structural tank located on the keel (from engine room to owner's cabin)
- Seven inspection hatches, one of which provided with vents and one, located in the engine room, provided with suction lift for engines and generators
- Two refueling plugs, located on port and starboard walk arounds, midships
- Six vents connected on the centralized outlets, midships
- Two continuous-reading level sensors, located one in the crew area and one in the owner's area, connected with the Raymarine supervision system
- One battery-operated electronic diesel level sensor located in the hatch in the crew area
- Diesel check solenoid valves for engines and generators (with ignition switched on) with manual bypass
- Two RACOR double separator/settling filters (one per engine)
- Two RACOR single separator/settling filters (one per generator)
Fresh water system
- One 1,100-liter tank, made in AISI 316 stainless steel, located under the dunnage near the VIP cabin
- One 24 V water pressure pump, located in the engine room, flow rate 55 l/min
- Resistive level indicator connected to the supervision system
- Water level sensor with pressure pump blocking if there is no water
- Two 80-liter water heater with 1200 W resistor, located under the dunnage near the VIP cabin
- System sectioning via valves and manifolds
- Hot and cold water lines in the heads, galley cockpit, and flybridge washbasin
- Toilet flushing with fresh water
- Embarking point on deck walk around, starboard side
- Shore sockets located under the second step of the platform access ladder
- Provision for 180 l/h desalination system
Black water system
- TECMA toilet with macerator built into the base
- One 900-liter tank
- TECMA control panels with an indicator of the operating status, system drainage interlocking indicator if the tank is full
- Level gage integrated in the boat monitoring system
- Water level sensor
- Tank emptying via suction opening on walk around, port side
- Underwater discharge through dedicated line, with 24 V pump located in the engine room
- Two vents connected to centralized bulwark outlets
- Anti-odor filters located upstream of the bulwark vents
Gray water system
- One 900-liter tank
- Level gage and alarm integrated in the boat monitoring system
- Shower drainage pipes with drain-tap and removable filter to facilitate cleaning
- Water level sensor
- Water discharge through 24 V pump located in the engine room
- Five 10 liter grey water collection trays in cabin area
- Five 24 V pumps for emptying the trays
- Two vents connected to centralized bulwark outlets
- Anti-odor filters located upstream of the bulwark vents
Seawater system
- Engine cooling system: includes seawater intakes with filter and valve (one per engine)
- Generator cooling system: includes two seawater intakes with filter and valve (one per generator)
- Seawater intake for optional desalination system with filter and valve
Ventilation / extraction
- Engine room air intake through two axial fans, 2800 rpm, 24 V, 0.4 kW each
- Engine room air extraction through four axial fans, 2800 rpm, 24 V, 0.4 kW each
- Manual and automatic operation with relay on monitoring system and engine room temperature measuring
- Two water separators on intakes (one per part)
Other systems
- Steering system: hydraulic and servoassisted
- Electric interceptor system
- Smoke and heat sensors for engine room zone
- Engine gas exhaust system:
- - "damp" gas exhaust with cooling water injection, with thermally insulated stainless steel manifolds and GRP structural mufflers
- - submerged gas exhaust vent windows and minimum bypass on hull sides
- - acoustic and visual alarm for high exhaust gas temperature on the monitoring system
- Audio/video system with:
- - TV in main spaces and cabins: Saloon, owner, VIP, guest with double bed and guest with twin beds, crew dinette
- - Fusion audio system in main internal spaces: Saloon, owner, VIP, guest with double bed and guest with twin beds, crew dinette
- - Audio system in main external spaces: cockpit, flybridge, bow
Air conditioning system
- One refrigerating unit with inverter, 144,000 BTU/h located in the engine room
- One seawater pump with relevant intake and filter
- The system is composed of 15 fan coils arranged as follows:
- - one in crew dinette
- - one in crew cabin
- - one in commander's cabin
- - two in owner's cabin
- - one in guest cabin with double bed
- - one in guest cabin with single beds
- - one in VIP cabin
- - four in saloon
- - one in galley
- - two in wheelhouse
- Each area has its own independent control panel
Equipment
- One telescopic boat hook
- Six 16 m mooring lines
- Fender lines: 24 m
- One aluminum telescopic ladder
- One anchor chain stopper
- Eight fenders
- eight black fender covers
- One Owner's manual
- One AZIMUT document folder
- One wooden boat model
- One AZIMUT warranty service booklet
- One set of stainless steel cutlery
- One set of porcelain plates
- One set of glasses
- One set of stainless steel pots and pans
- Six sets of towels with logo
- Four floating keyrings
- Two bags with logo for storing the manuals
- One remote control holder with logo
- Two shower pipe storage bag
- One stainless steel scheduled maintenance kit
- One pin wrench for locking stainless steel pins
